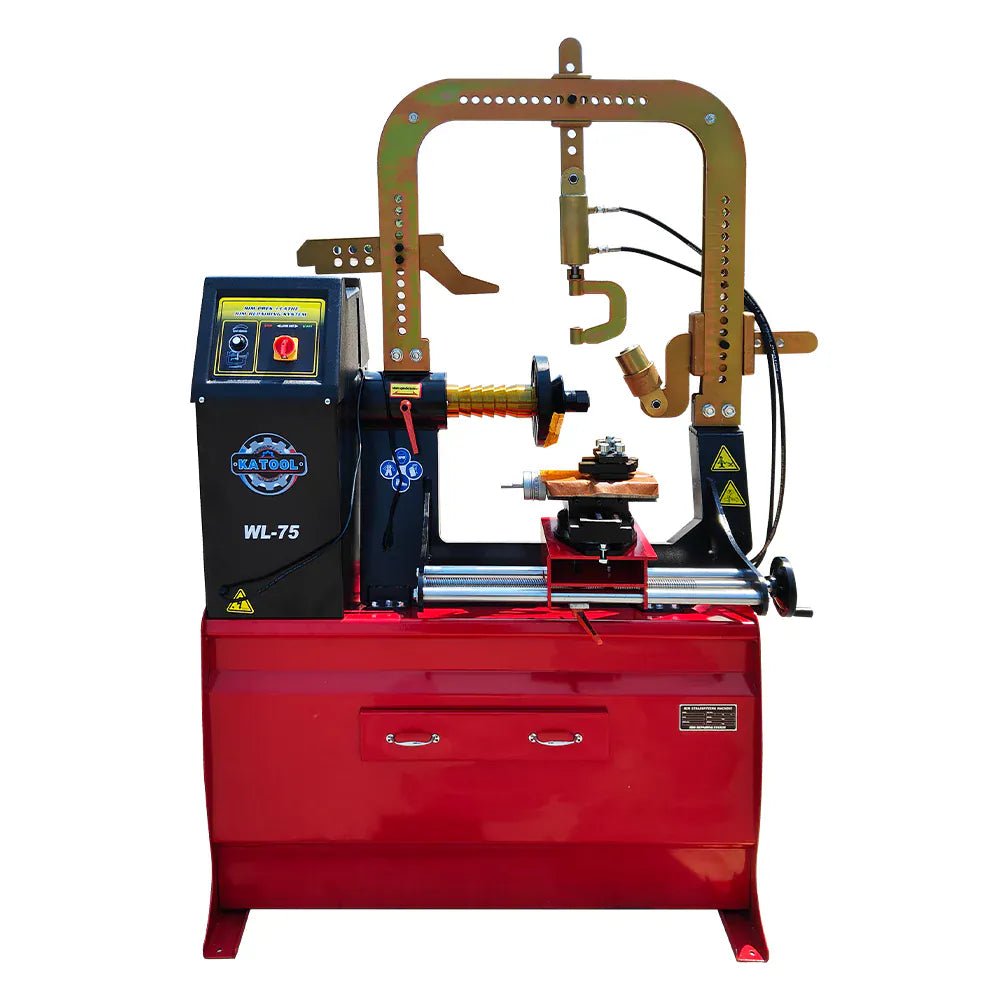

Katool KT-WL75 Rim Straightener and Wheel Lathe — Hub Repair Machine

Description

The Katool KT-WL75 is a combination rim straightener and wheel lathe built for tire shops, wheel-repair businesses, and automotive service facilities bringing wheel repair in-house. The control panel labels the system “Rim Press + Lathe” — one machine handles bent-rim straightening on the hydraulic press side and turning / cosmetic refinishing on the lathe side, both mounted to a single bed.

Frame components are built from Q235 and Q245 carbon steel, grades commonly specified for shop equipment that has to absorb cyclical hydraulic loads. The clamping yoke adjusts in both vertical and horizontal directions so a single machine accommodates a range of wheel diameters and widths. The cutting-tool platform slides along the bed and locks into position when refinishing operations are needed.

Power is supplied at 220V. The unit ships with a varied accessory set of clamping and cutting heads to match different rim profiles. Katool covers the machine with a 1-year parts warranty; intended use is professional shop applications, not home or hobby.

Features

• Combined rim straightener and wheel lathe — repair and refinish on one machine

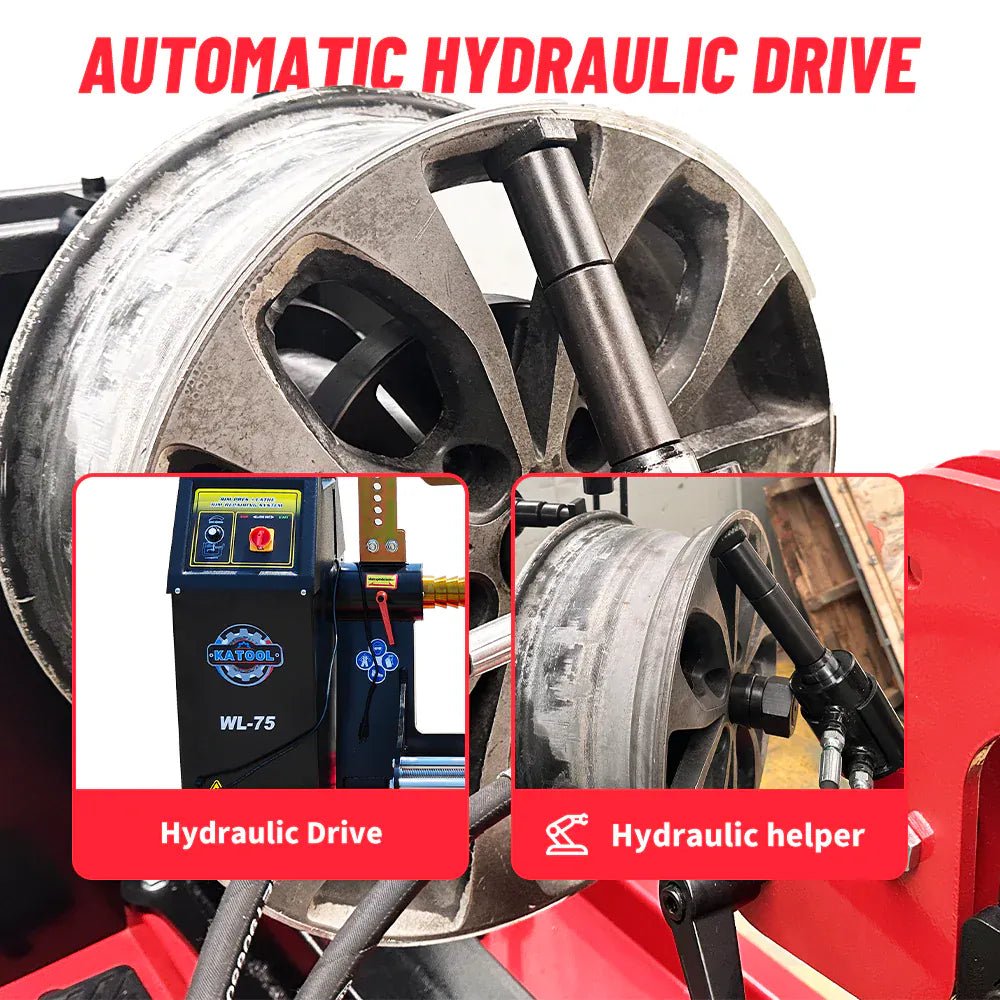

• Hydraulic drive with hydraulic-helper assist for straightening bent rim flanges

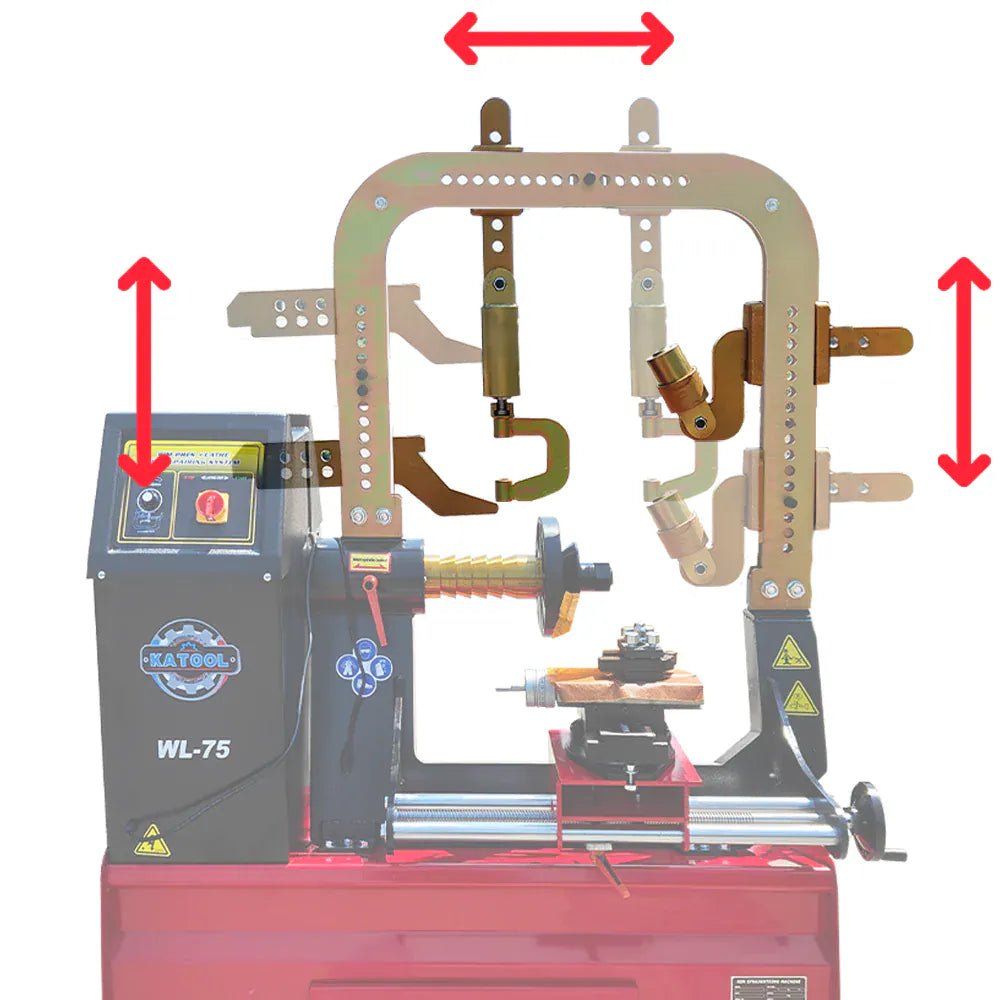

• Adjustable clamping yoke — vertical and horizontal travel for varying wheel diameters and widths

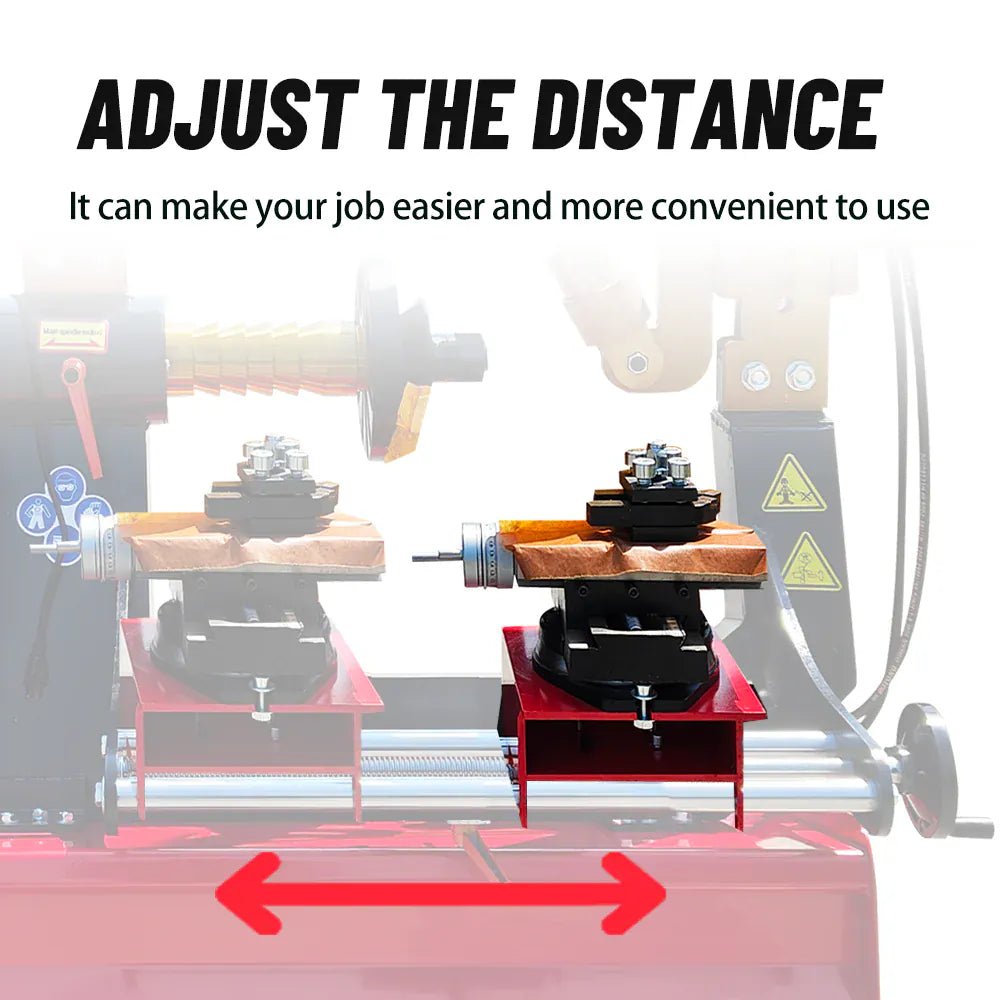

• Cutting-tool platform slides along the bed and locks for lathe operations
• Q235 / Q245 carbon-steel construction

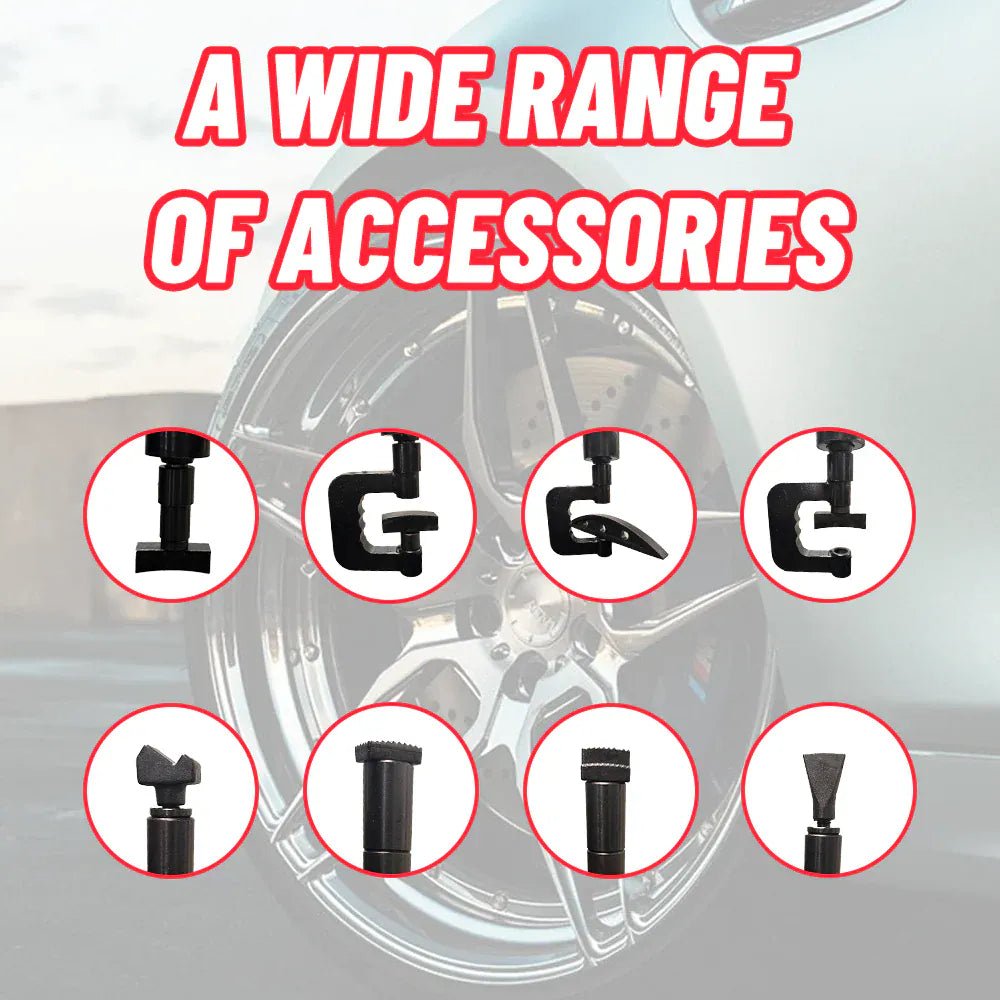

• Accessory set of clamping and cutting heads for varied rim profiles
• 220V power supply
• 1-year parts warranty

Specifications

Shipping & Logistics

The KT-WL75 ships via freight on a pallet.

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
