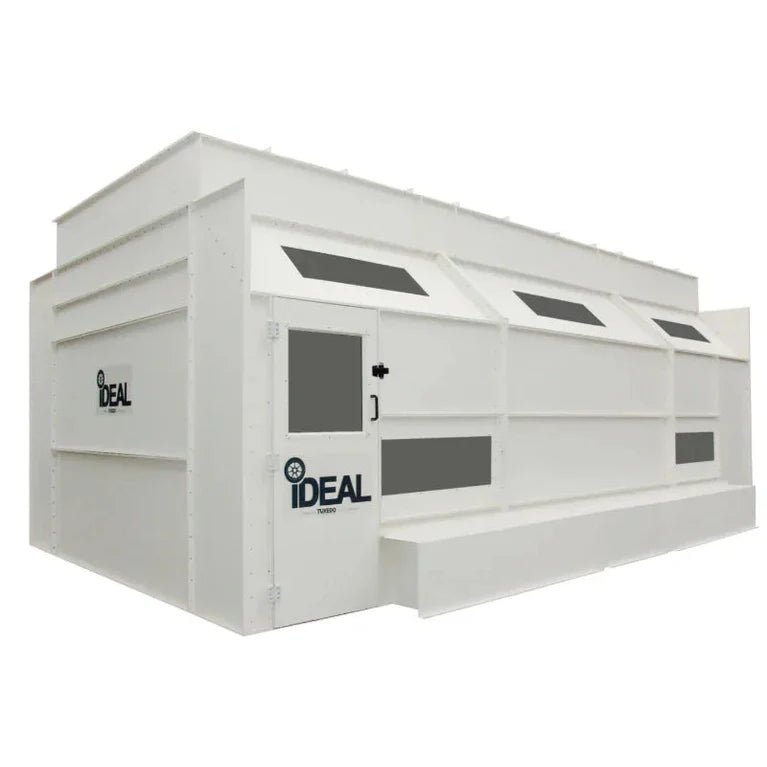

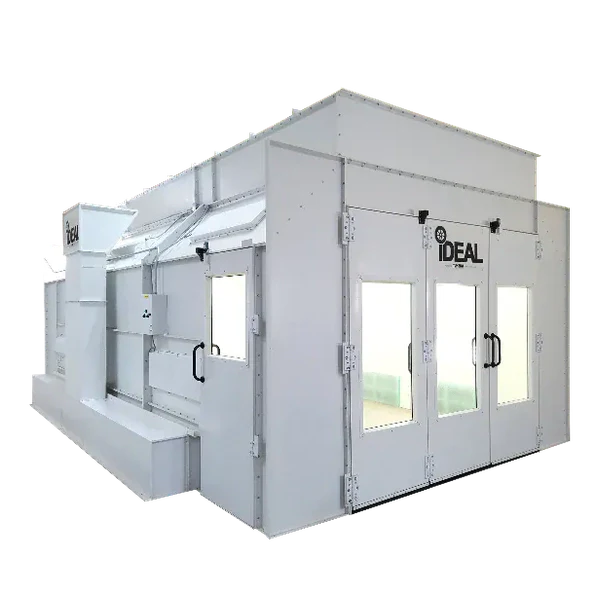

iDEAL PSB-SDD26B-AK SIDE DOWN DRAFT PAINT SPRAY BOOTH

Overview

The iDEAL PSB-SDD26B-AK Side Down Draft Paint Spray Booth is built for shops that want stronger airflow control and cleaner finishes without stepping into the cost and complexity of a full downdraft pit system. With a high-performance side downdraft airflow design and a spacious commercial interior, this booth helps move overspray away from the work surface quickly—keeping paint particles from settling back onto freshly sprayed panels.

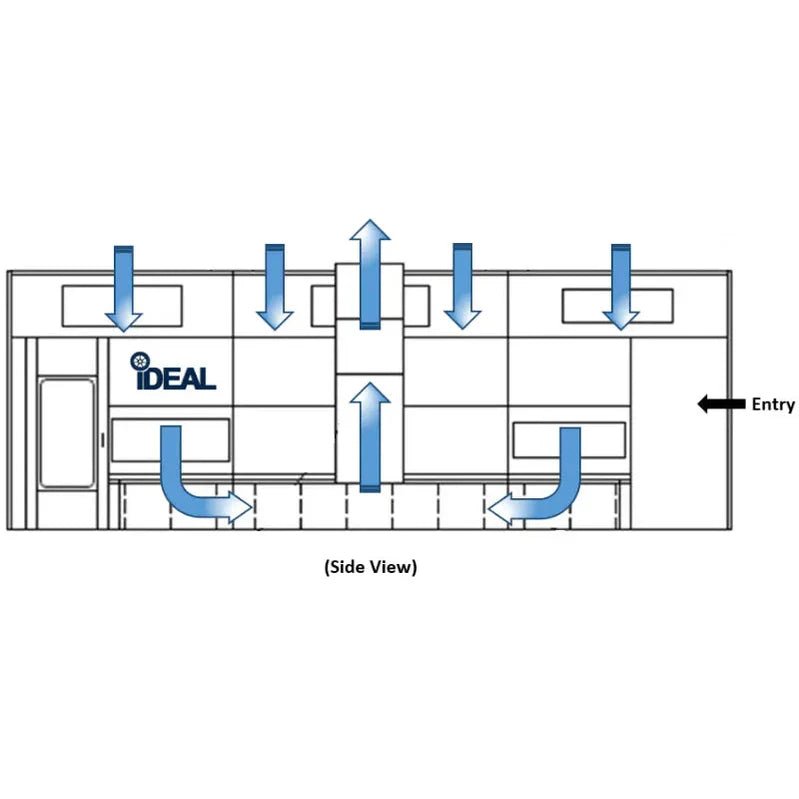

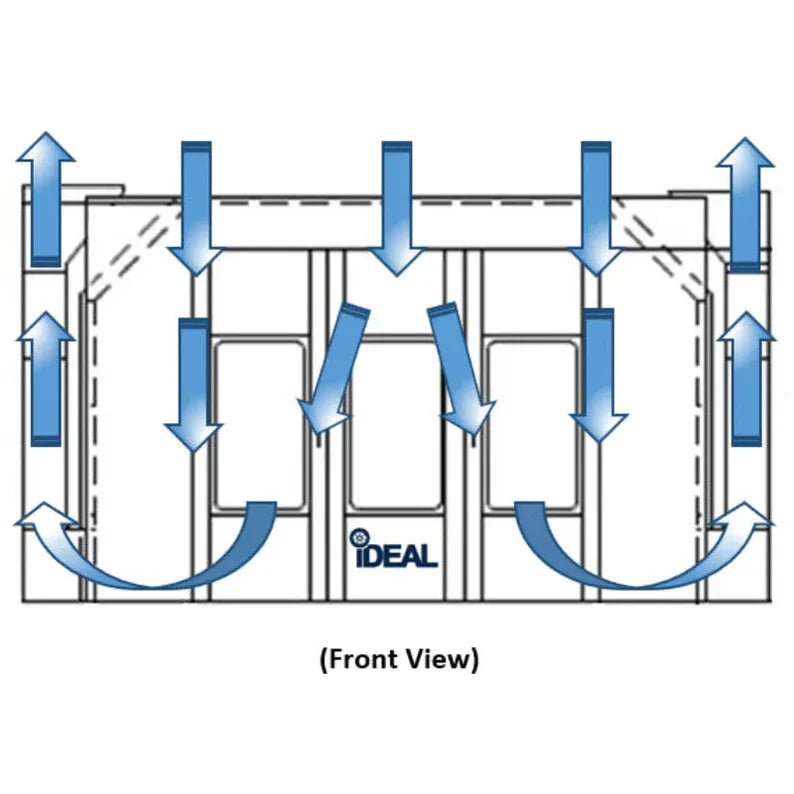

Air enters through filtered intake areas, travels across the vehicle or workpiece, and is pulled downward and outward through side exhaust filtration before being discharged through twin exhaust fans. The result is a controlled, ventilated spray environment that supports automotive refinishing, industrial coatings, and wood finishing applications—while helping your team produce more consistent results, job after job.

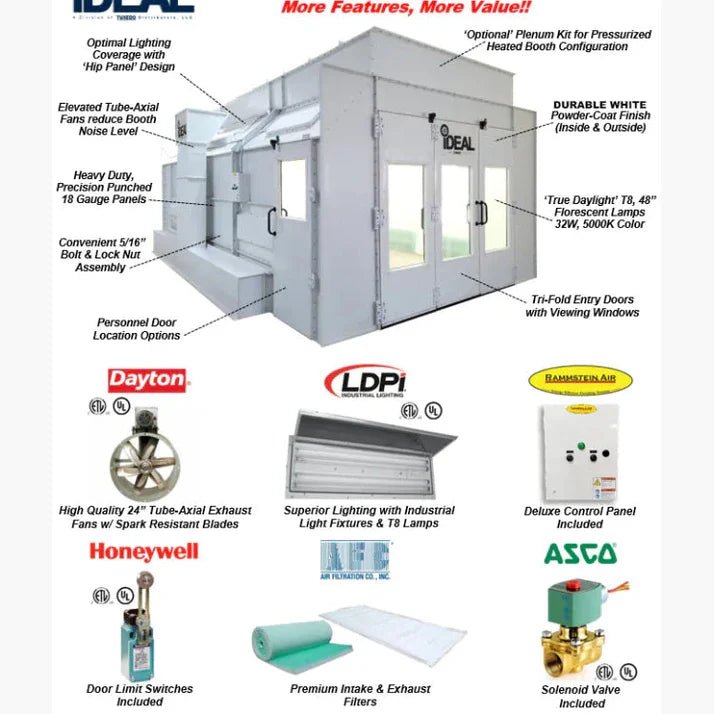

Key Highlights

• High Airflow Performance: Powerful ventilation delivering 14,000 CFM @ 0.5″ static pressure for aggressive overspray capture.
• Side Down Draft Design: Airflow moves downward and toward side exhaust areas to help keep contaminants away from the paint surface.
• Commercial Hip Panel Lighting Layout: Improves light coverage along vehicle sides and work surfaces.
• Large Work Area: Spacious interior designed to comfortably accommodate vehicles, equipment, and large components.
• Durable Panel Construction: Heavy-duty 18-gauge precision punched panels for structural strength and long-term durability.
• Fast Availability: Typically ships within 48 hours to keep shop upgrades on schedule.

Airflow & Ventilation System

Airflow performance is where the PSB-SDD26B-AK truly stands out. Filtered intake air moves smoothly through the booth while overspray and vapors are captured and directed downward toward side exhaust chambers. Twin exhaust fans provide strong, balanced ventilation, ensuring a steady airflow pattern that helps maintain finish quality throughout the spray process.

• Airflow: 14,000 CFM @ 0.5″ static pressure

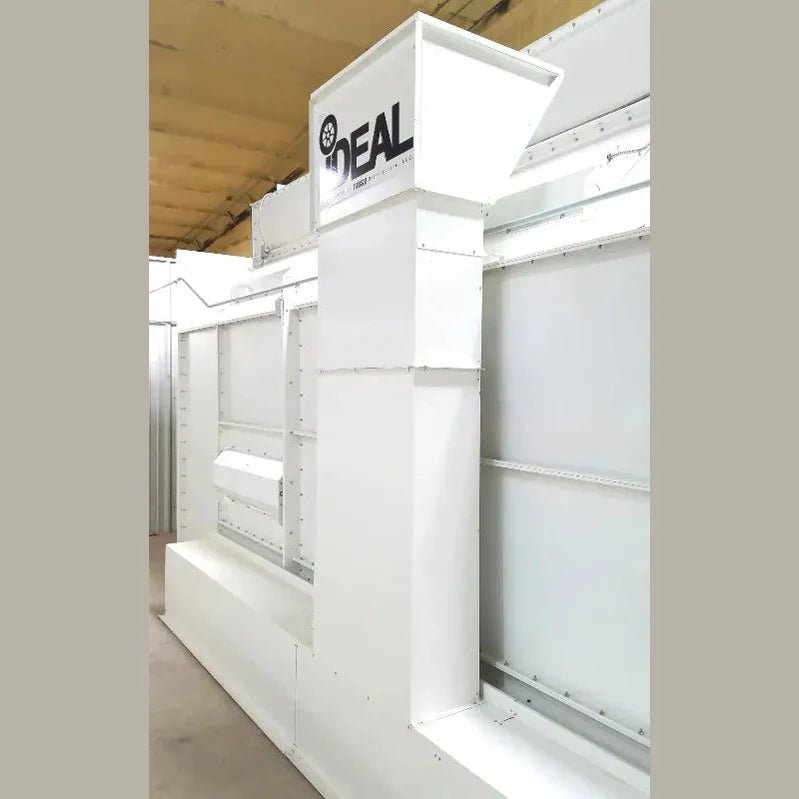

• Fans: (2) UL Listed Dayton 24″ tube-axial exhaust fans
• Fan Blades: Spark-resistant construction
• Filters: Premium AFC intake & exhaust filtration
• Included: Manometer, solenoid valve, hardware & sealant

Lighting & Visibility

Paint finish quality depends on what you can see while spraying. This booth features a robust horizontal lighting layout designed to provide even illumination across the vehicle body and work surfaces. With daylight-balanced lamps and wide coverage, it’s easier to evaluate paint texture, metallic laydown, and color consistency before the job leaves the booth.

• (10) LDPI Industrial T-8 horizontal light fixtures (4-lamp each)
• (40) GE T8 fluorescent lamps
• 32W, 5000K “daylight” color temperature for accurate finish inspection
• 4′ lamp length for broad lighting coverage

Doors, Controls & Safety

This booth includes practical features designed for everyday shop operation—from wide-access tri-fold entry doors to integrated shutoff switches that enhance operator safety. The included deluxe control panel keeps booth operation simple while maintaining consistent airflow and lighting control.

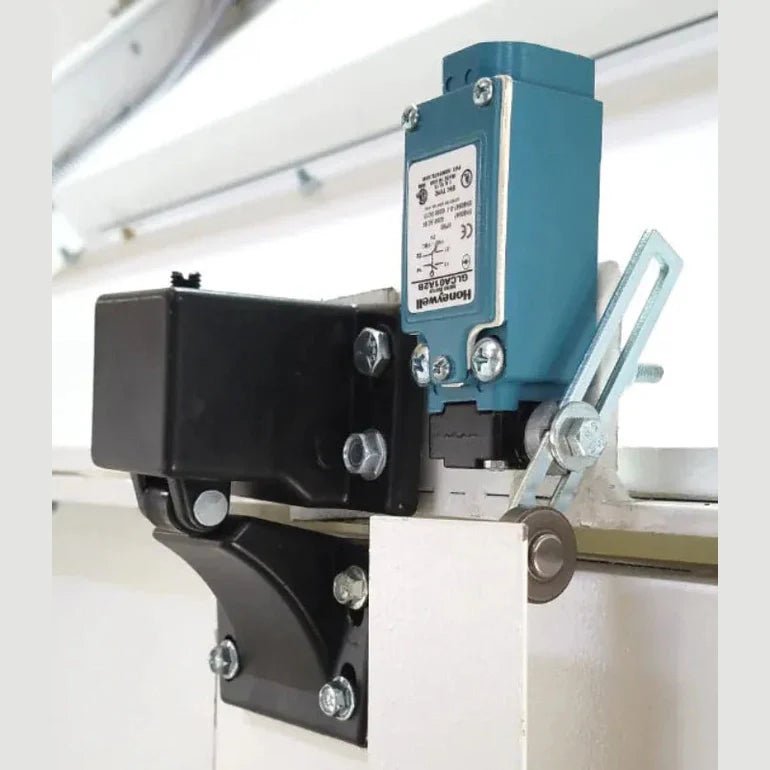

• Tri-fold entry doors with viewing windows and shutoff switch
• Personnel access door with viewing window and shutoff switch

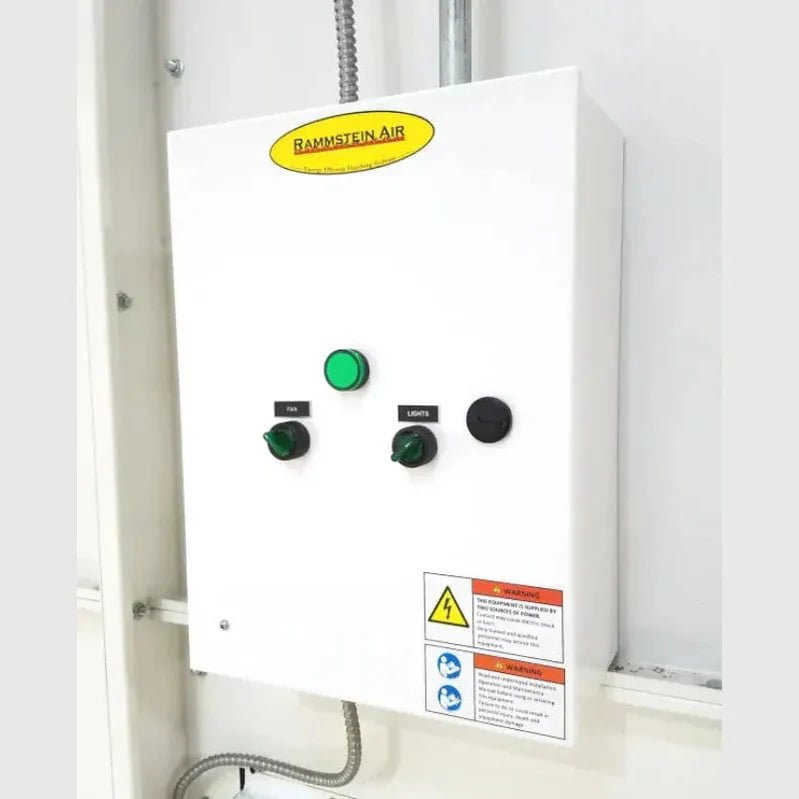

• Deluxe control panel included
• Meets NFPA 33 standards

Construction & Finish

• 18-gauge precision punched steel panels for strength and alignment
• 5/16″ bolt & nut assembly for efficient installation
• White powder coat finish inside and outside for improved visibility
• Commercial-grade hip panel design for lighting efficiency and structure

Dimensions

• Inside Dimensions: 26′ L × 14′ W × 9’–3″ H
• Outside Dimensions: 26’–4″ L × 17’–8″ W × 9’–5″ H

Electrical & Motor Specs

• Fan Configuration: (2) 24″ Tube Axial Exhaust Fans
• Motor Rating: NEMA rated 3HP motors
• Standard Power: 3 Phase, 230/460VAC, 60Hz
• Optional: Single Phase electrical configuration available

Options & Upgrades

• Single Phase Electrical Configuration (1PH)
• 8′ Exhaust Extension Kit (13″ diameter)
• Side Personnel Door Kit
• 48″ Solid Extension Kit
• Drive-Thru Door Kit
• Gas Fired Booth Heater (3 Phase) Plenum required
• Gas Fired Booth Heater (1 Phase) Plenum required
• Electric Booth Heater (3 Phase)
• Electric Booth Heater (1 Phase)

At a Glance (Specifications)

• Model: PSB-SDD26B-AK
• Booth Type: Side Down Draft Paint Spray Booth
• CFM: 14,000 @ 0.5″ static pressure
• Inside Dimensions: 26′ L × 14′ W × 9’–3″ H
• Outside Dimensions: 26’–4″ L × 17’–8″ W × 9’–5″ H
• Fan / Motor: (2) 24″ Tube Axial Fans / 3HP / 3PH 230/460VAC 60Hz
• Lighting: (10) horizontal T-8 fixtures (4 lamps each), (40) 32W 5000K lamps included
• Standards: Meets NFPA 33

Bottom Line

The iDEAL PSB-SDD26B-AK is designed for shops that want stronger airflow control, excellent lighting coverage, and commercial-grade durability in a spacious spray environment. With powerful ventilation, quality filtration, and thoughtful construction throughout, it helps create the kind of controlled workspace where consistent, high-quality finishes become the standard—not the exception.
