iDEAL PSB-PMR1088-AK PAINT MIXING ROOM

Overview

The iDEAL PSB-PMR1088-AK Paint Mixing Room is built for the part of the job that can’t be “good enough.” Mixing and staging coatings demands clean air, bright light, and a controlled space that keeps vapors moving in the right direction—so your team can focus on accuracy, safety, and consistency.

This commercial-grade mixing room delivers a ventilated work area specifically engineered for safe paint mixing applications. Air enters through ceiling intake filters, travels across the room, then is drawn downward into a filtered exhaust plenum before discharging upward through the exhaust fan and ducting. It’s a straightforward, purpose-built solution that helps keep your mixing area organized, compliant, and comfortable to work in. Typically ships within 48 hours, so it’s an easy upgrade when you need it now—not months from now.

Key Highlights

• Dedicated, Ventilated Mixing Space: Designed to create a clean, controlled environment for paint mixing and material handling.
• Flexible Door Placement: Configure the room with the personnel door on the front or side to match your shop layout.
• Quiet-by-Design Layout: Fan and plenum are located outside the mixing room to help reduce decibel levels inside.
• Daylight-Accurate Lighting: 5000K lamps help you read labels, verify colorants, and keep your mix process consistent.
• Commercial-Grade Construction: Heavy-duty 18-gauge precision punched panels with a clean bolt-together assembly.
• Compliance Ready: Meets and/or exceeds applicable OSHA and NFPA 33 regulations.

Airflow & Filtration System

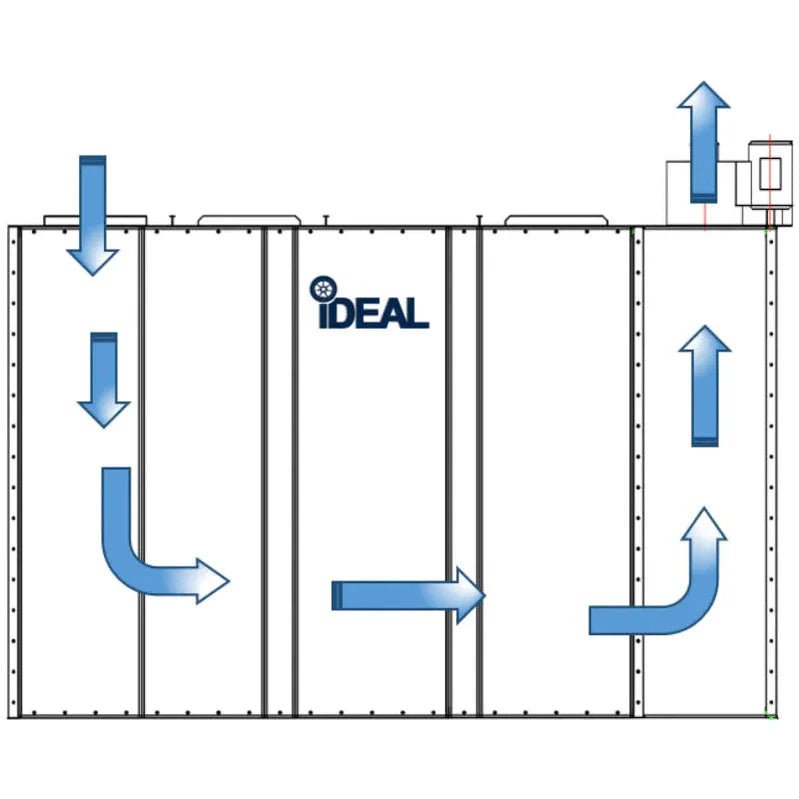

The PSB-PMR1088-AK is engineered to keep vapors and airborne particulates moving away from the operator and into filtration. Filtered air enters through the ceiling intake filters, moves through the room, then is pulled down into the filtered exhaust plenum and discharged upward through the fan and ducting. It’s a clean, controlled airflow pattern designed specifically for the realities of mixing and staging coatings.

• Airflow: 1,429 CFM @ 0.5″ static pressure
• Fan: UL Listed Dayton 12″ tube-axial exhaust fan with spark-resistant blades
• Filters: Premium AFC intake & exhaust filters
• Included: Manometer, sealant, and all assembly hardware

Lighting & Visibility

Mixing rooms live and die by visibility. Between toners, reducers, hardeners, and labels, you need lighting that’s bright, consistent, and serviceable. This room includes industrial fixtures with inside-access hinged glass doors and Class I / Division 2 rated lighting—built for environments where safety standards matter.

• (2) LDPI Industrial (Cls1 / Div 2) light fixtures — UL & ETL listed (Groups A, B, C & D)
• Inside-access hinged glass door for easier maintenance
• GE T8 fluorescent lamps: 48″, 32W, 5000K, ~2900 lumens each
• Lamps included: (8) T8, 32W, 5000K, 48″ length

Doors, Controls & Everyday Use

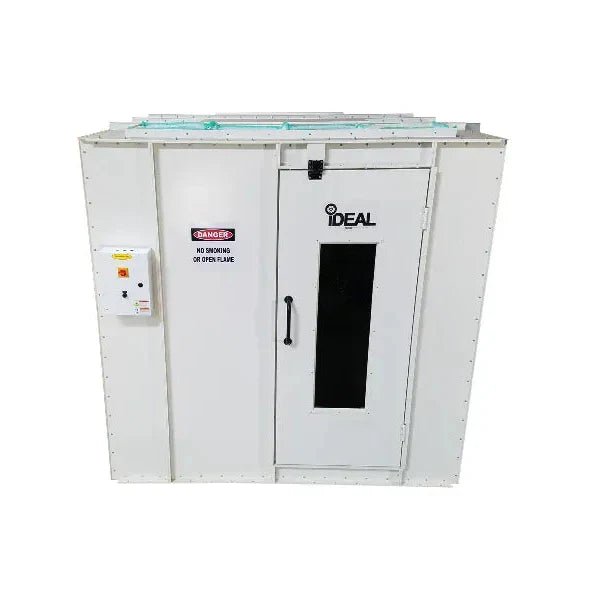

The PSB-PMR1088-AK comes ready to operate with a deluxe control panel and a pre-hung personnel door that makes entry and workflow simple. A viewing window gives quick visibility into the room without constantly opening the door—useful when the mixing area is active and you’re trying to keep the environment stable.

• Pre-hung 36″W personnel door with viewing window
• Optional door placement: front or side configuration
• Deluxe control panel included
• Easy to install, operate & maintain

Construction & Finish

• 18-gauge precision punched panels for a strong, clean-fitting structure
• 5/16″ bolt & serrated lock nut assembly for straightforward installation
• White powder coat finish (inside & outside) for better visibility and a professional look

Dimensions

• Inside Dimensions (Config A): 10′ L × 8′ W × 8′ H
• Inside Dimensions (Config B): 8′ L × 10′ W × 8′ H
• Outside Dimensions (Config A): 12’–6″ L × 8’–4″ W × 9’–4″ H
• Outside Dimensions (Config B): 8’–4″ L × 12’–6″ W × 9’–4″ H

Electrical & Motor Specs

• Fan / Motor: (1) 12″ Tube Axial Fan
• Motor: 1/2 HP, non-spark, UL listed, NEMA rated
• Standard Power: 3 Phase, 208–230/460VAC, 60Hz
• Optional: Single Phase (1PH) electrical configuration

Options & Upgrades

• Single Phase Electrical Configuration (1PH)

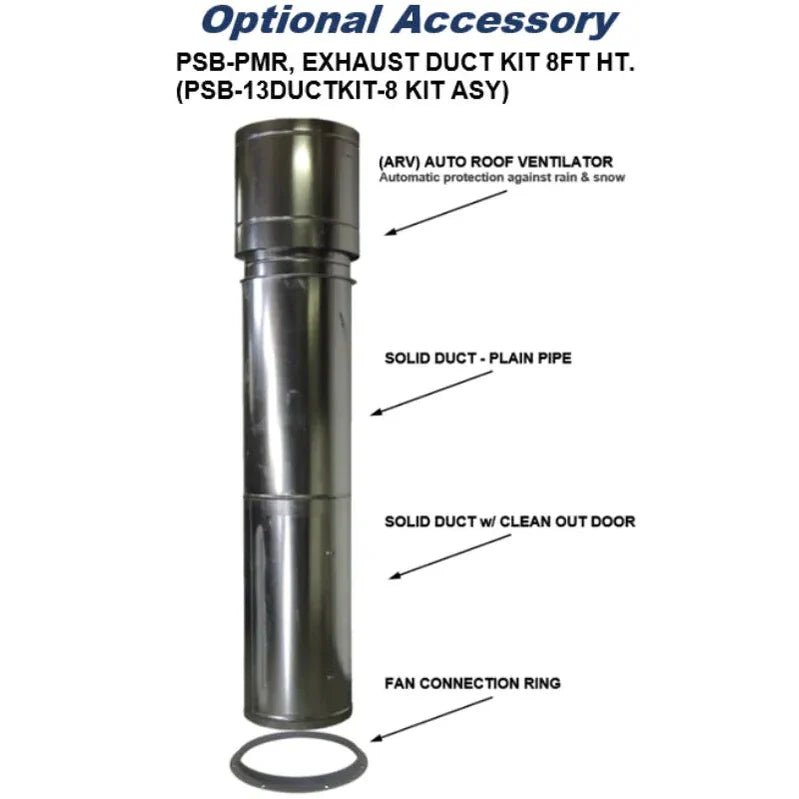

• 8′ Exhaust Duct Kit (13″ diameter) — PSB-13DUCTKIT-8 kit asy

At a Glance (Specifications)

• Model: PSB-PMR1088-AK
• Room Type: Paint Mixing Room
• CFM: 1,429 @ 0.5″ static pressure
• Fan / Motor: 12″ Tube Axial / 1/2 HP / 3PH 208–230/460VAC 60Hz
• Lighting: (2) 48″ T8 fixtures (4 bulbs each), Class I / Div 2 rated; (8) 32W 5000K lamps included
• Finish: White powder coat (inside & outside)
• Standards: Meets and/or exceeds applicable OSHA & NFPA 33 regulations

Bottom Line

The iDEAL PSB-PMR1088-AK gives you a dedicated, well-lit, ventilated mixing environment that supports safer handling and more consistent results. Flexible door placement helps it fit your space, the external fan/plenum layout keeps the room quieter, and the commercial-grade build quality makes it a smart long-term upgrade for any serious finishing operation.
