iDEAL LT-PT3300DC-X POWERTRAIN PLATFORM

iDEAL LT-PT3300DC-X Powertrain Platform Lift Table (12VDC Battery Powered)

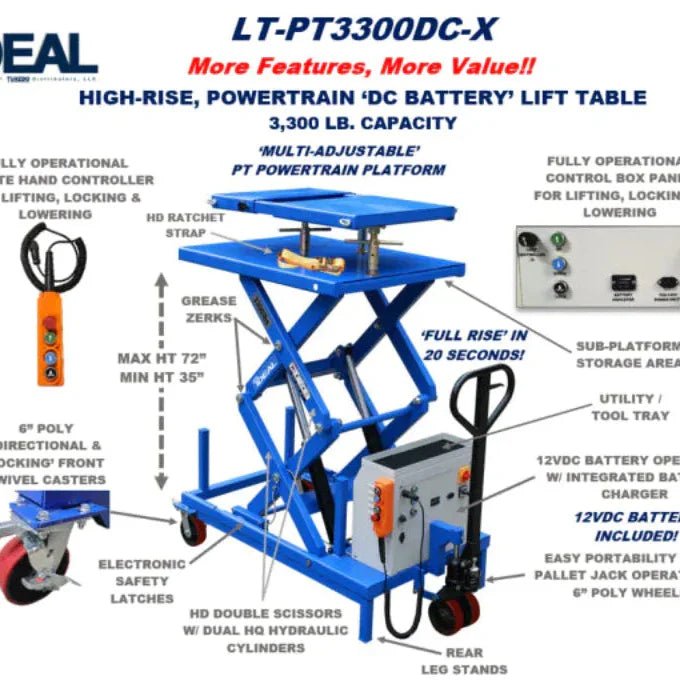

Powertrain work is where “steady” stops being a preference and becomes a requirement. The iDEAL LT-PT3300DC-X is a high-rise, commercial/industrial grade 3,300 lb capacity lift table engineered to remove, replace, and service heavy drivetrain assemblies with controlled precision—think transmissions, engines, axles, transaxles, and other high-mass components that demand careful positioning.

Unlike basic lift tables, the LT-PT3300DC-X is purpose-built around a multi-adjustable powertrain platform featuring an extendable, slotted deck (with 5.2″ of length adjustment) plus tilt and height fine-tuning via heavy-duty jack screws. That means better alignment, less wrestling, and cleaner reinstall—even when the mount points don’t line up on the first try. Add tie-down ring eyelets and a heavy-duty ratchet strap, and you’ve got a stable, secure handling solution that helps protect both the component and the technician.

And because shops don’t always have perfect access to power, this unit runs on a 12VDC deep-cycle sealed battery with an integrated 110V charger. Dual controls let you operate it from the control panel or a magnetic remote hand controller—so you can stand where you need to stand when the load is moving. With pallet-jack-style portability, locking/directional casters, and a rugged double-scissor structure with dual hydraulic cylinders, it’s built to move, lift, lock, and work—every day.

Key Highlights

• 3,300 lb Capacity: Designed for heavy powertrain assemblies—engines, transmissions, axles, and transaxles.
• 12VDC Battery Powered: Cordless operation with integrated 110V battery charger for easy recharging.

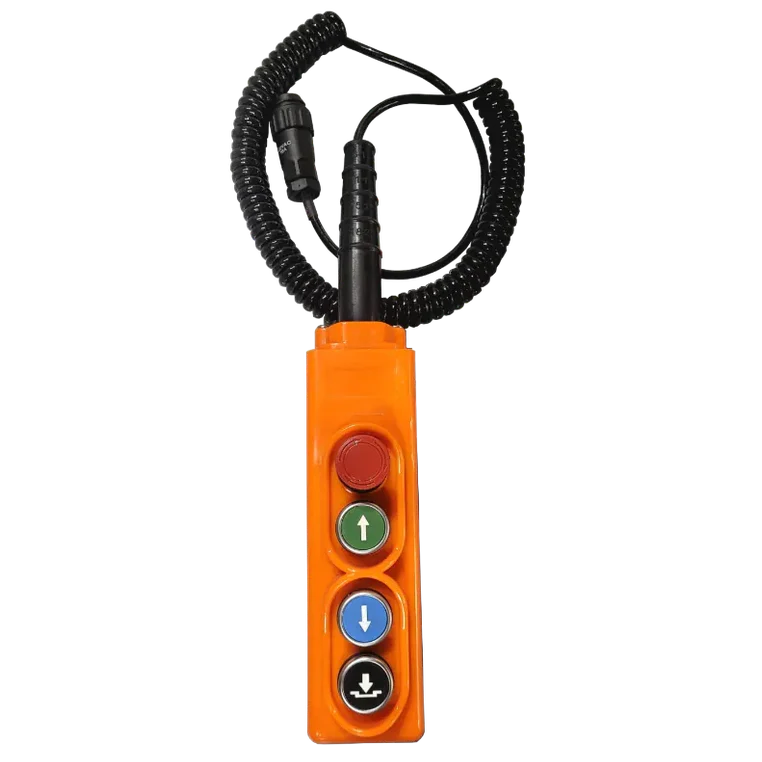

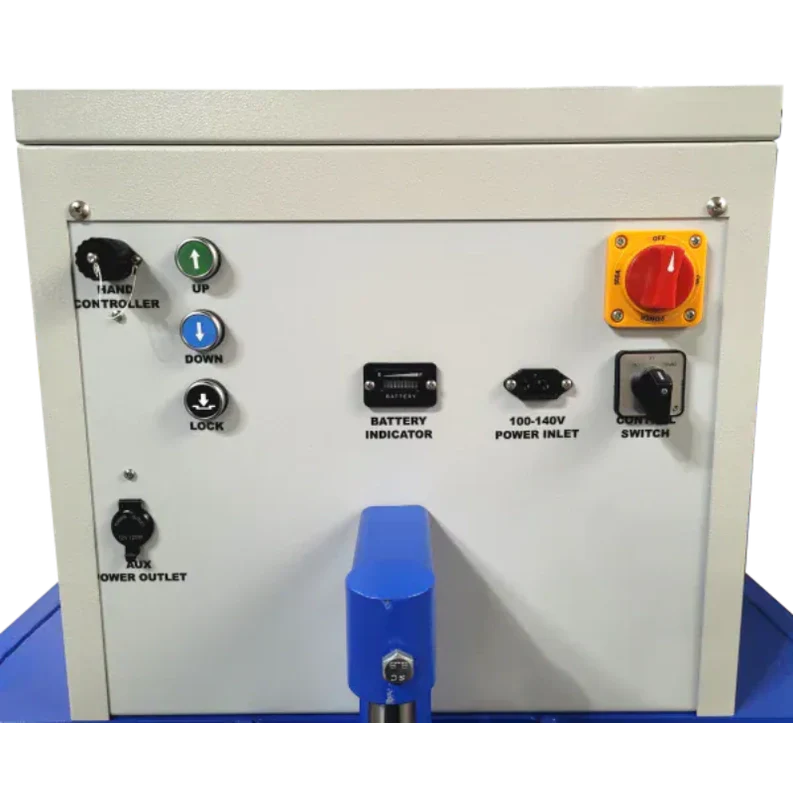

• Dual Control Operation: Use the control panel or magnetic hand controller for lifting, locking, and lowering.

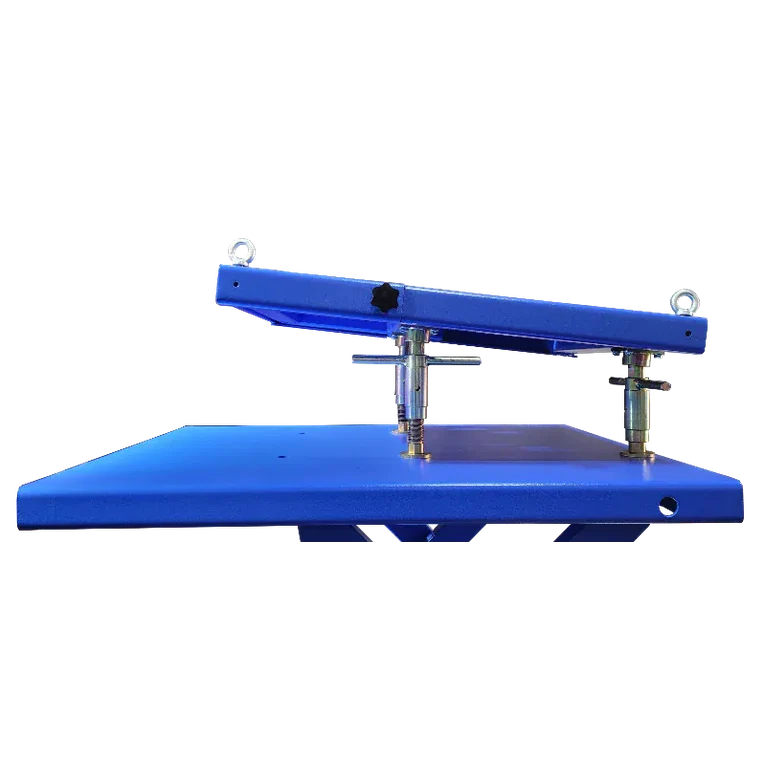

• Extendable & Slotted PT Platform: Heavy-duty platform with 5.2″ length adjustment for better component fitment.
• Precision Adjustments: Heavy-duty jack screws allow controlled tilt & height platform adjustments.

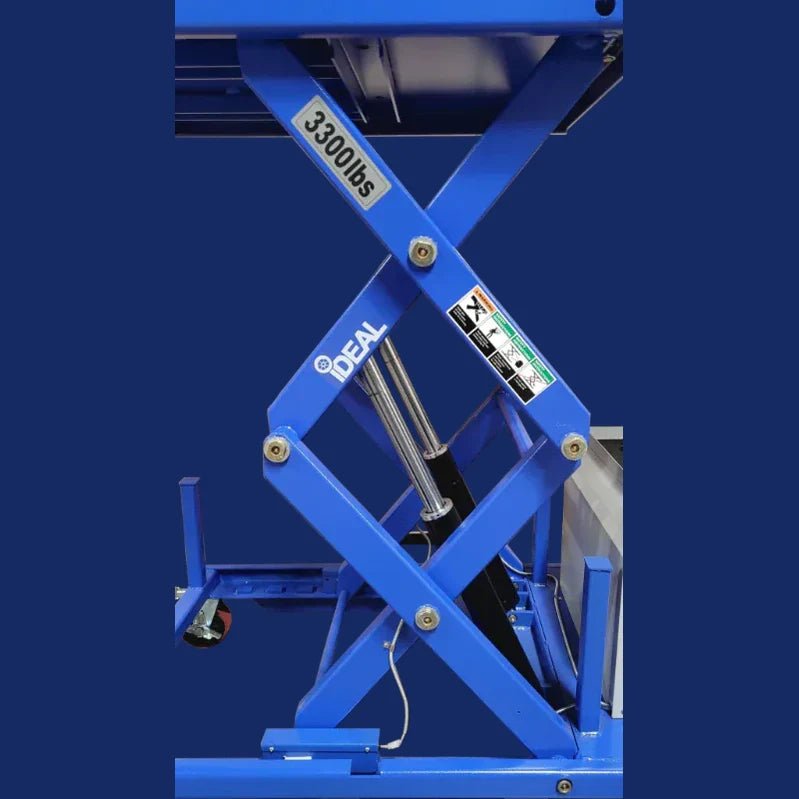

• Double-Scissor HD Design: Built for strength and stability with dual hydraulic cylinders.
• Built-In Load Security: Includes tie-down ring eyelets and a heavy-duty ratchet strap.

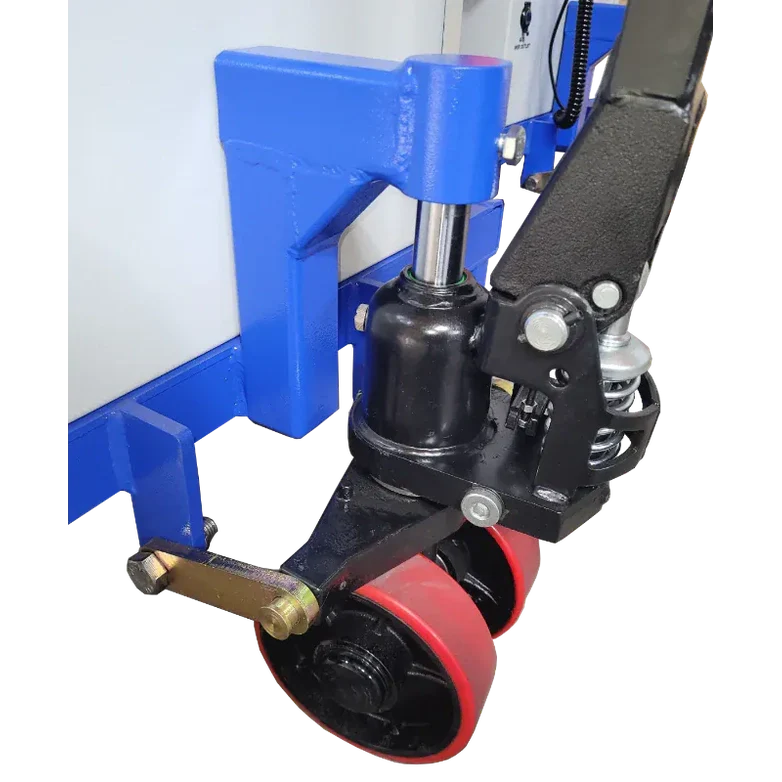

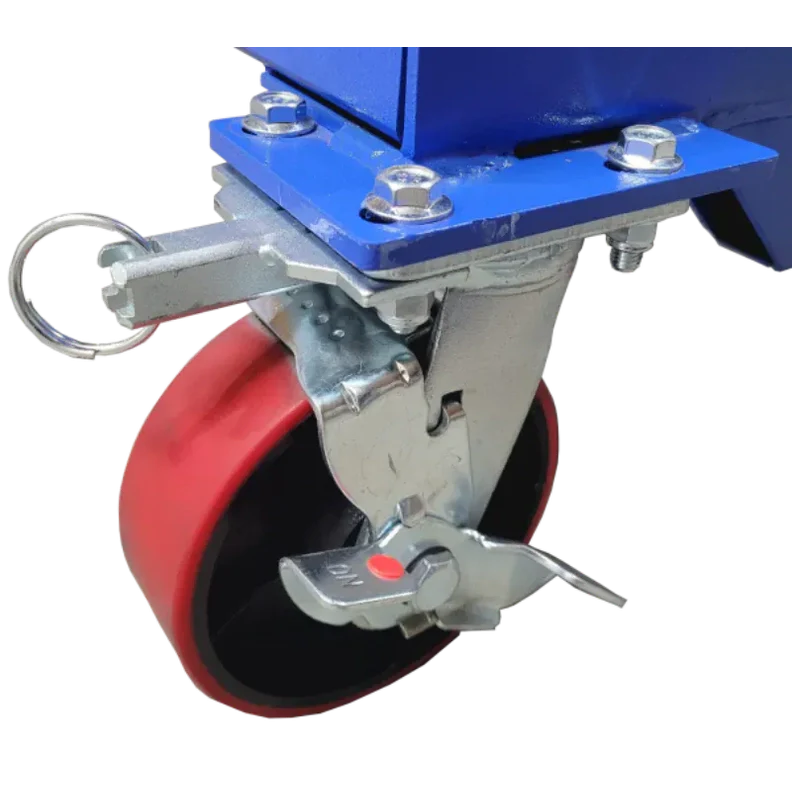

• Shop-Friendly Mobility: Pallet-jack-style portability with 6″ poly wheels and front locking/directional swivel casters.
• Integrated Storage: Utility/tool tray plus sub-platform storage area keeps tools and hardware close.
• Durable Finish: Powder-coat protection for daily shop environments.

How You’ll Use It (Everyday Workflow)

• Roll the table into position using the pallet-jack dolly setup and lock it down.
• Raise the platform to the component using the magnetic hand control or panel buttons.
• Extend and position the slotted platform to match the powertrain footprint.
• Fine-tune alignment with jack screw tilt & height adjustments.
• Secure the load using the tie-down eyelets and included heavy-duty ratchet strap.
• Lower smoothly, set to a locking position as needed, and complete removal/installation with control.

What’s Included

• LT-PT3300DC-X 12VDC electric-hydraulic lift table
• Heavy-duty extendable & slotted powertrain platform (5.2″ adjustment)
• Magnetic remote hand controller + control panel buttons (dual control)
• Deep-cycle 12VDC sealed battery
• Integrated 110V battery charger
• 12VDC auxiliary outlet port
• Pallet jack dolly with poly casters
• Leg support stands
• Utility/tool tray + sub-platform storage area
• Four (4) tie-down ring eyelets
• Heavy-duty ratchet strap

Specifications

Bottom Line

The iDEAL LT-PT3300DC-X is a serious powertrain-handling solution for professional shops—portable, battery-powered, and built for precision. With a 3,300 lb rating, an adjustable extendable platform, and secure tie-down support, it helps technicians remove and reinstall engines, transmissions, and axle assemblies safely, smoothly, and with far less struggle.
