iDEAL LT-EV3300DC-X EV/ HYBRID COMPONENT LIFT TABLE

iDEAL LT-EV3300DC-X EV / Hybrid Component Lift Table (12VDC Battery Powered)

Modern EV and hybrid service demands precision—not brute force. The iDEAL LT-EV3300DC-X is a commercial/industrial grade, high-rise 3,300 lb capacity component lift table built to handle the heavy, high-value jobs: EV battery packs, motors, and powertrain assemblies. It lifts smoothly, lowers with control, and—because it’s 12VDC battery powered—it goes where the work is, even when an outlet isn’t close or the bay layout isn’t perfect.

The centerpiece is iDEAL’s insulated, multi-directional sliding EV platform with adjustable latch clamps. Translation: you can align a battery or drivetrain assembly with confidence, fine-tune position without wrestling the load, and keep everything stable while you work. Add precision jack screws for platform tilt and height adjustments, a double-scissor HD structure, and dual hydraulic cylinders, and you get a lift table that feels steady, predictable, and shop-ready—because “close enough” isn’t acceptable when you’re reinstalling a pack.

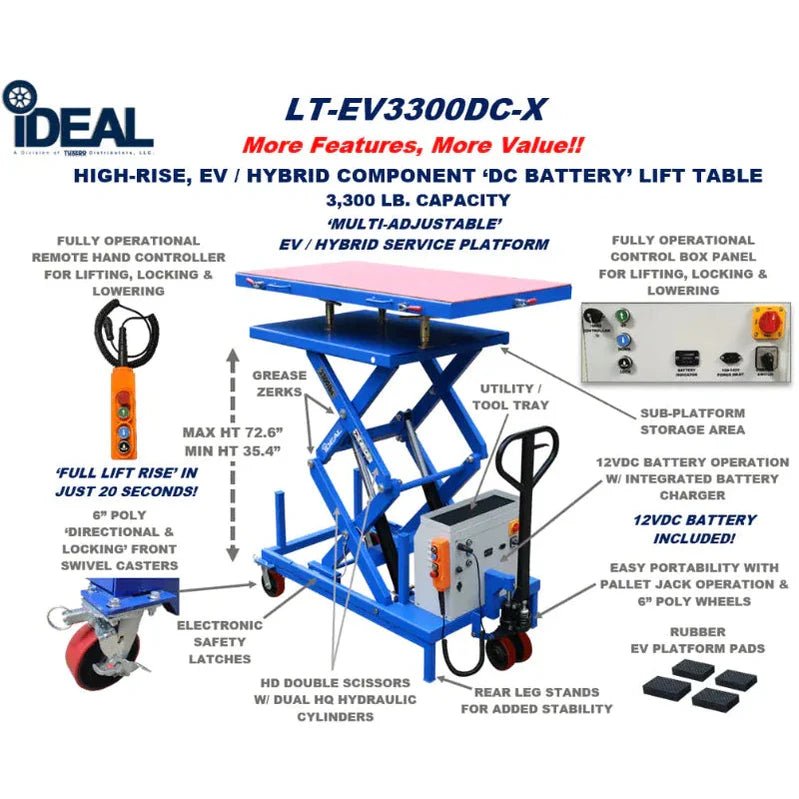

Key Highlights

• 3,300 lb Capacity: Built for heavy EV/hybrid components—battery packs, motors, and powertrain assemblies.
• 12VDC Battery Powered: Cordless operation with an integrated 110V battery charger for shop convenience.

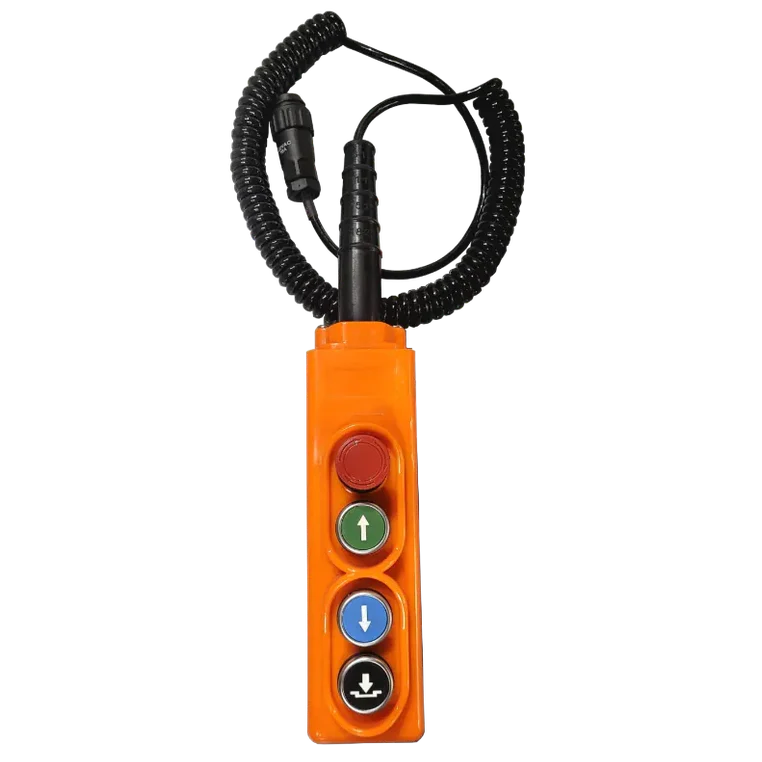

• Dual Control Operation: Run the table using the control panel or the remote hand controller for better positioning.
• Multi-Directional Sliding EV Platform: Insulated platform with adjustable latch clamps for secure, precise alignment.

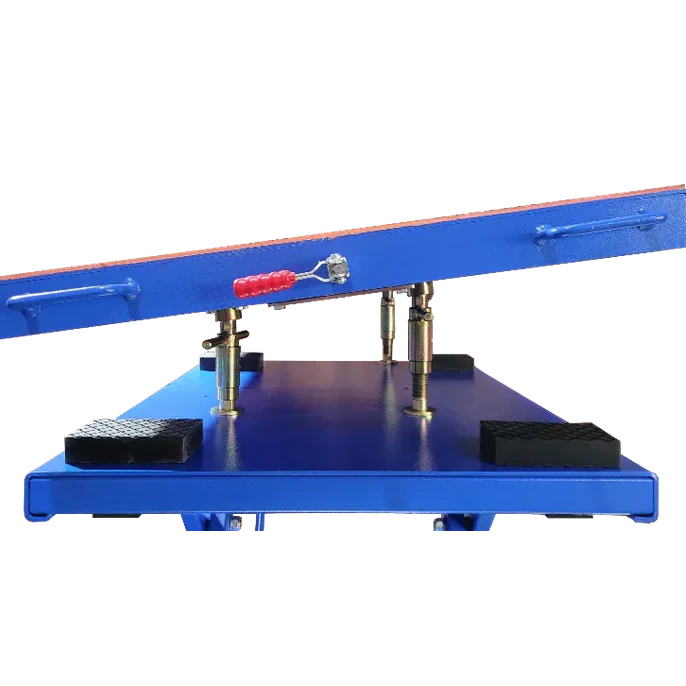

• Precision Platform Adjustment: Heavy-duty jack screws enable controlled tilt & height adjustments.

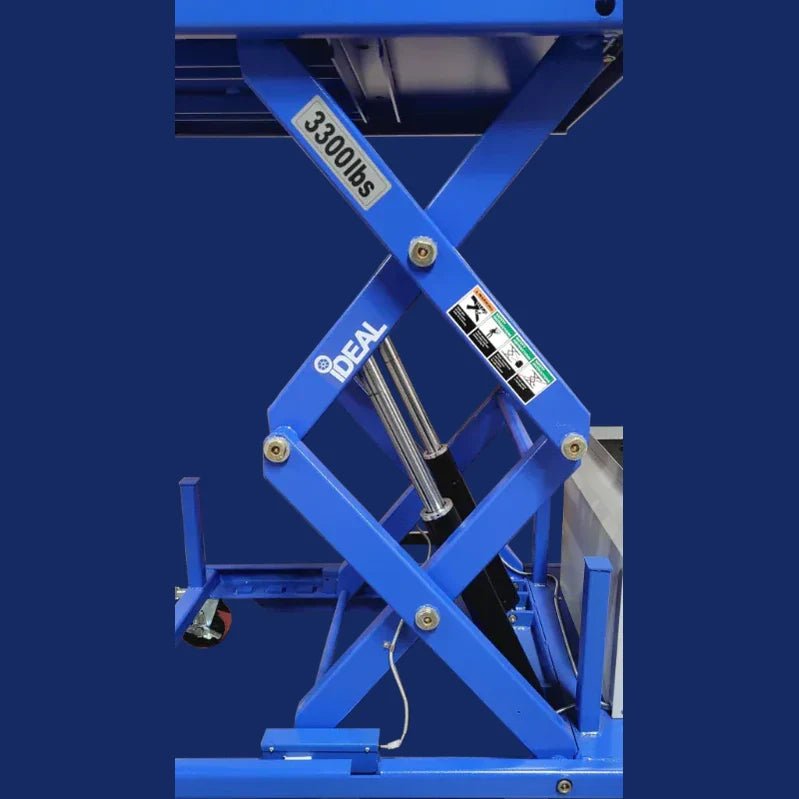

• Double-Scissor, Heavy-Duty Design: Strong, stable lift structure paired with dual hydraulic cylinders.

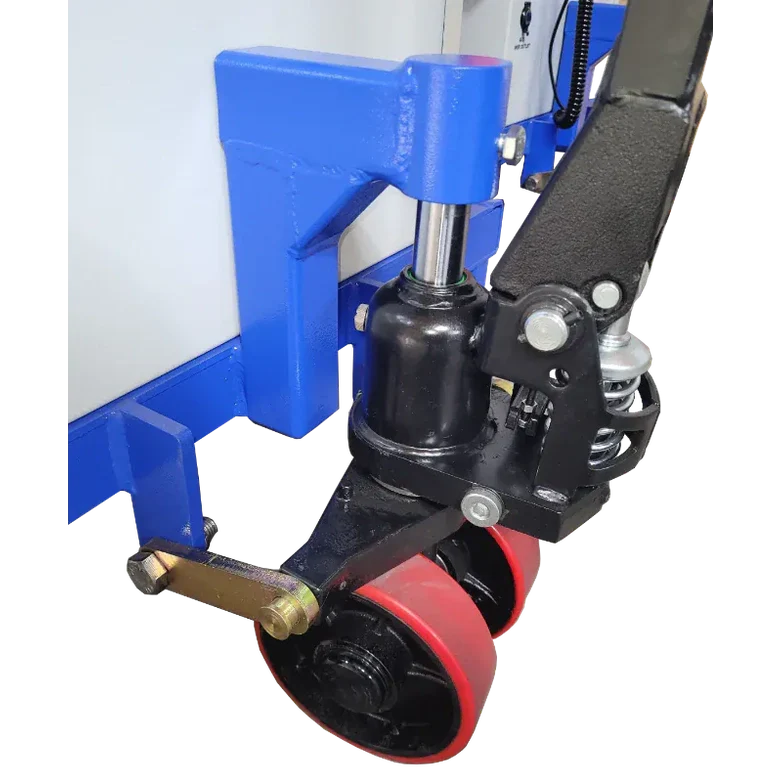

• Shop-Friendly Mobility: Includes pallet jack dolly operation and 6″ poly wheels for easier transport.

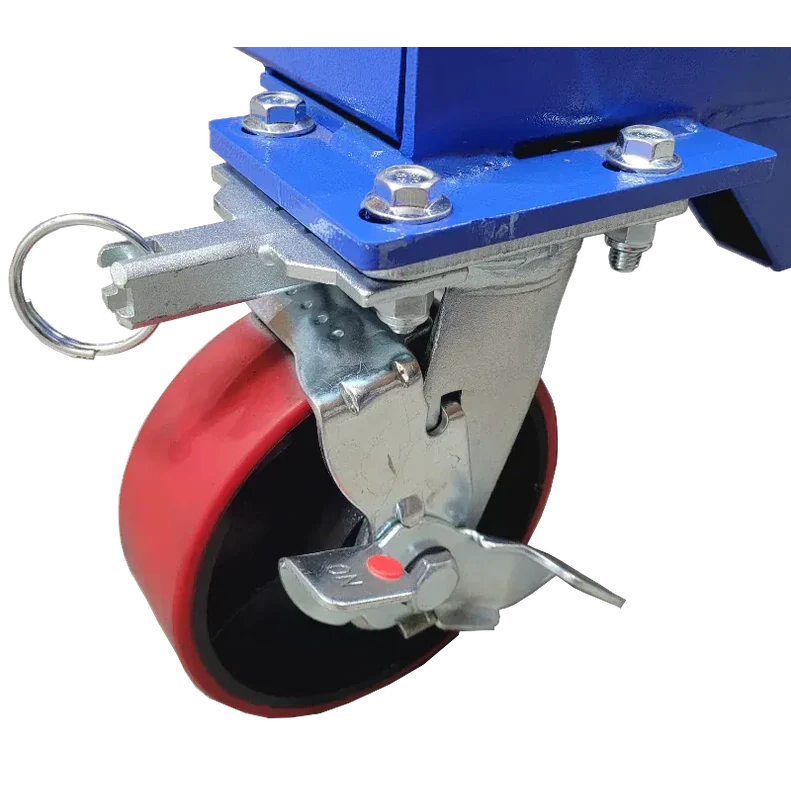

• Locking + Directional Casters: Durable 6″ front poly swivel casters with directional/locking control.
• Integrated Storage: Utility/tool tray plus sub-platform storage area keeps tools and hardware close.
• Built to Last: Durable powder-coat finish for daily service environments.

How You’ll Use It (EV Service Workflow)

• Roll the table into position using the dolly/pallet-jack mobility setup and lock it in place.
• Raise the platform using the remote hand controller (or panel buttons) for safe, controlled approach.
• Slide the platform multi-directionally to align with mounting points—then secure the load using the latch clamps.
• Fine-tune the platform with the jack screw tilt/height adjustments for clean, accurate reinstall alignment.
• Lower smoothly, set to a locking position as needed, and complete removal/installation with confidence.

What’s Included

• LT-EV3300DC-X 12VDC electric-hydraulic lift table
• Insulated multi-directional sliding EV platform with adjustable latch clamps

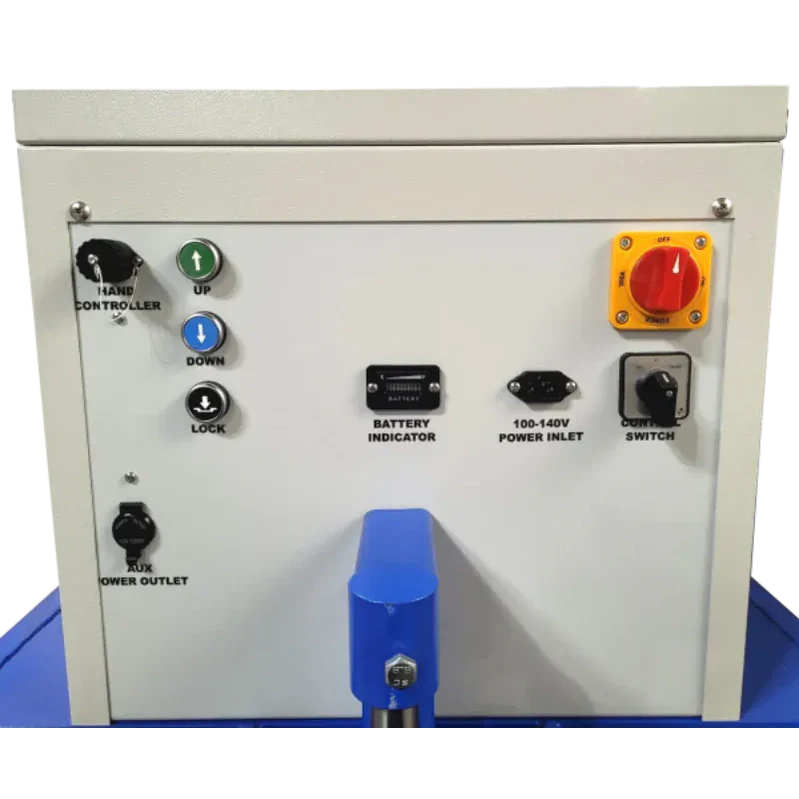

• Control panel buttons + remote hand controller (dual-operation control)
• Deep-cycle 12VDC sealed battery
• Integrated 110V battery charger
• 12VDC auxiliary outlet port
• Pallet jack dolly with poly casters
• Leg support stands
• Utility/tool tray + sub-platform storage area
• Four (4) rubber pads

Specifications

Bottom Line

The iDEAL LT-EV3300DC-X is built for the heaviest, most sensitive jobs in EV and hybrid repair. With 3,300 lb capacity, battery-powered cordless operation, and a precision multi-adjustable insulated EV platform, it gives your technicians the control they need to remove and install major components safely—clean alignment, steady lifting, and no wrestling the load.
