Autel MONITORDT 27-inch Replacement Digital Target Monitor for IA1000 ADAS Calibration Systems

Description

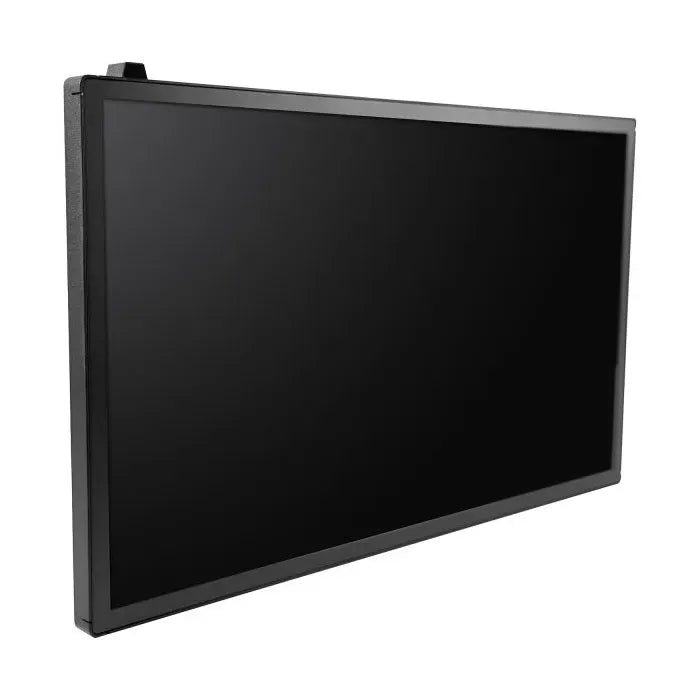

The Autel MONITORDT is a 27-inch attachable digital target monitor built as a replacement display for the Autel MaxiSYS ADAS IA1000 Automated Alignment and ADAS Calibration System. The IA1000 frame carries three monitors during a calibration job; the MONITORDT slots into that position and brings digital LDW target display to the system.

The monitor is more than a like-for-like swap. Once mounted, it adds the alignment and ADAS calibration software the IA1000 needs to run U.S., Asian, and European 4-wheel alignment routines plus static and dynamic ADAS calibrations for camera, radar, and Lidar systems. It pairs with the MaxiSYS Ultra S2 tablet and is backed by a one-year limited warranty.

Features

• Adds alignment and ADAS calibration software for use with the IA1000 system
• Compatible with the MaxiSYS Ultra S2 tablet
• Enables U.S., Asian, and European 4-wheel alignment routines plus static and dynamic ADAS calibrations for camera, radar, and Lidar systems
• Displays any of the Autel LDW digital targets
• Self-adjusting screen brightness sensor on the top bezel
• 27-inch attachable form factor sized for the IA1000 frame

Compatibility

Built specifically for the Autel MaxiSYS ADAS IA1000 Automated Alignment and ADAS Calibration System. Pairs with the MaxiSYS Ultra S2 tablet for calibration routine control. Capable of displaying all Autel LDW digital targets used during lane-departure-warning calibration jobs.

Specifications

Warranty

The Autel MONITORDT is covered by a one-year limited warranty.

FAQ

What is the MONITORDT?

A 27-inch attachable digital target monitor that mounts to the Autel IA1000 frame and displays Autel LDW digital targets during ADAS calibration.

Which Autel system is the MONITORDT for?

The MaxiSYS ADAS IA1000 Automated Alignment and ADAS Calibration System.

Which tablet does the MONITORDT work with?

The Autel MaxiSYS Ultra S2 tablet.

Which calibrations does the MONITORDT support?

U.S., Asian, and European 4-wheel alignment routines plus static and dynamic ADAS calibrations for camera, radar, and Lidar systems.

What digital targets can the monitor display?

Any of the Autel LDW digital targets.

What are the dimensions and weight?

18.11″ H × 28.86″ L × 6.61″ W and 14.64 lbs.

What warranty comes with the MONITORDT?

A one-year limited warranty.

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
