Autel MaxiSYS MS906 MAX ADAS Professional Diagnostic Tablet with ADAS Calibration Software and MaxiVCI V200

Description

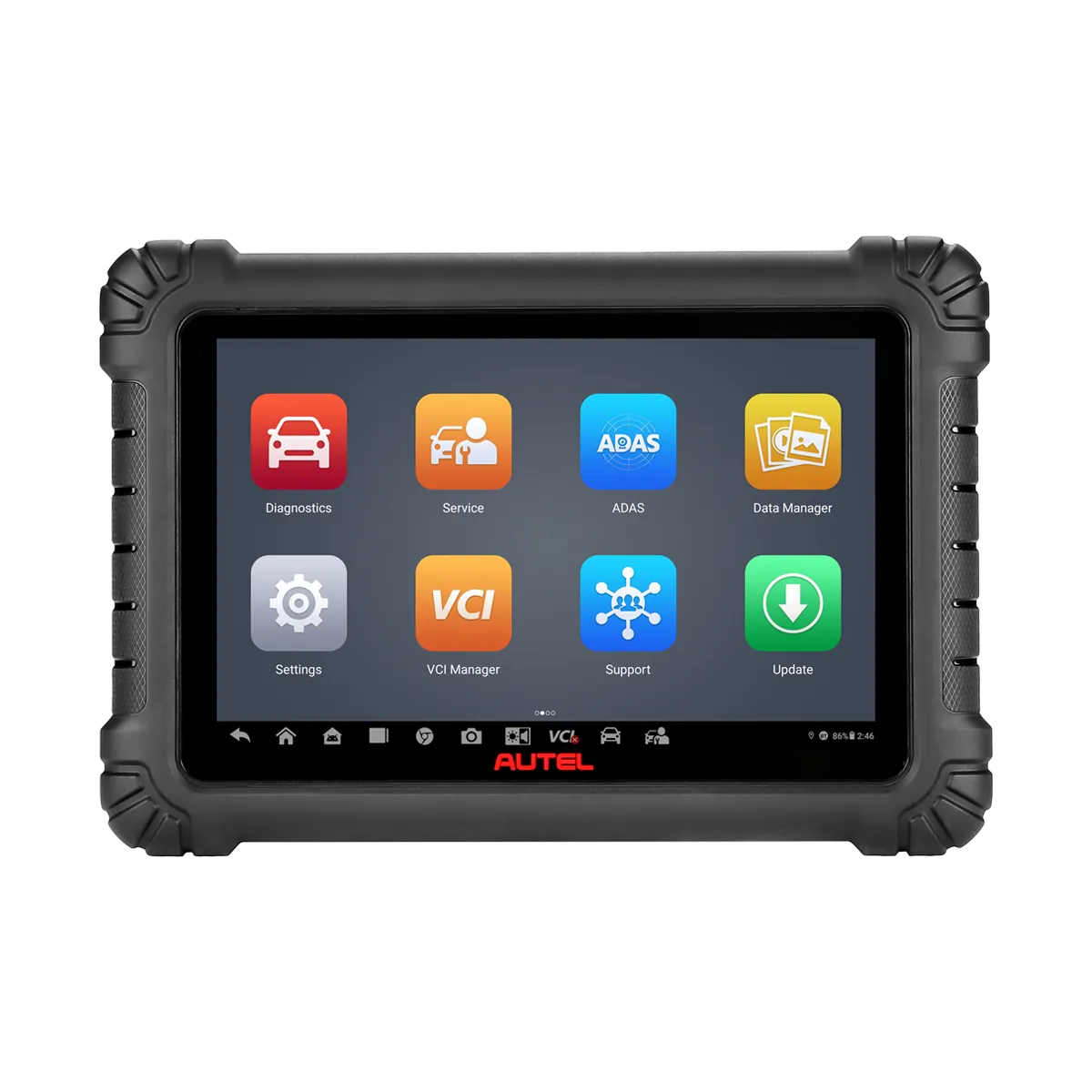

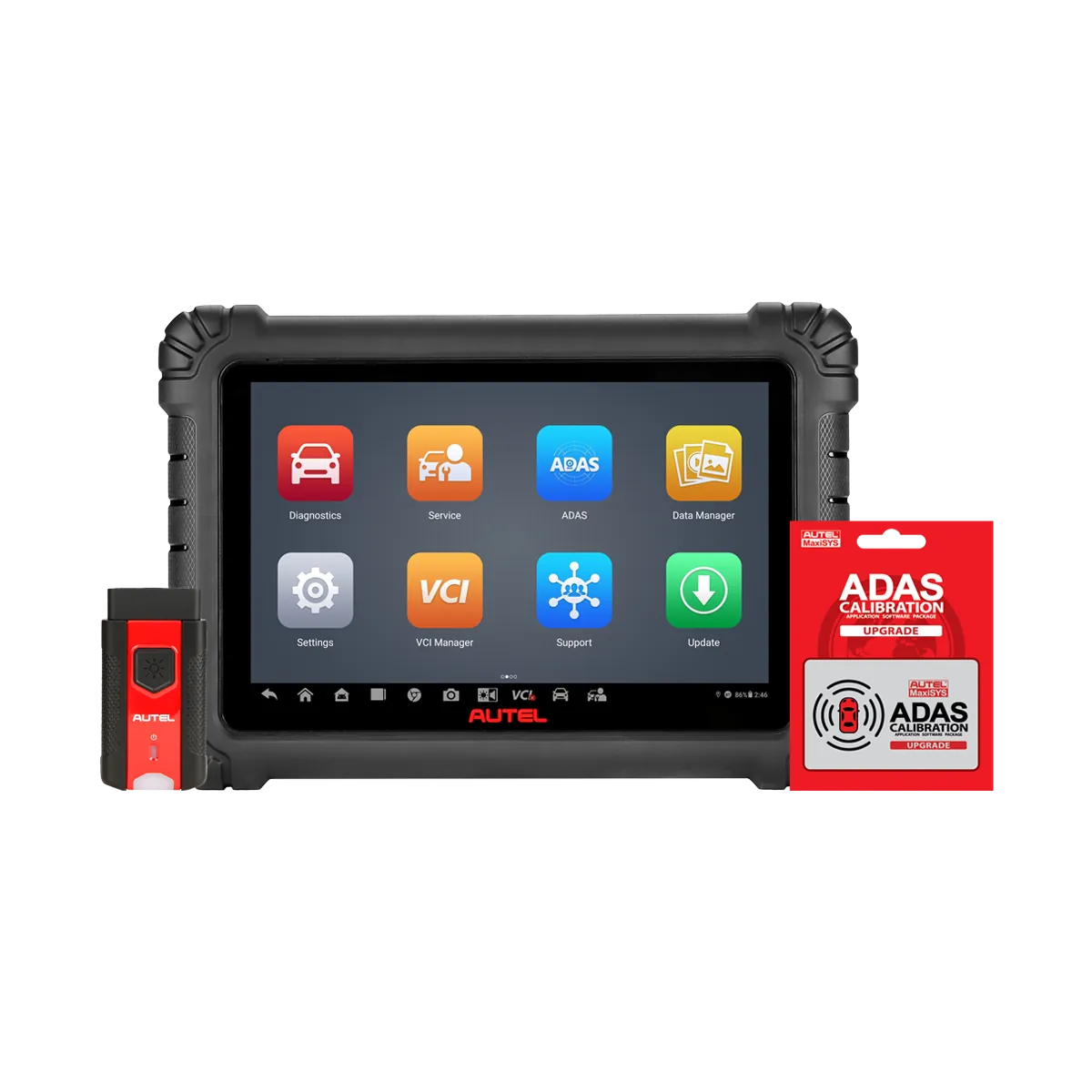

The Autel MaxiSYS MS906 MAX ADAS is a 10.1-inch wireless professional diagnostic tablet bundled with the Bluetooth-enabled MaxiVCI V200 vehicle communication interface and Autel’s static and dynamic ADAS Calibration software upgrade. It runs all-systems diagnostics — read and erase codes, view Freeze Frame data, view and graph Live Data, and perform bi-directional Active Tests and Special Functions — on U.S., Asian, and European vehicles 1996 and newer.

The bundled ADAS Calibration software lets the tablet drive calibration of cameras, radar, and lidar components using applicable patterns, targets, and calibrators. Pair the tablet with the Autel MA600 mobile calibration frame for mobile work, or with one of Autel’s stationary Standard ADAS calibration frame systems for bay-based work (frame sold separately).

An Android 10 OS, an octa-core processor, 4 GB of RAM, and 128 GB of on-board storage drive AutoScan 2.0 All-Systems Scan, customizable Pre and Post Scans with ADAS identification, and the 40+ service and maintenance task menu. The MS906 MAX also performs coding, adaptations, and hidden functions where supported by the vehicle. Reports share by email and text directly from the tablet.

Features

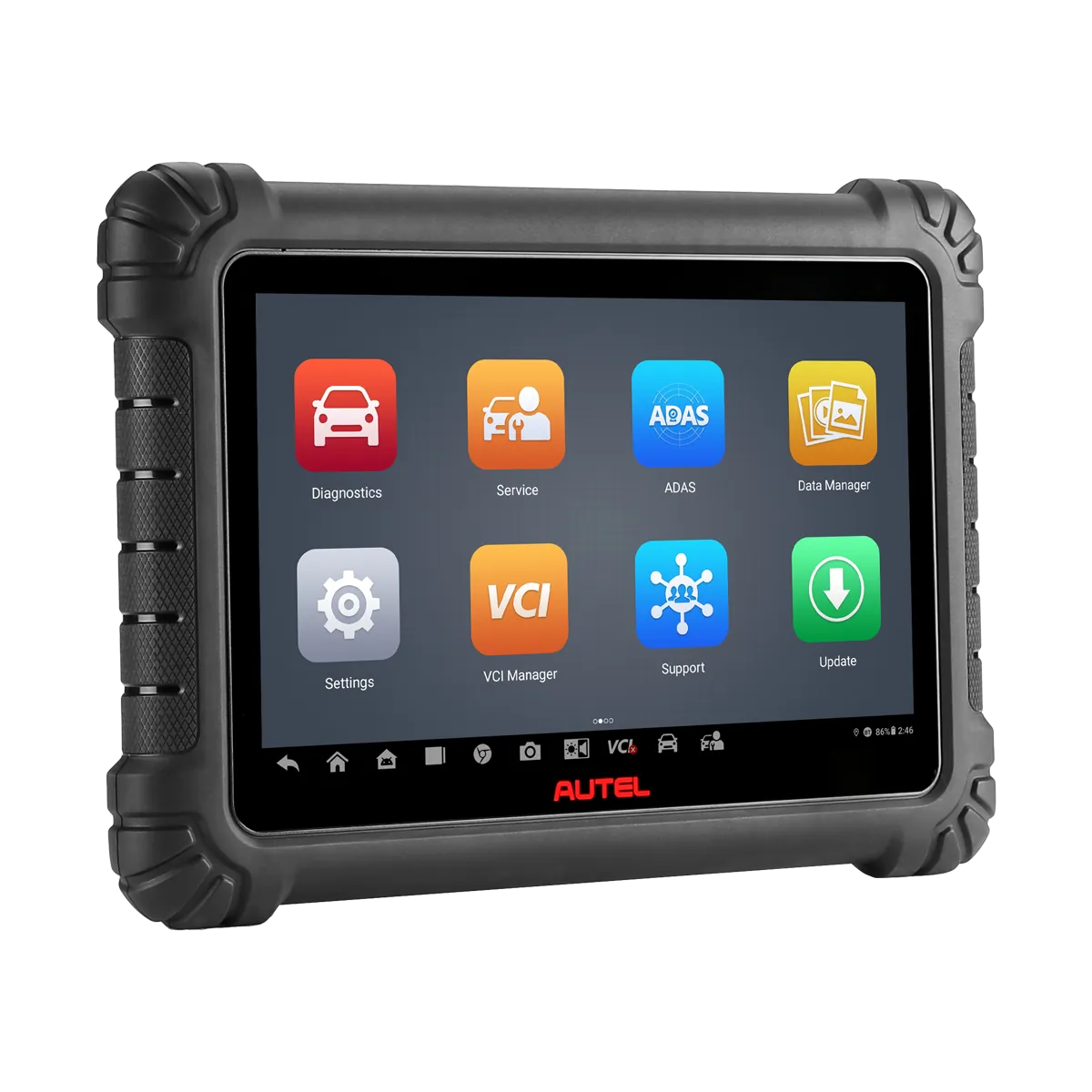

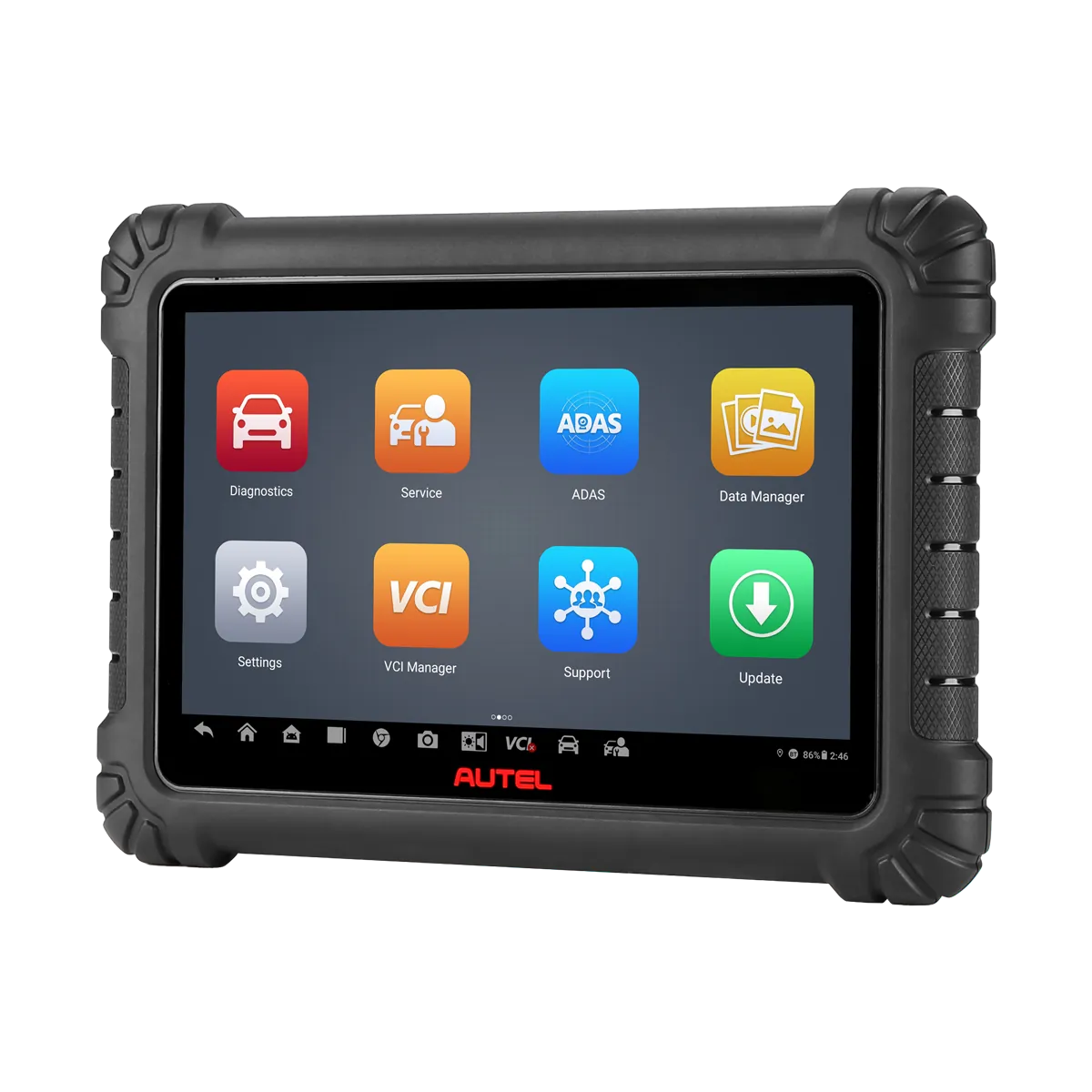

• 10.1-inch touchscreen wireless professional diagnostics and service tablet
• Extensive vehicle coverage of U.S., Asian, and European vehicles, 1996 and newer
• Includes static and dynamic ADAS Calibration software upgrade
• Compatible with Autel MA600 and Standard ADAS Calibration frame systems (purchased separately)
• All-systems diagnostics: read and erase codes, view Freeze Frame data, view and graph Live Data
• Bi-directional Active Tests and Special Functions
• 40+ service and maintenance task menu, plus coding, adaptations, and hidden functions
• Bluetooth-enabled MaxiVCI V200 for support of standard and advanced communication protocols, including CAN FD and ISO 13400 (DoIP)
• Customizable Pre and Post Scans with ADAS identification
• Android 10, octa-core processor, 4 GB RAM, 128 GB on-board storage
• 11600 mAh lithium-polymer battery for extended runtime
• 13 MP rear camera for clear and detailed images
• One year of software updates and a one-year limited warranty
• Supports Battery Testing and Inspection Camera/Videoscope add-ons (sold separately)

Compatibility

The MS906 MAX ADAS tablet works with the following Autel ADAS calibration frame systems for static and dynamic calibration of cameras, radar, and lidar components. Frames are sold separately.

• Autel MA600 — mobile ADAS calibration frame, intended for mobile or compact-bay work
• Autel Standard ADAS Calibration frame systems — stationary frames for bay-based calibration workflows

Vehicle coverage spans U.S., Asian, and European vehicles from 1996 and newer, with OE-level system coverage and support for CAN FD and ISO 13400 (DoIP) on newer vehicles.

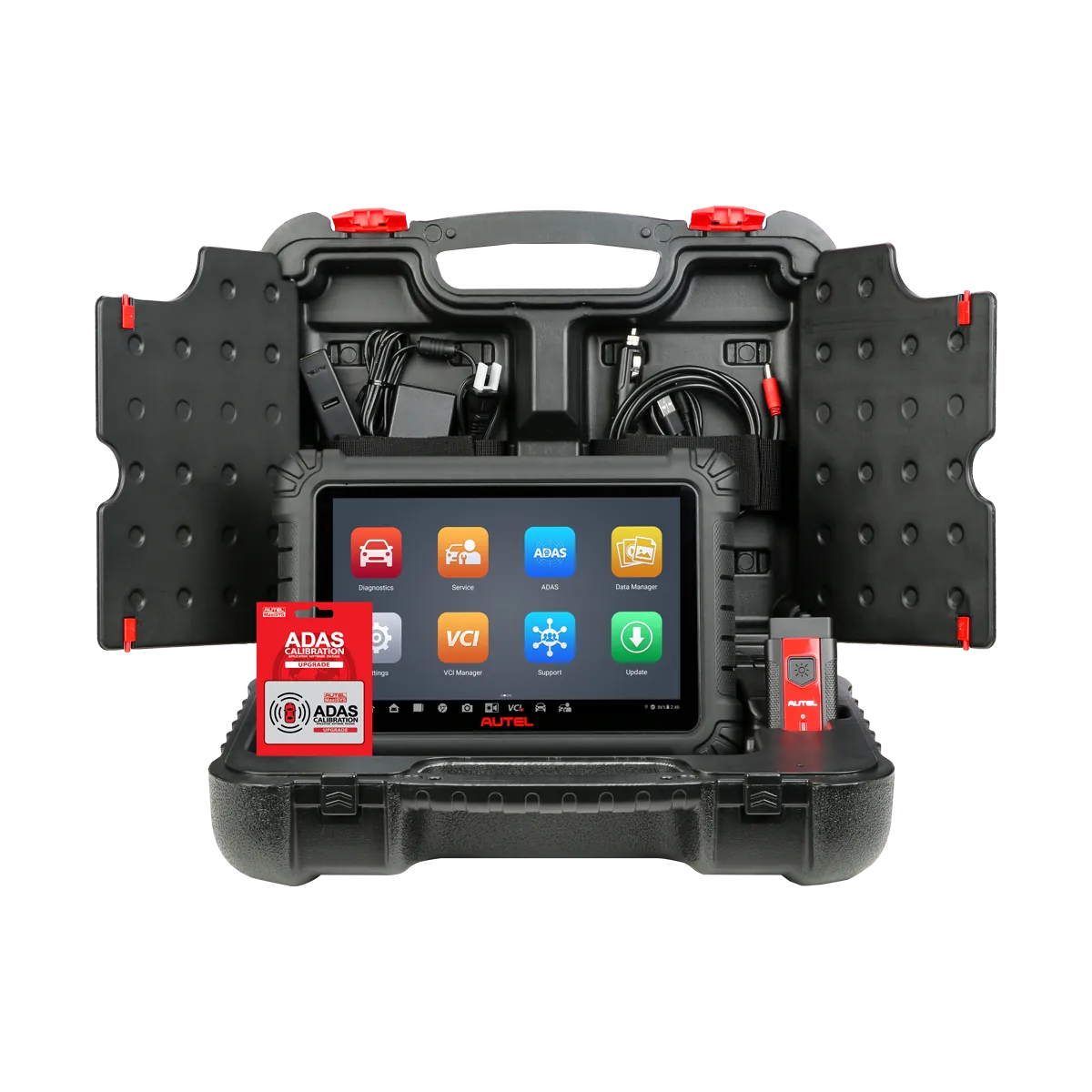

What’s Included

• MaxiSys MS906 MAX main unit (10.1-inch tablet)
• MaxiVCI V200 vehicle communication interface
• AC/DC Power Adapter (12 V)
• USB Type-C Cable
• USB to Ethernet Adapter
• Auxiliary Power Outlet Adapter
• Spare Fuse, 6 x 30 mm (2 pcs)
• Quick Reference Guide
• Packing List
• Soft Cloth

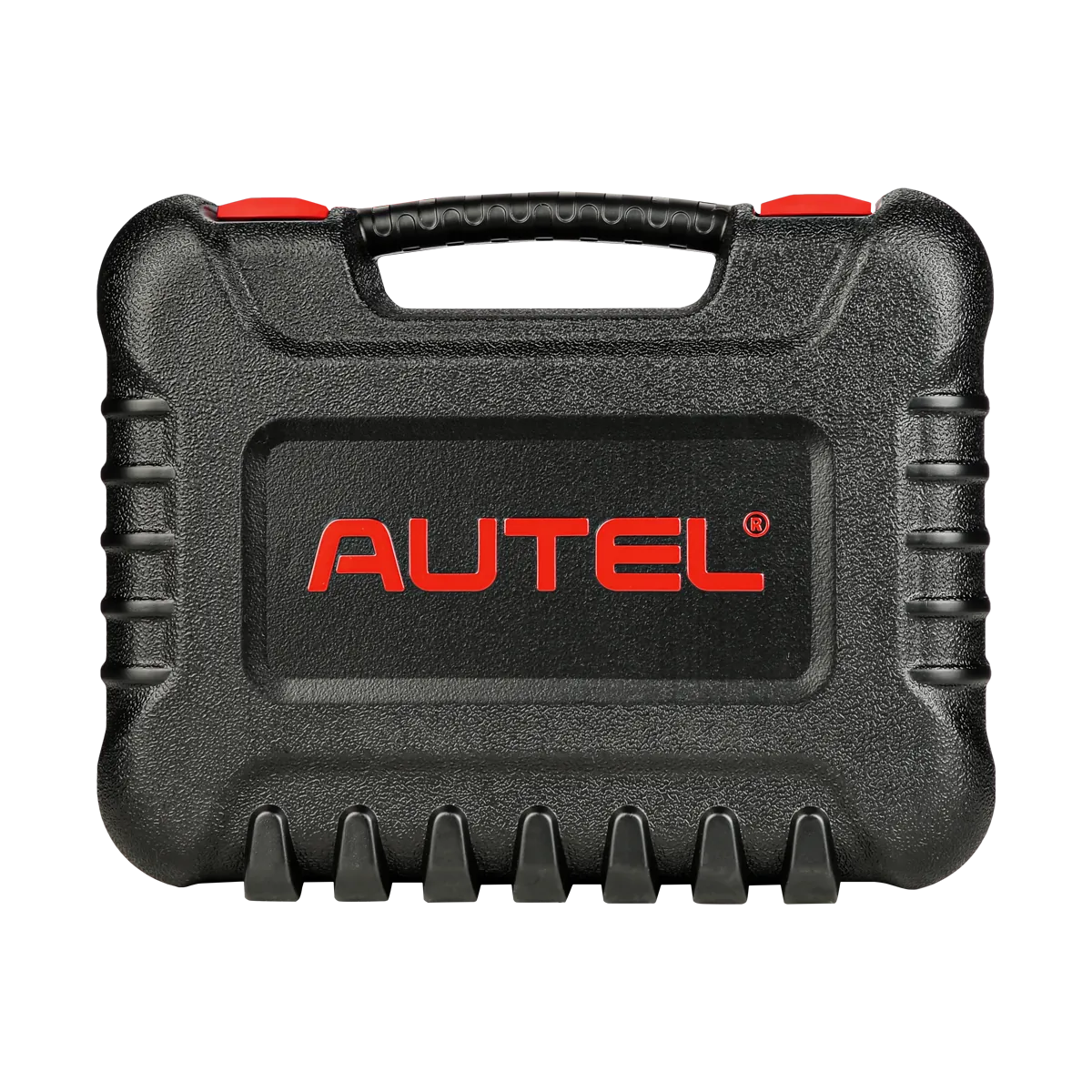

• Carrying Case

Specifications

Warranty

The Autel MaxiSYS MS906 MAX ADAS is covered by a one-year limited warranty and includes one year of free software updates. Subsequent software-update subscriptions are purchased separately when the included year expires.

FAQ

Does the MS906 MAX ADAS include the ADAS calibration frame?

No. The MS906 MAX ADAS bundles the diagnostic tablet, the MaxiVCI V200, and the ADAS Calibration software upgrade. The physical calibration frame — Autel MA600 or one of the Autel Standard ADAS Calibration frame systems — is purchased separately, along with the appropriate patterns, targets, and calibrators for the calibrations being performed.

What kinds of ADAS calibrations can it perform?

Both static and dynamic calibrations of cameras, radar, and lidar components, using applicable patterns, targets, and calibrators paired with one of the compatible Autel frame systems. The tablet also runs customizable Pre and Post Scans with ADAS identification.

What vehicles does it cover?

Extensive coverage of U.S., Asian, and European vehicles, 1996 and newer, with OE-level system coverage. Protocol support includes CAN FD and ISO 13400 (DoIP) for newer vehicles.

What does “all-systems diagnostics” mean on this tablet?

Read and erase codes, view Freeze Frame data, view and graph Live Data, and perform bi-directional Active Tests and Special Functions. The MS906 MAX also performs coding, adaptations, and hidden functions where supported by the vehicle.

How does the tablet connect to the vehicle?

Through the included Bluetooth-enabled MaxiVCI V200. The VCI plugs into the vehicle’s diagnostic port and communicates wirelessly with the tablet, supporting standard and advanced protocols including CAN FD and ISO 13400 (DoIP).

How long are software updates included?

One year of free software updates is included. After that, subscription renewal is available from Autel for continued vehicle-coverage and feature updates.

Can the tablet expand with battery testing or videoscope tools?

Yes. The MS906 MAX supports Autel battery testing and inspection-camera/videoscope add-ons with additional purchase.
