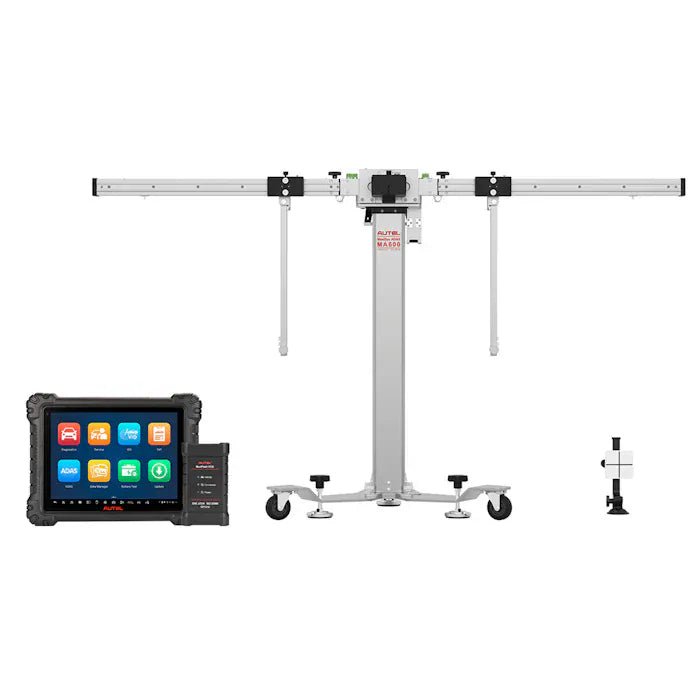

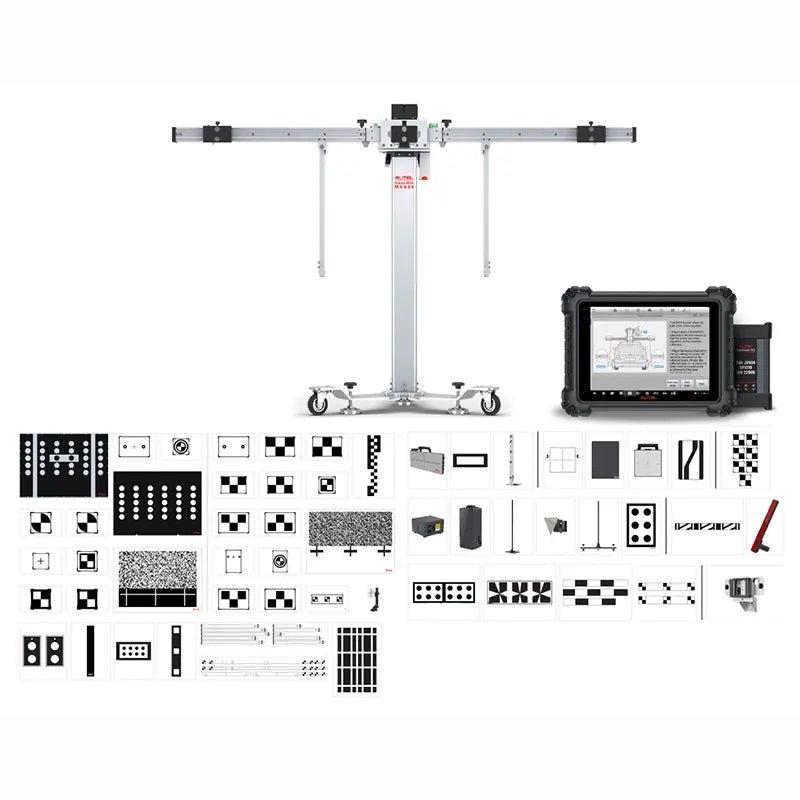

Autel MaxiSYS ADAS MAS20T All Systems 2.0 Mobile Calibration Package with MA600 Frame and MS909 S2 Tablet

Description

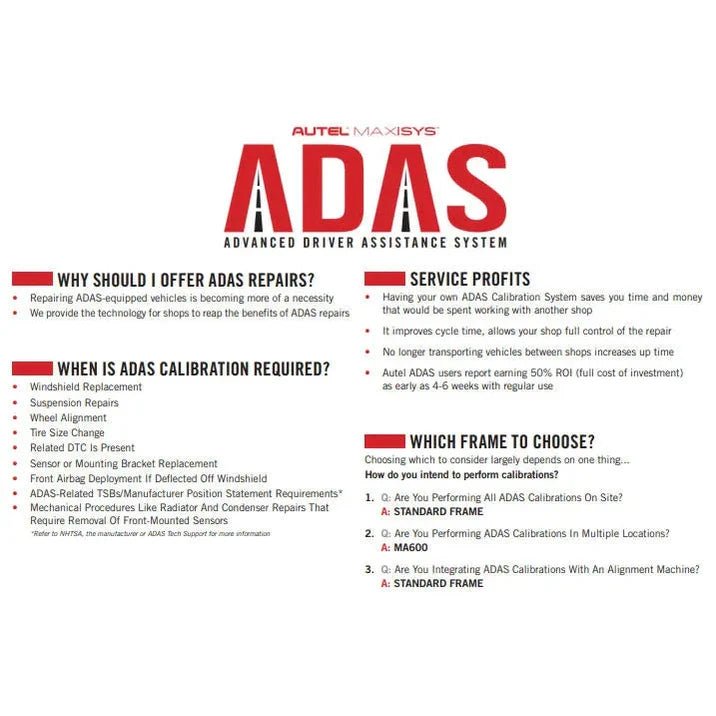

The Autel MaxiSYS ADAS MAS20T is the All Systems 2.0 mobile calibration package for collision repair, glass replacement, and general repair shops that need to calibrate ADAS sensors after a windshield replacement, a sensor or bracket swap, a suspension repair, a wheel alignment, or a tire size change. The kit pairs the foldable MA600 mobile calibration frame with the MaxiSYS MS909 S2 diagnostic tablet and the ADAS software upgrade, then layers on the patterns, targets, reflectors, and brackets needed to calibrate Lane Departure Warning, Adaptive Cruise Control, Lidar, Radar, Night Vision, Rear Collision Warning, Honda Lane Watch, and Around View Monitoring across the major European and Asian platforms a mixed-fleet shop sees every week.

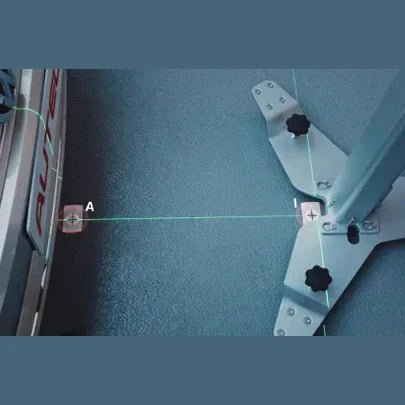

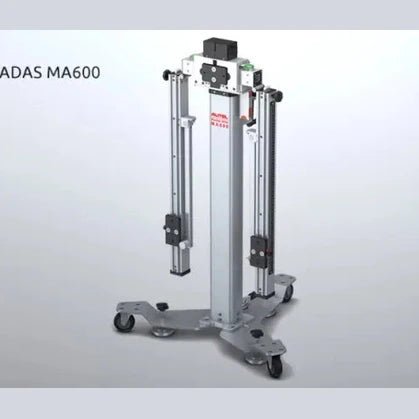

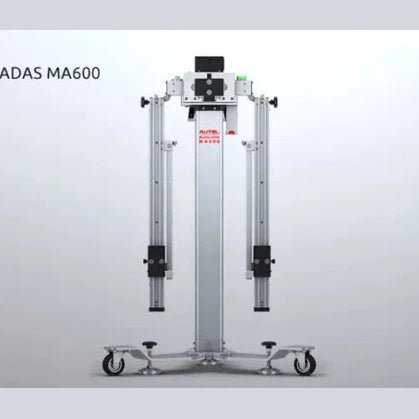

The MA600 frame is the part of the package that decides where the system can be used. The aluminum column folds and disassembles to fit into the trunk of a car or service truck, so the same calibration capability that lives on a dedicated bay in a body shop can travel to a mobile glass route, a satellite location, or a dealership without a permanent ADAS bay. Five-line laser positioning, a distance laser, an L-shaped wheel positioning bracket, an adjustable height column, and an adjustable base stabilizer keep the millimeter-level setup repeatable in whatever space the technician is working in.

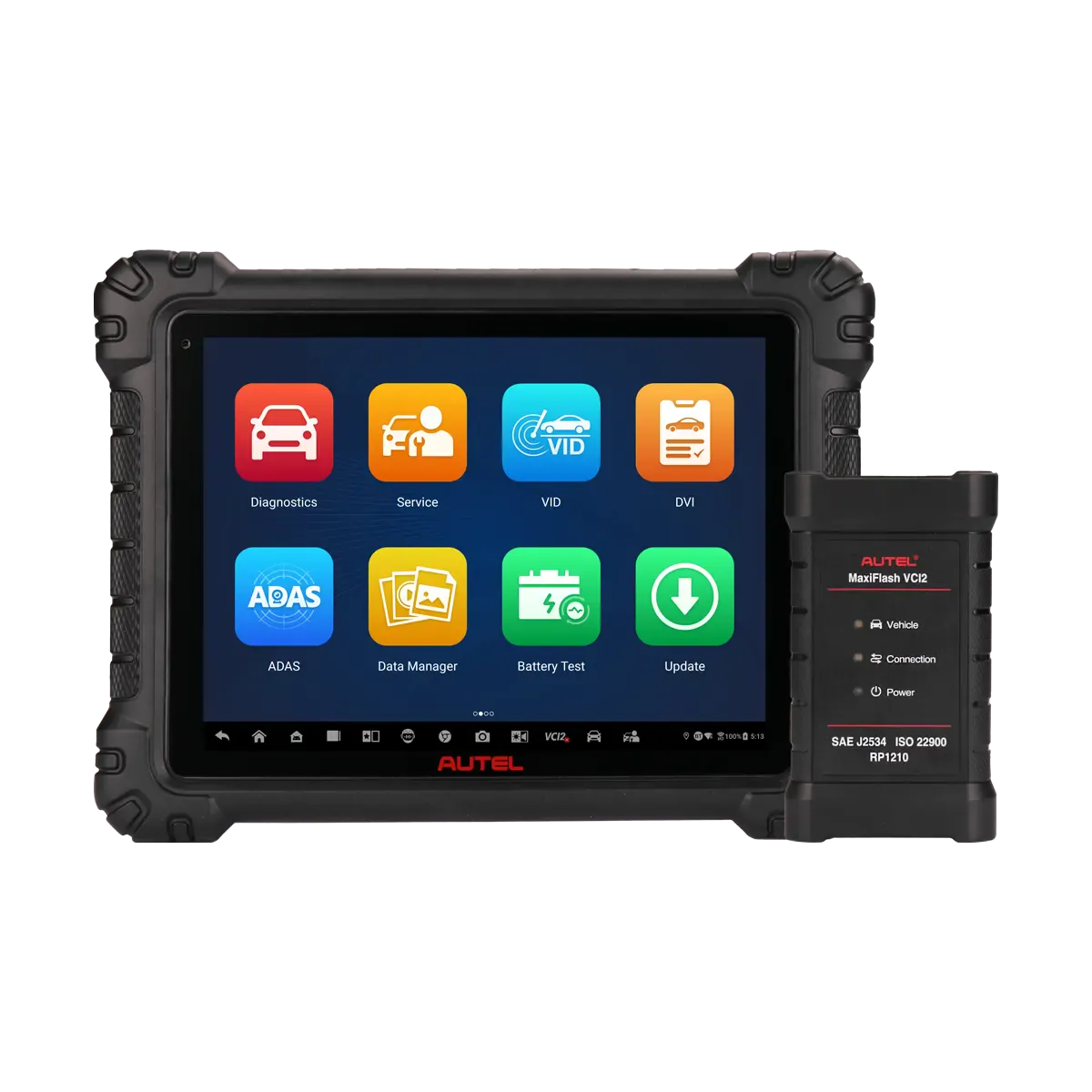

The MaxiSYS MS909 S2 tablet runs the calibration software end-to-end — vehicle ID, pre-scan, ADAS module identification, guided calibration with step-by-step graphics, and post-scan reporting. Autel’s regular OE-level diagnostic and calibration updates cover more than 80 US Domestic, Asian, and European brands, and the MaxiFlash VCI2 module on the kit supports SAE J2534, ISO 22900, and RP1210 communication standards for ECU coding and programming on top of the ADAS work.

Every MAS20T system includes virtual setup and onboarding training conducted by an Autel ADAS expert. In-shop training is not included with this system — buyers planning on-premise instruction should arrange that separately before commissioning.

Features

All Systems calibration coverage

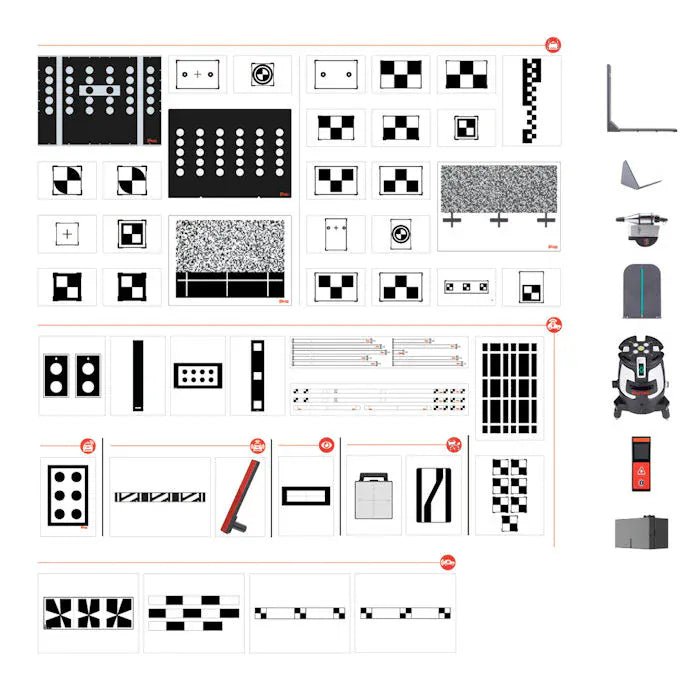

The kit ships with the frame, targets, patterns, and components for the full Autel All Systems coverage map:

• LDW — Lane Departure Warning
• ACC — Adaptive Cruise Control
• LIDAR — Light Detection and Ranging
• RADAR — Radio Detection and Ranging
• NV — Night Vision
• RCW — Rear Collision Warning
• LW — Honda Lane Watch
• AVM — Around View Monitoring

Hardware features

• Millimeter-level accuracy with multiple laser positioning and measurement tools

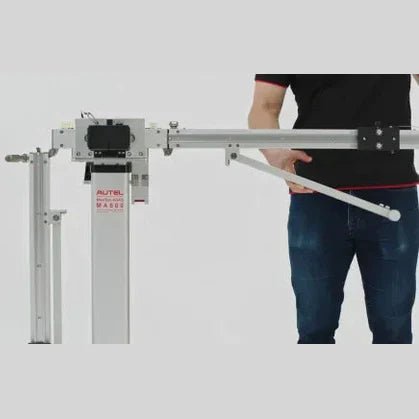

• Foldable, disassembling frame for storage and transport
• Modular frame assembled with accessory tools for the system being calibrated

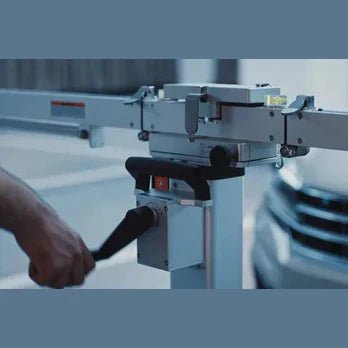

• Adjustable height column with fine-tune knobs
• Compatible with vehicle leveling lifts via the taller-than-average extended adjustable height

Software features

• Regular updates of OE-level diagnostic and calibration software
• Pre-Scan and Post-Scan reports with ADAS module identification
• Tutorial graphics and step-by-step calibration instructions
• Wider vehicle coverage extending camera calibration to AVM and RCW systems with oversize patterns
• Compatible use with leveling lift adjustment

MaxiSYS MS909 S2 tablet

• OE-level coverage for more than 80 US Domestic, Asian, and European vehicle brands, including supercars
• Comprehensive OBDII diagnostics and services through advanced ECU coding and programming
• Automatic system and software updates with real-time push notifications
• Interactive Data Logging for direct Autel Support troubleshooting of diagnostic bugs and errors
• One-stop workshop data management — vehicle records, customer info, and technician notes in one place
• Cloud-based Data Manager backing up customer records, vehicle data, scanner output, and technician notes

Compatibility

Calibration coverage by system and vehicle platform, per Autel:

• LDW patterns/targets: Alfa Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota/Lexus
• Lidar calibration: VW/Audi, Lexus, Toyota
• RCW patterns/package: VW, Nissan, Mercedes
• AVM patterns/systems: Hyundai/Kia, Nissan, Mitsubishi, Toyota, VW, Honda, GM
• Night Vision calibrator package: VW, Mercedes, GM
• Honda Lane Watch target: Honda
• ACC and Radar coverage: ACC Reflector package, Doppler Reflector, Radar Plate, Continental Radar package, Corner Reflector, Hitachi Radar Plate

What’s Included

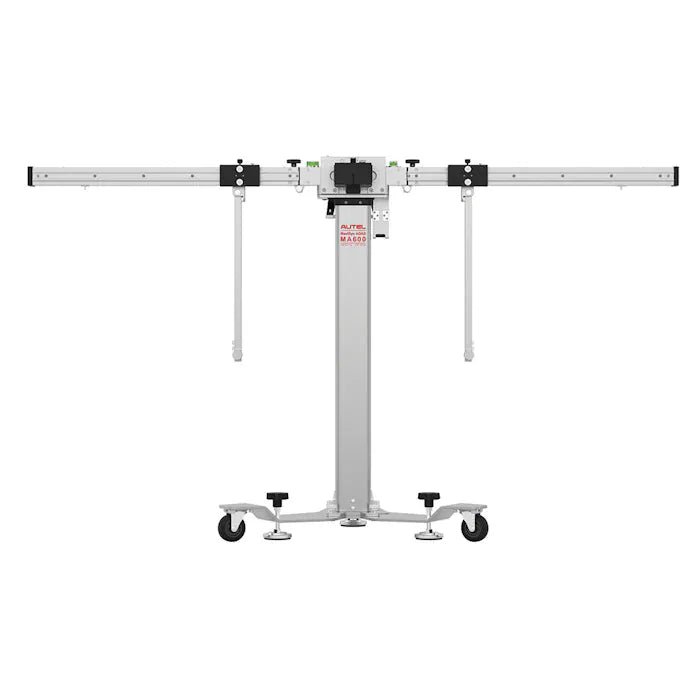

• Autel MA600 mobile calibration frame
• MaxiSYS MS909 S2 diagnostic tablet
• ADAS software upgrade (compatible with MaxiSYS tablets)
• DIGITALADAS add-on for faster frame placement with one person
• Pattern board, wheel clamps, and laser crossbar
• LDW patterns and targets for Alfa Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota/Lexus
• LDW target case
• Target board holder
• Target stand
• ACC reflector package, Doppler reflector, radar plate, Continental radar package, corner reflector, Hitachi radar plate
• Lidar calibration components for VW/Audi, Lexus, Toyota
• RCW patterns/package for VW, Nissan, Mercedes
• Night Vision calibrator package for VW, Mercedes, GM
• AVM patterns/package for Hyundai/Kia, Nissan, Mitsubishi, Toyota, VW, Honda, GM
• Honda Lane Watch target
• Expansion pack for RCW, AVM, and NV system calibrations
• Virtual setup and onboarding training with an Autel ADAS expert

Specifications

Warranty

Autel warrants this product against defects in materials and workmanship for one (1) year from the date of original purchase, with the receipt acting as proof of purchase. In lieu of proof of purchase, the tool or tablet is warranted one (1) year from tool/tablet registration.

Autel’s sole responsibility under the warranty is repair or, at Autel’s option, replacement at no charge with proof of purchase. The warranty does not cover damage from improper use, accident, flood, lightning, cracked screens, broken cases, chemical exposure, liquid damage, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions, or unauthorized disassembly, repair, or modification. Autel is not liable for incidental or consequential damages arising from the use, misuse, or mounting of the scan tool.

Out-of-warranty repairs: the customer is contacted with the repair fee and is responsible for the cost.

Documents

Manuals

• MaxiSYS ADAS MA600 User Manual (PDF)
• ADAS MA600 Calibration Toolset User Manual (PDF)

Brochures

• MaxiSYS MA600 2-Page Brochure (PDF)
• MaxiSYS MA600 All Systems Brochure (PDF)
• MA600 CORE2 Flyer (PDF)
• Autel ADAS Comparison Chart (PDF)

Expansion Packages

• ADASAVM1 Expansion Package (PDF)
• ADASCAL2 Expansion Package (PDF)
• ADASUPGRADE Expansion Package (PDF)
• MA600CAL1 Expansion Package (PDF)
• MA600CAL3 Expansion Package (PDF)
• MA600CAL4 Expansion Package (PDF)
• MA600CASE Expansion Package (PDF)
• MA600LDW3 Expansion Package (PDF)
• MA600NV1 Expansion Package (PDF)
• MA600RAD1 Expansion Package (PDF)
• MS906PROADAS Expansion Package (PDF)
• MS909ADAS Expansion Package (PDF)

Additional setup, scheduling, and freight questions: contact sales@mygaragesupplies.com or call 307-381-1810.
