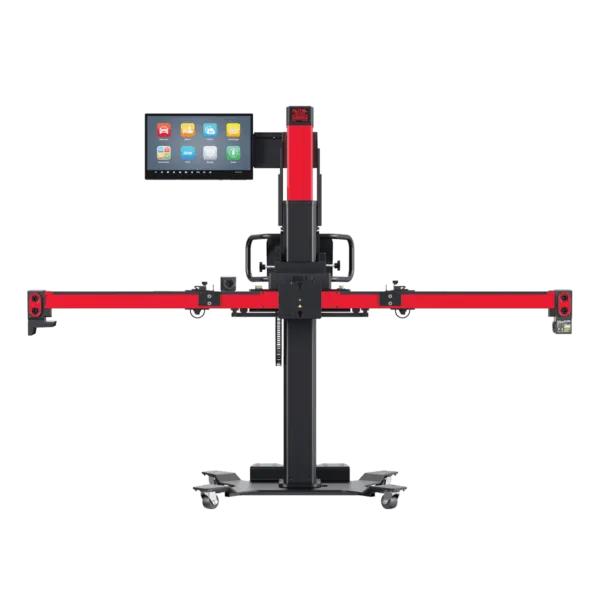

Autel IA900LDW MaxiSYS ADAS Calibration & 4-Wheel Alignment Frame with LDW Targets Package

Description

The Autel MaxiSYS IA900LDW is a dual-purpose calibration frame that performs four-wheel alignment and ADAS calibration from a single platform. The LDW package pairs the IA900WA wheel-alignment and ADAS calibration frame with the Lane Departure Warning target boards required for ADAS camera calibrations, so one piece of shop equipment handles alignment and LDW-camera calibration on the same vehicle without a separate aiming system.

Six high-resolution positioning and tracking cameras in the frame deliver alignment accuracy to 0.02 degrees. Robotic frame movement and self-calibrating cameras keep target placement precise across the calibration sequence, and the cameras automatically monitor vehicle height on the shop lift — compensating for floor variation during ADAS calibration without manual re-leveling.

Alignment coverage spans U.S., Asian, and European vehicles. Illustrated alignment instructions, live readings, required tools, and adjustment locations all display on the included 24-inch touchscreen mounted to the frame, so the technician runs the procedure from the platform itself rather than from a separate workstation.

The IA900LDW sits in the middle of the IA900 lineup — the IA900WA frame and standard accessories with the LDW target set added, but without the MaxiSYS Ultra S2 ADAS Tablet and without the broader All-Systems target equipment. Shops that want the tablet bundled with the LDW frame typically configure up to the Autel IA900AST MaxiSYS All-Systems ADAS Calibration & Wheel Alignment System; shops moving to the newer-generation platform look at the Autel IA1000LDWT Automated ADAS Calibration & Wheel Alignment System.

Features

• Frame performs 4-wheel alignment and ADAS calibration from one platform
• Six high-resolution positioning and tracking cameras in the frame
• Lane Departure Warning target boards included for ADAS camera calibration
• 24-inch touchscreen display attaches directly to the frame
• Alignment coverage for U.S., Asian, and European vehicles
• Robotic frame movement for efficient use and alignment-reading accuracy
• Self-calibrating cameras hold target alignment across the calibration sequence
• Cameras automatically track vehicle height on the lift
• Crossbar control for pitch, roll, yaw, and center
• Folding crossbar locking mechanism
• Built-in cable management
• Consolidated power supply
• MaxiSYS tablet holder with built-in charger (tablet sold separately)
• MaxiSYS software interface monitors and displays alignment measurements
• Illustrated alignment instructions, live readings, required tools, and adjustment locations on a single screen

IA900 Wheel Alignment Software

• Vehicle inspection of tires, brakes, suspension, steering, and more
• Mark service recommendations and attach photos, videos, and notes
• Live alignment reading display
• View all alignment results, rear-only, front-only, chassis symmetry, and tire diameter
• Illustrated alignment guide, live readings, required tools, and adjustment locations on a single screen

IA900 ADAS Calibration Software

• Frame placement with target-position validation
• Step-by-step illustrated full-color instructions walk the user through the ADAS calibration process
• Set ADAS calibration target height with the push of a button

Compatibility

Alignment coverage spans U.S., Asian, and European vehicles. The frame operates between a 6-inch minimum height and a 7-foot maximum height, working with most shop lift configurations. Year-and-make coverage details for the wheel-alignment software are listed in the user manual in the Documents section.

What’s Included

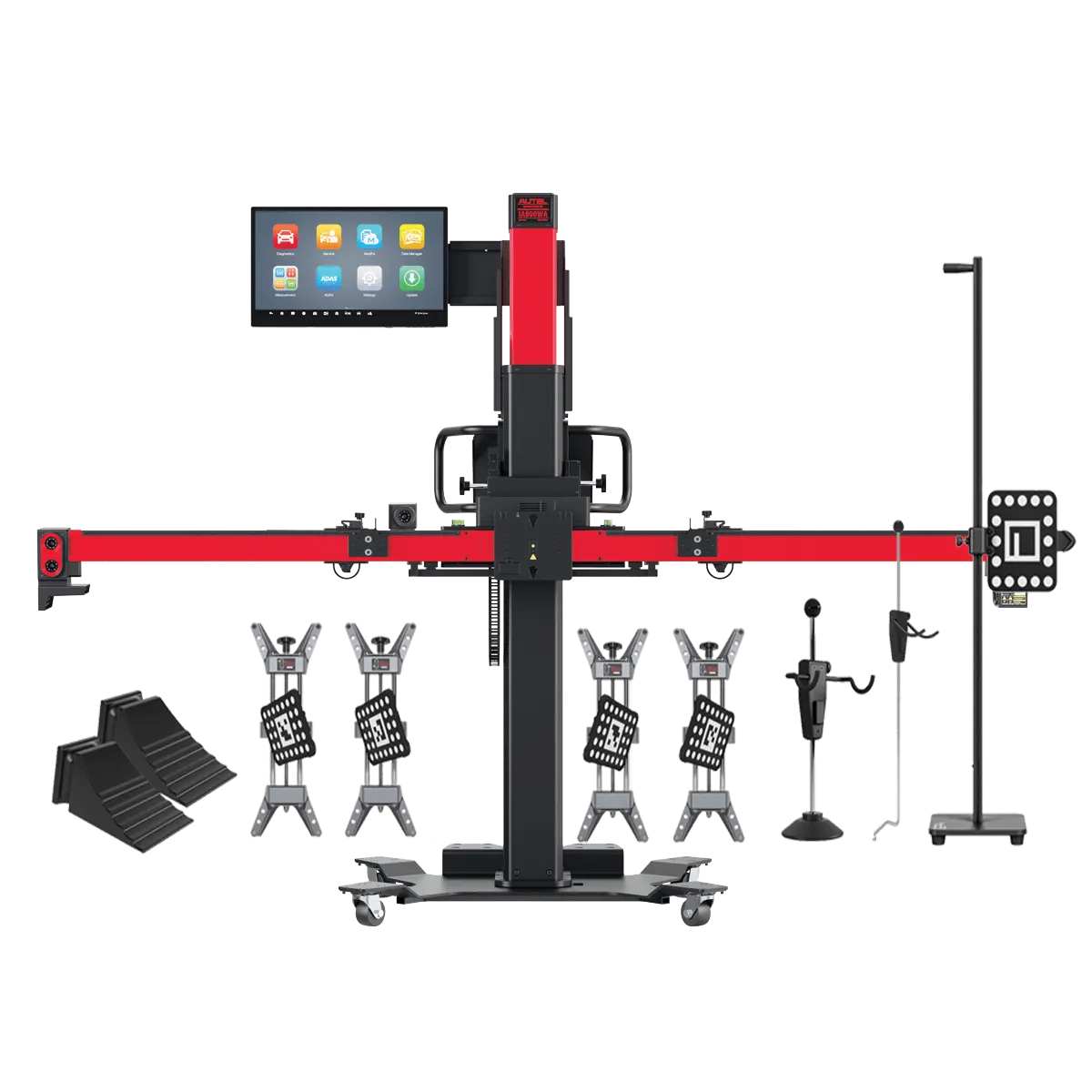

• IA900WA Wheel Alignment + ADAS Calibration Frame
• 24-inch touchscreen display
• Lane Departure Warning (LDW) target panels and boards
• 4 × Wheel Clamps with camera targets
• 4 × Wheel Targets
• 1 × Distance Target
• 1 × Steering Wheel Lock
• 2 × Wheel Chocks
• 1 × Brake Lock

Specifications

Warranty

Autel warrants the IA900LDW free from defects in materials and workmanship for one year from the date of original purchase. The store or dealer receipt acts as proof of purchase; in the absence of a receipt, the tool is warranted one year from tool or tablet registration.

Autel’s responsibility under the warranty is limited to repair or, at Autel’s option, replacement at no charge with proof of purchase. The warranty does not apply to damage caused by improper use, accident, flood, lightning, or alteration or repair by anyone other than the Manufacturer Service Center. Autel is not liable for incidental or consequential damages arising from the use, misuse, or mounting of the equipment.

Out-of-warranty repairs are quoted to the customer before any work begins.

FAQ

Is a MaxiSYS tablet included with the IA900LDW package?

No. The IA900LDW package includes the IA900WA frame with its onboard 24-inch touchscreen, the standard accessory kit, and the LDW target boards — but the MaxiSYS Ultra S2 ADAS Tablet is not part of this package. The frame’s 24-inch touchscreen runs the MaxiSYS interface for both alignment and ADAS calibration. Shops that want the tablet bundled with the LDW frame typically configure up to the IA900AST.

What vehicles does the wheel alignment cover?

Alignment coverage includes U.S., Asian, and European vehicles. Year-and-make coverage details are part of the MaxiSYS software set — refer to the user manual in the Documents section for the current coverage matrix.

What is the alignment accuracy?

0.02 degrees, derived from the six high-resolution positioning and tracking cameras in the frame.

How does the frame compensate for an uneven shop floor?

The cameras automatically monitor vehicle height on the shop lift and compensate for floor variation in all directions during ADAS calibration. The frame operates between a 6-inch minimum height and a 7-foot maximum.

What is the difference between the IA900LDW and the IA900 All-Systems package?

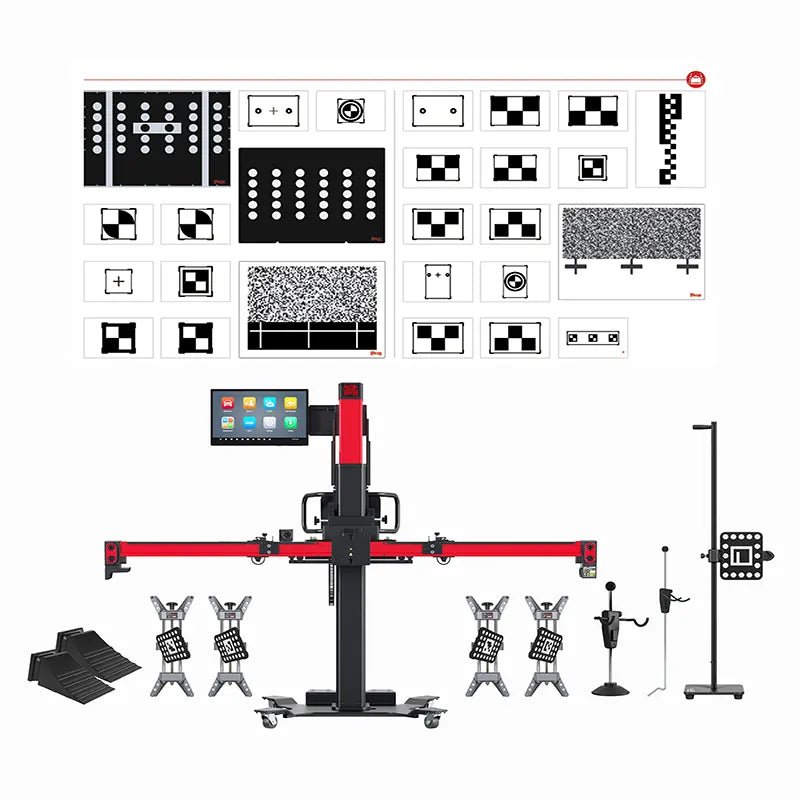

The IA900LDW package ships with the IA900WA frame, standard accessories, and the Lane Departure Warning target boards. The All-Systems package adds the broader calibration target equipment shown in the IA900 lineup chart. Both run on the same IA900WA frame; the difference is which target set ships with the package. The Documents section includes the ADAS Comparison Chart that maps each package row to its included targets.
