Autel CVMAGLS CV ADAS Glass Calibration Package — MA600 Mobile Frame + MS909CV Tablet

Description

The Autel CVMAGLS CV ADAS Glass Package extends an existing MA600 Mobile ADAS Calibration System to Class 3-5 and Class 6-8 commercial vehicles. The package adds the diagnostic tablet, calibration pattern, and bracket needed to perform dynamic and static ADAS calibrations on heavy-duty trucks alongside the static camera calibrations a shop already runs on Mercedes-Benz Sprinter and Ram ProMaster vans through the MA600 LDW pattern set.

At the center of the kit is the MaxiSYS 909CV advanced diagnostic tablet, an Autel commercial-vehicle scan platform shipped with one year of free software updates. The included CV Pattern is the calibration target used by Autel for Bendix-Wingman camera systems on commercial trucks, and the supplied pattern bracket mounts the CV Pattern to the MA600 frame so the existing mobile-calibration workflow carries over without rebuilding a setup for every job.

Static camera calibrations of Mercedes-Benz Sprinter vans and Ram ProMaster vans are supported with the applicable Lane Departure Warning patterns that ship with the MA600 LDW packages — those patterns are not part of this kit and must already be on hand.

Features

• Compatible with the Autel MA600 Mobile ADAS Calibration System
• Includes the MaxiSYS 909CV advanced diagnostic tablet with one year of free software updates
• Enables dynamic and static ADAS calibration of Class 3-5 and Class 6-8 commercial vehicles
• Supports static camera calibrations of Mercedes-Benz Sprinter vans and Ram ProMaster vans when the applicable MA600 LDW patterns are on hand
• CV Pattern included for camera calibration of Bendix-Wingman systems
• Pattern bracket included for attaching the CV Pattern to the MA600 frame
• One-year limited warranty on package components, including the MS909CV

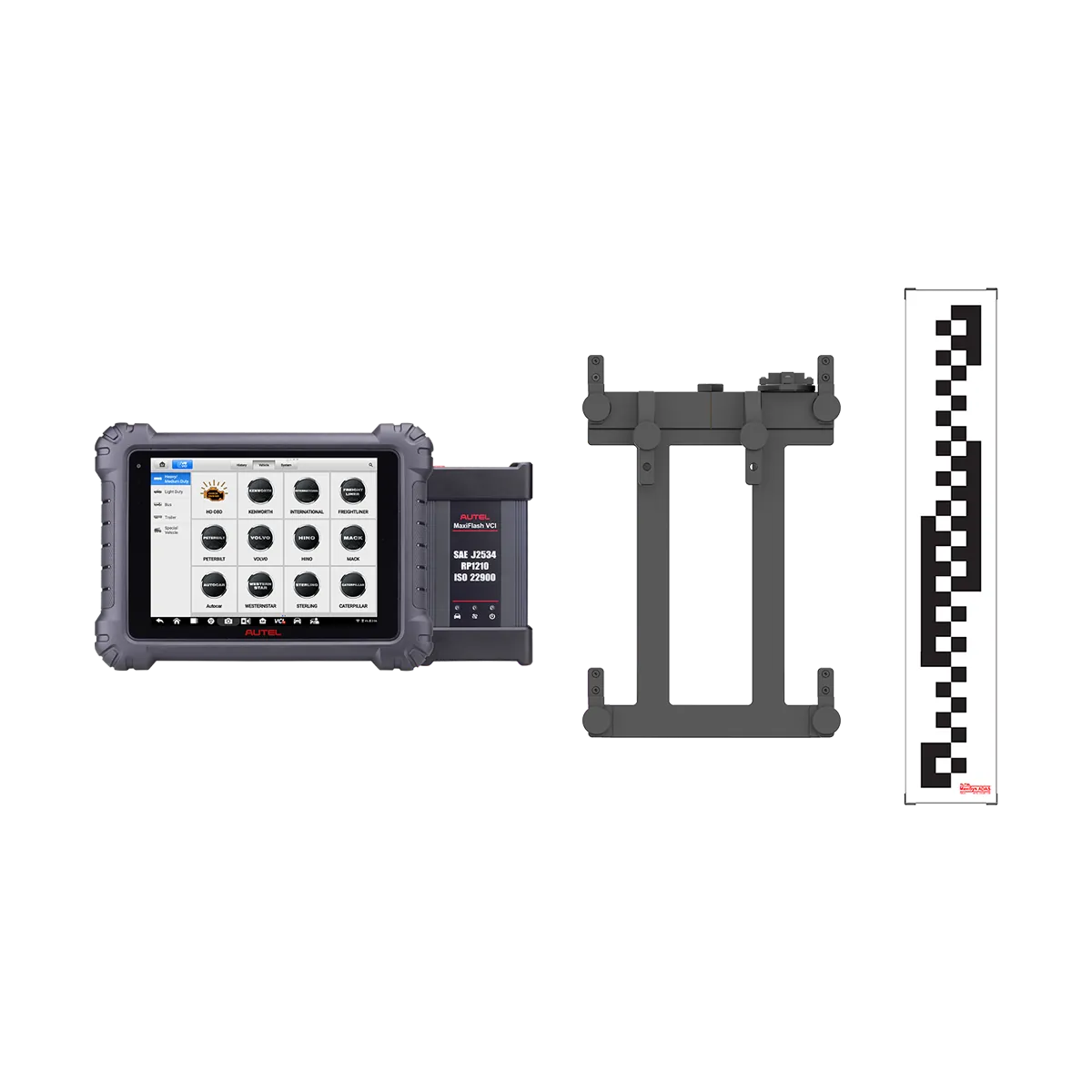

What’s Included

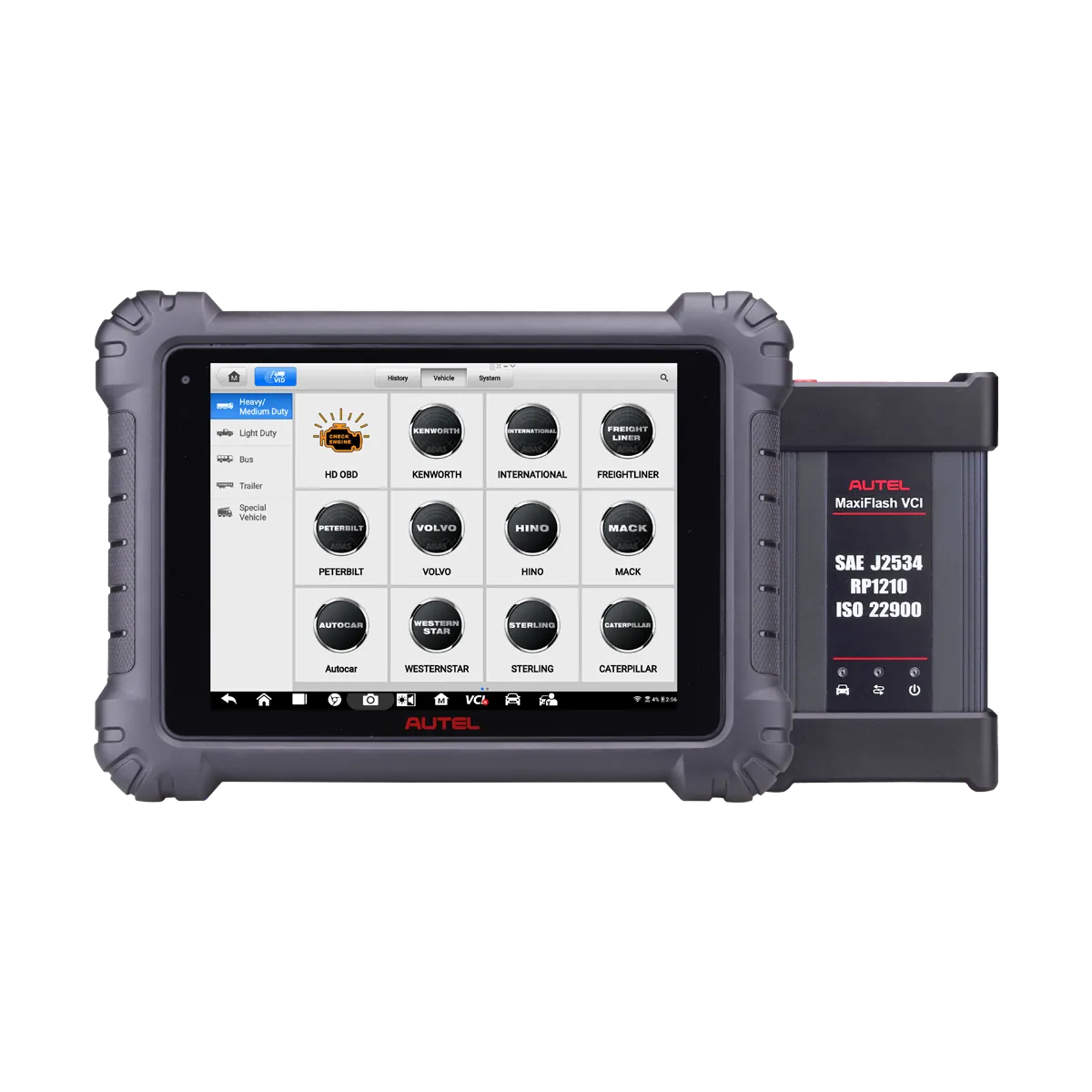

• MaxiSYS 909CV advanced diagnostic tablet (with one year of free software updates)

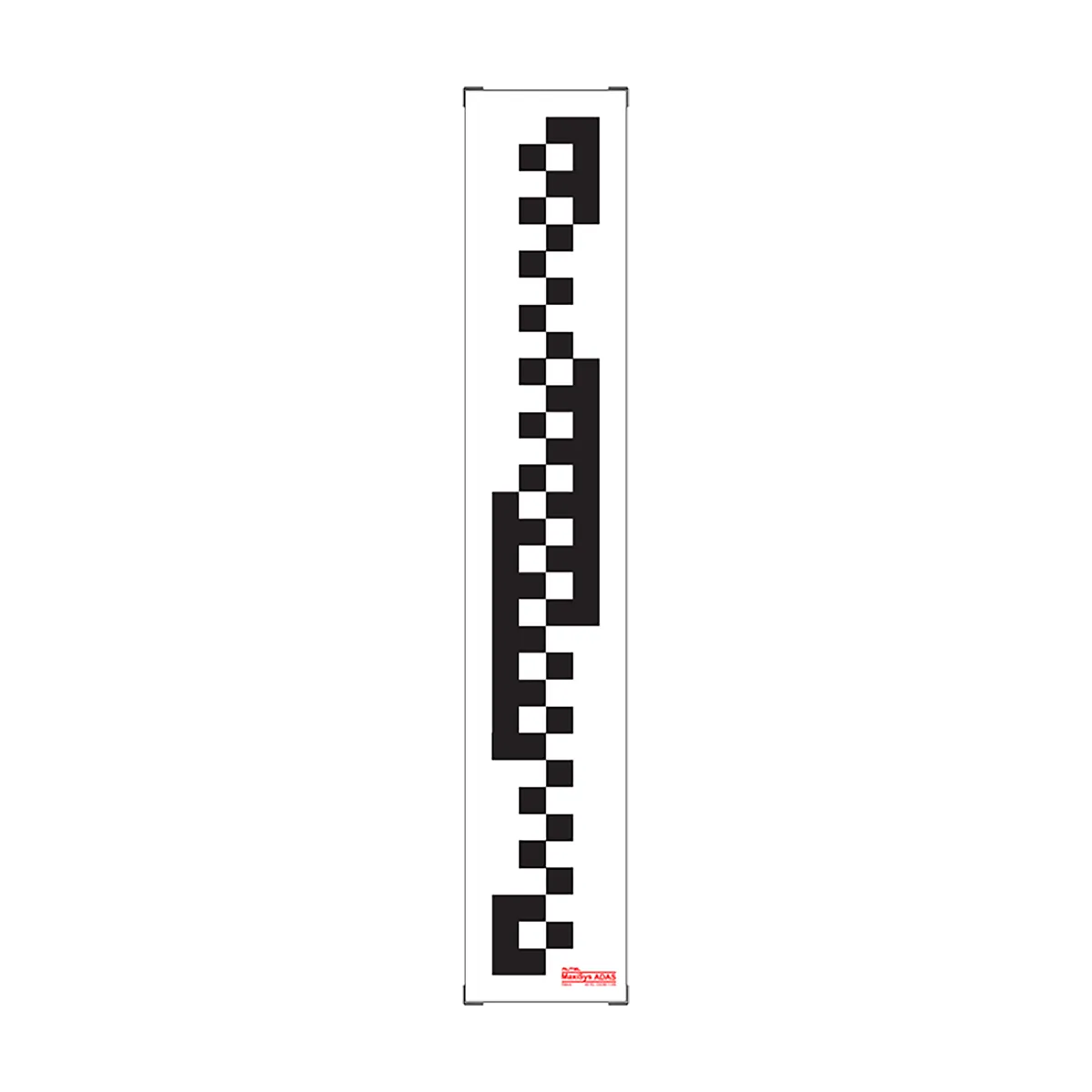

• CV Pattern (Bendix-Wingman calibration target)

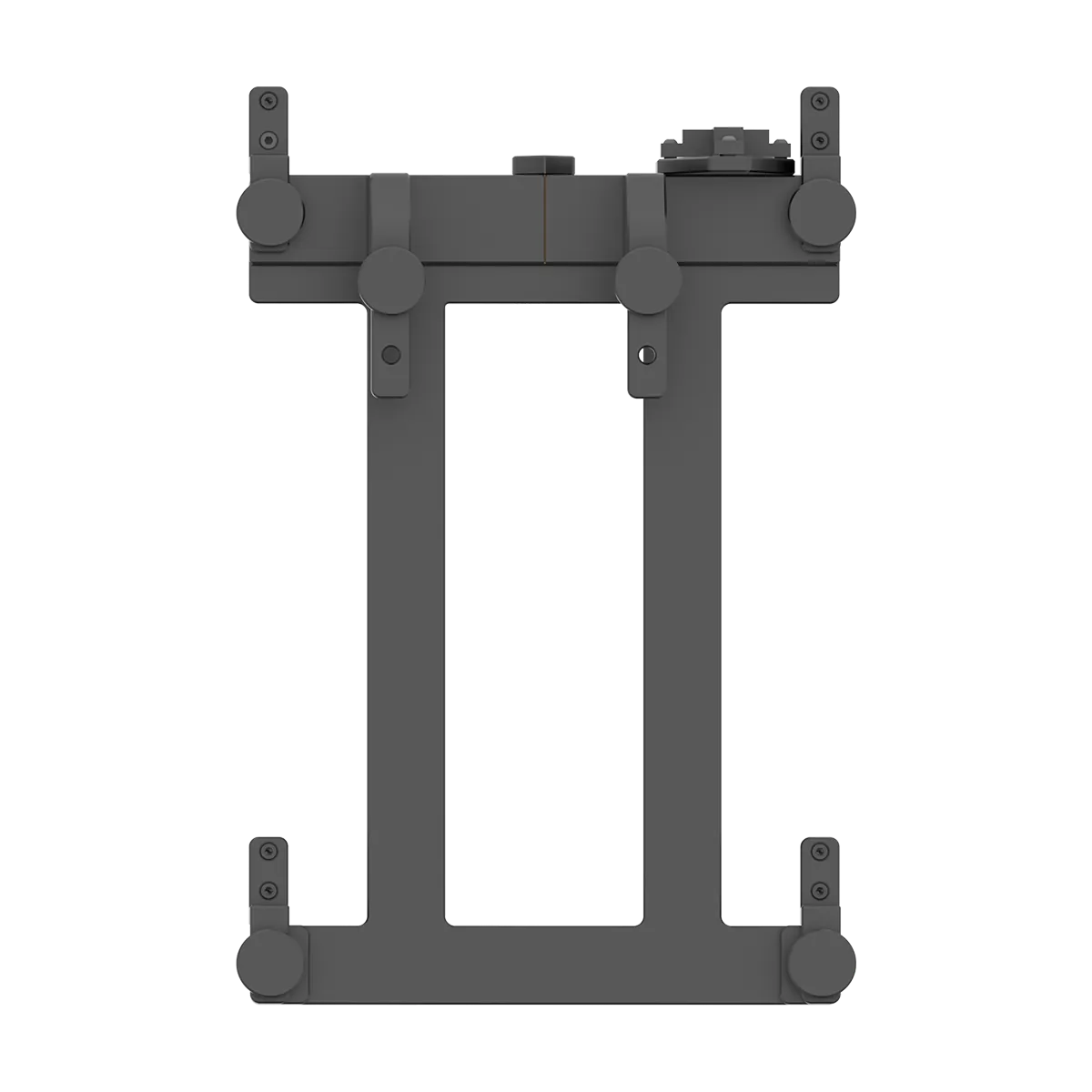

• Pattern bracket (for attaching the CV Pattern to MA600)

The MA600 frame and the MA600 LDW pattern set are not included — this is an expansion package for shops that already operate an MA600.

Warranty

One-year limited warranty covers the package components, including the MaxiSYS MS909CV diagnostic tablet.

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
