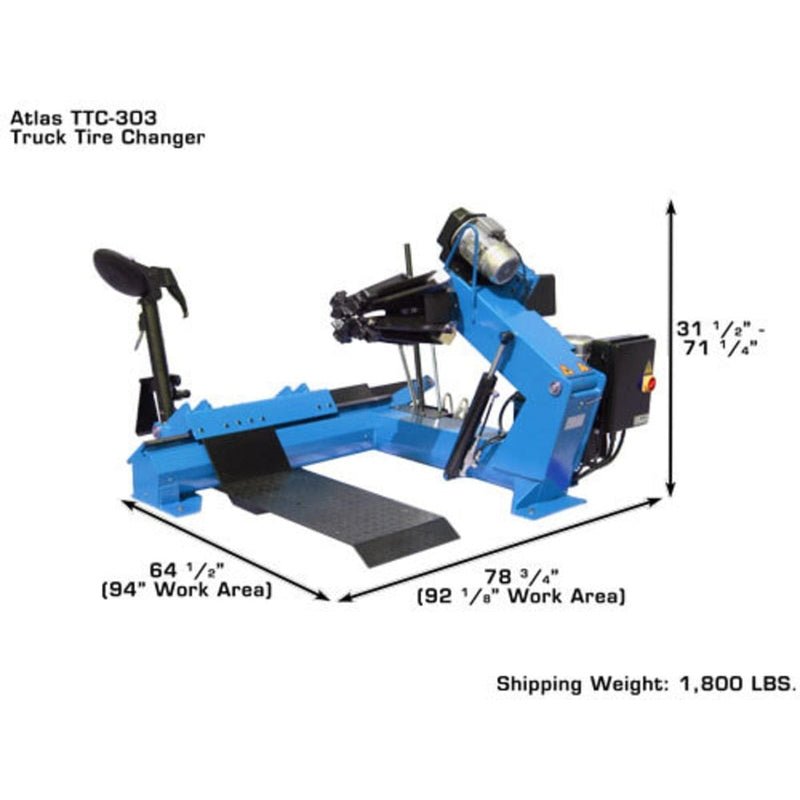

The Super Duty Atlas® TTC303 truck tire changer is designed and engineered to handle rim sizes from 4-1/4 inches to 56 inches and tire diameters in excess of over 90 inches. The Atlas® Truck Tire Changer can easily accommodate tires with a maximum width of up to 42 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.
This Atlas® TTC303 truck tire changer is designed for high volume truck tire shops that demand dependability and durability in their equipment.

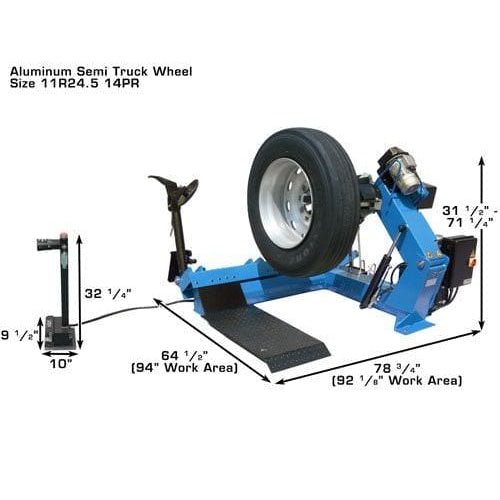

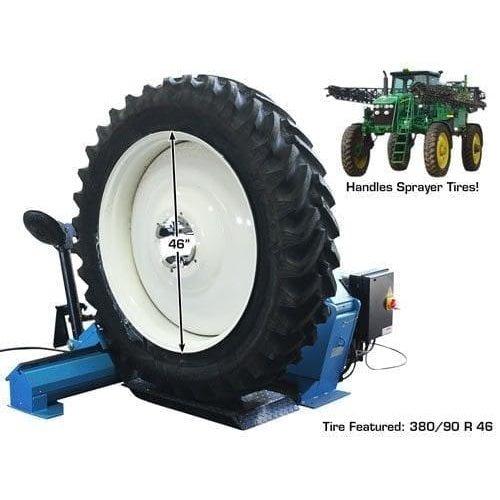

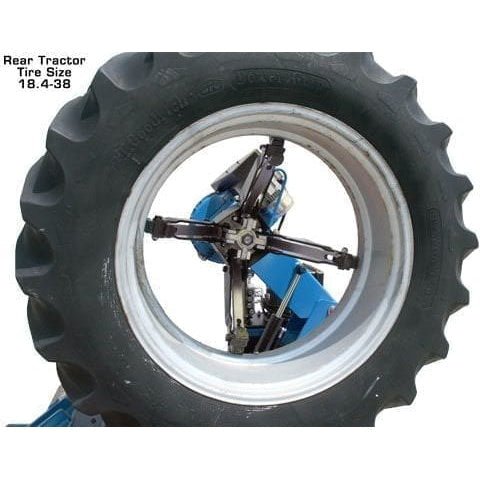

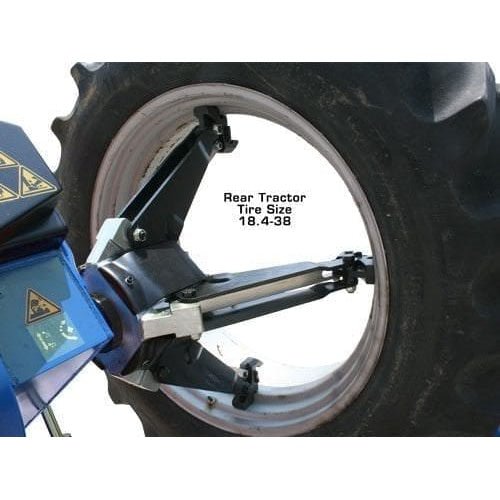

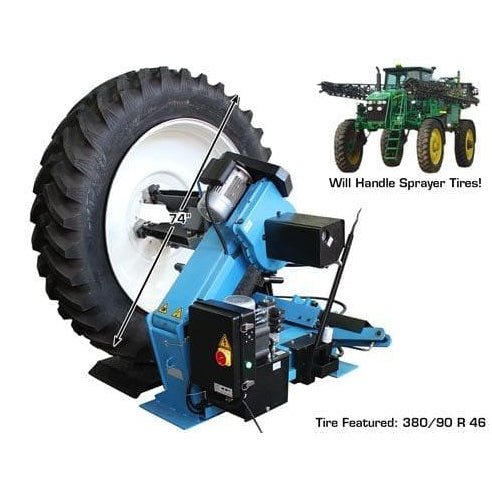

The Atlas® TTC303 handles off-road tires, agricultural tires, super single tires, and skidder tires with ease. The Atlas® TTC303 truck tire changer is the perfect choice for the large truck tire center that does high volume truck tire work on standard over the road wheel assemblies and demands the capabilities to change agricultural and off road wheel assemblies.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.
Features
- Super Duty Truck Tire Changer
- 220VOLT 1 PHASE ELECTRIC
- Handles rims from 14″ to 56″ and tire diameters in excess of 90″
- Accommodates tires with a max width of up to 42″

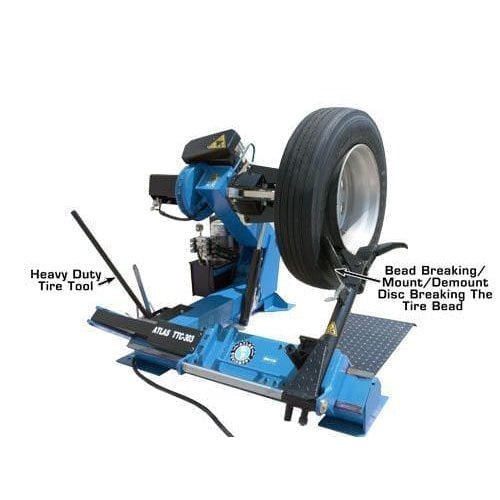

- Bead Breaker

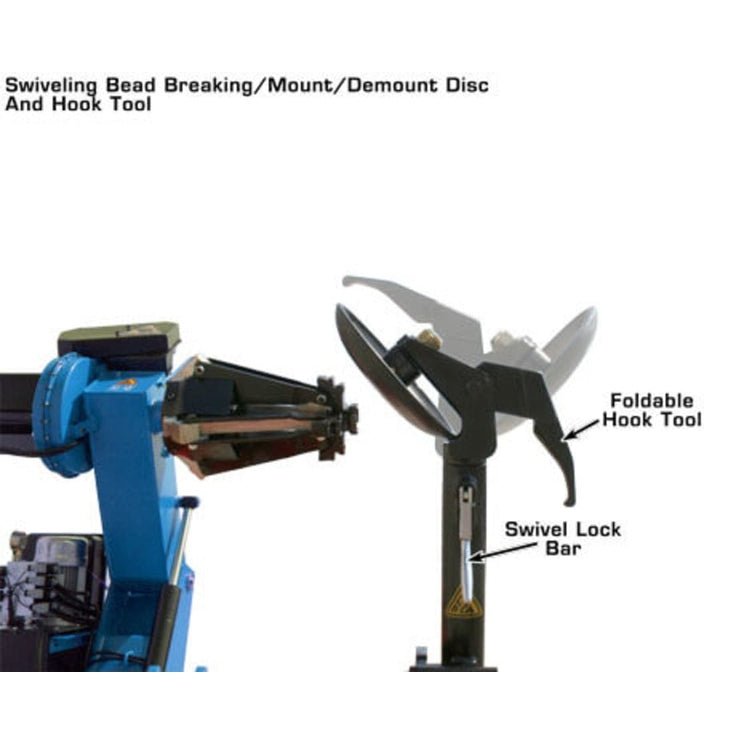

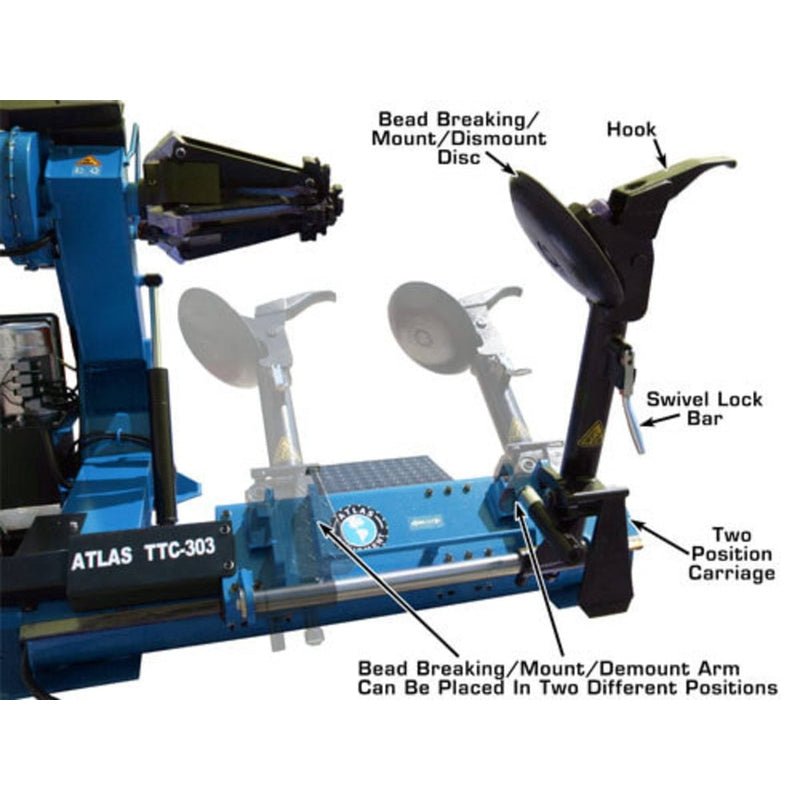

- Mount/Demount Head

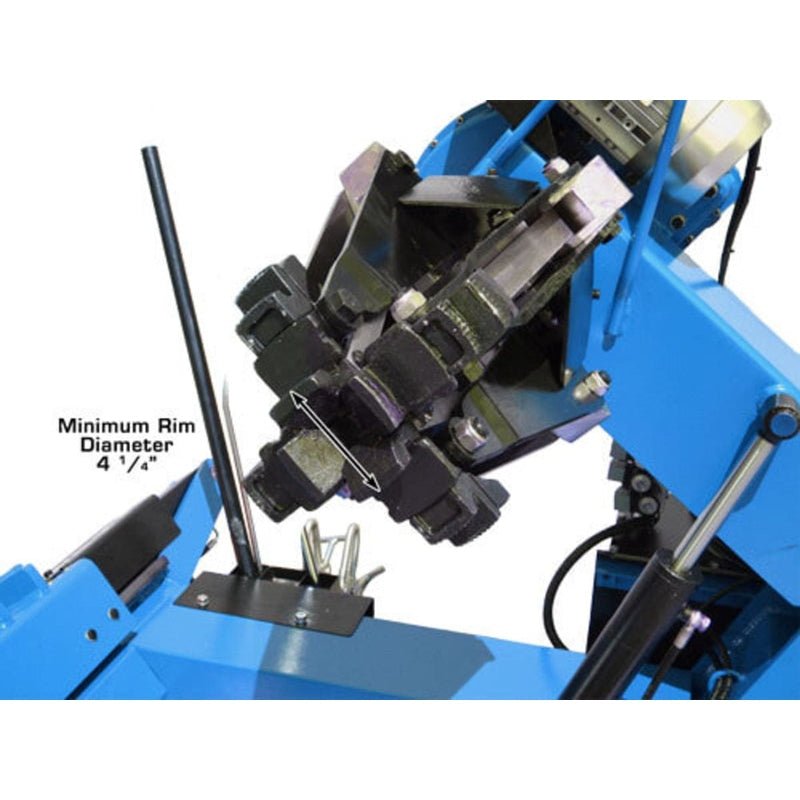

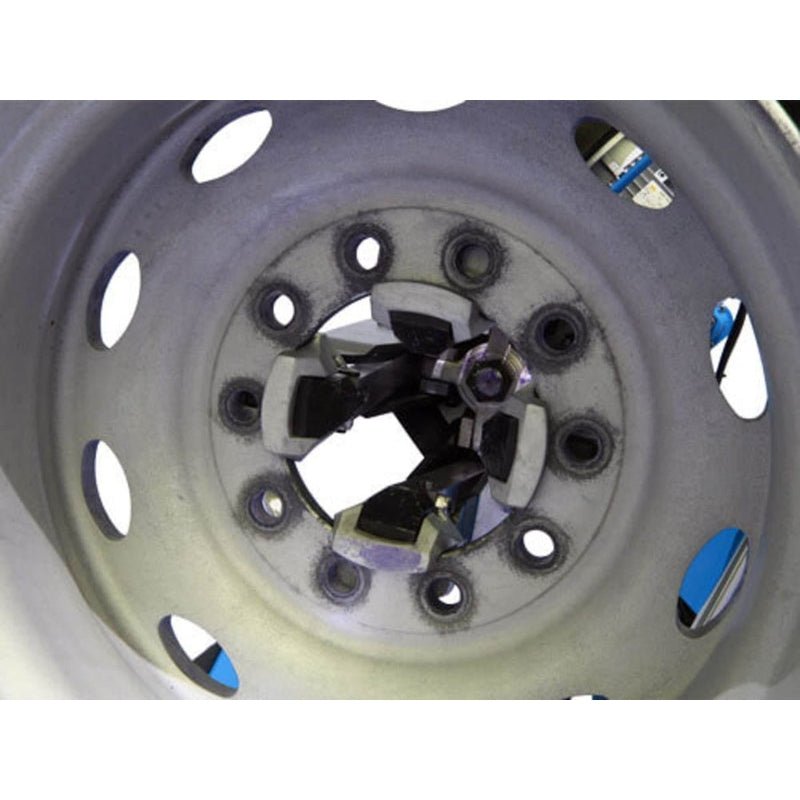

- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions

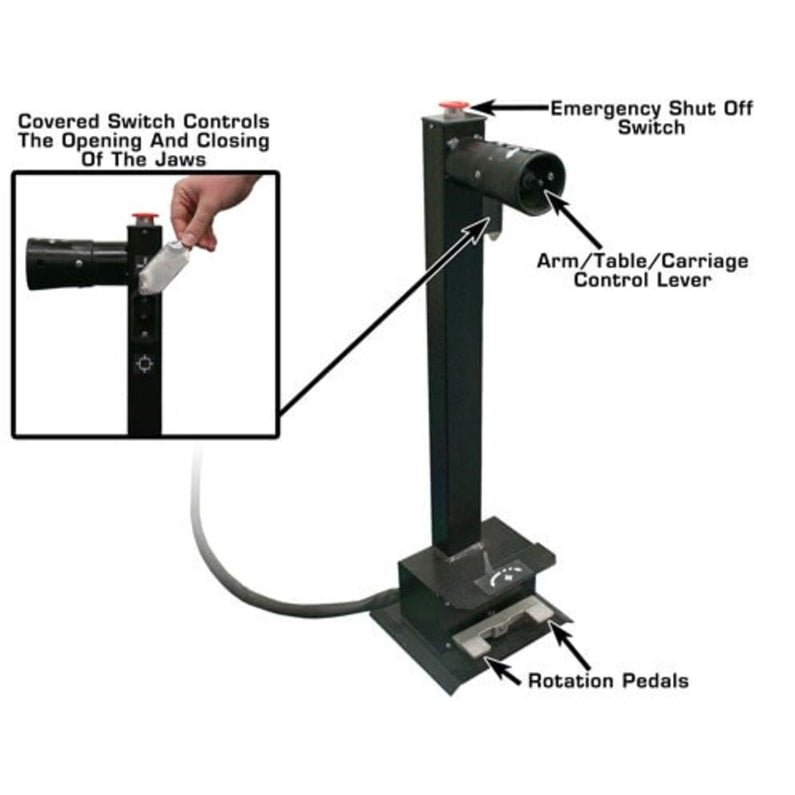

- Wired Mobile Control Unit

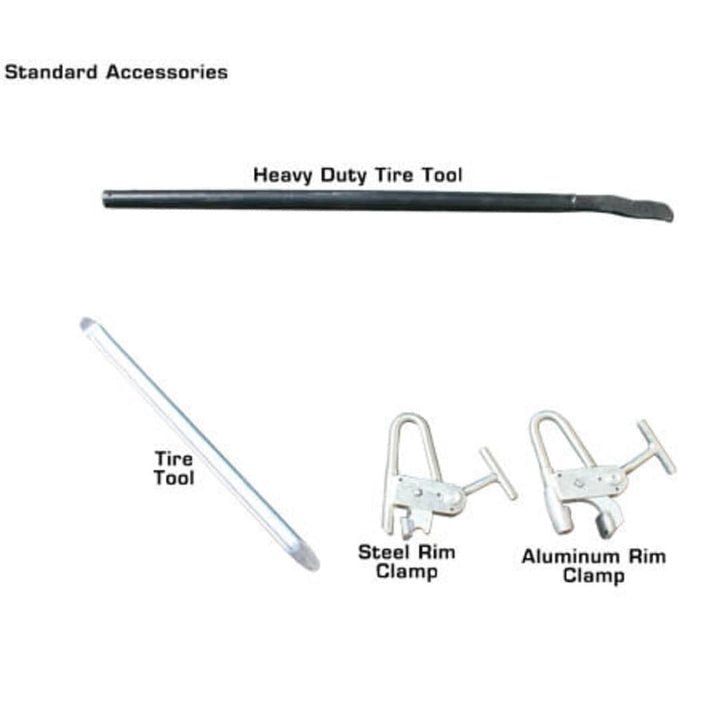

- Heavy Duty Tire Tool Included

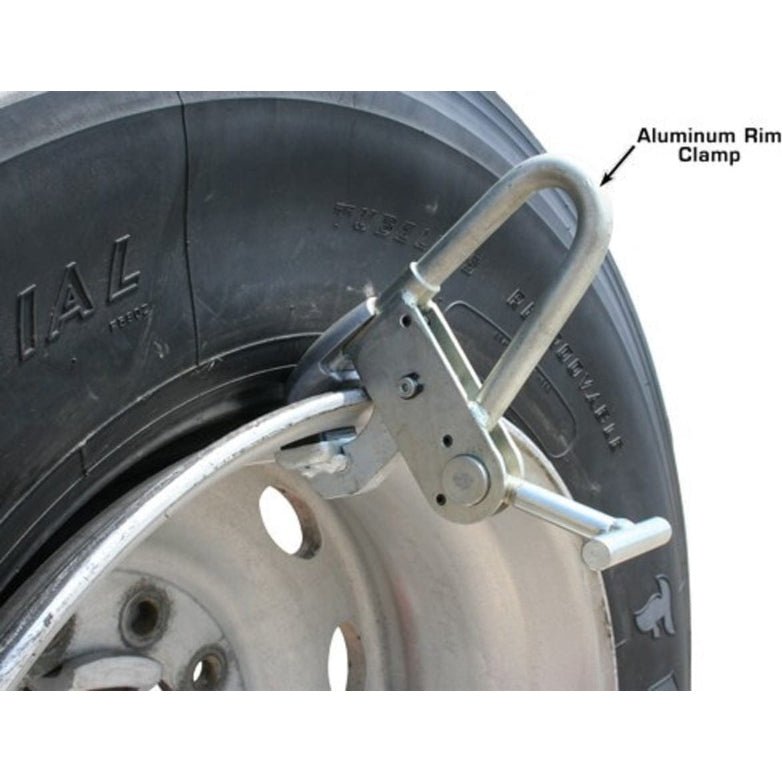

- Rim Clamps for Steel and Alloy Wheels Included

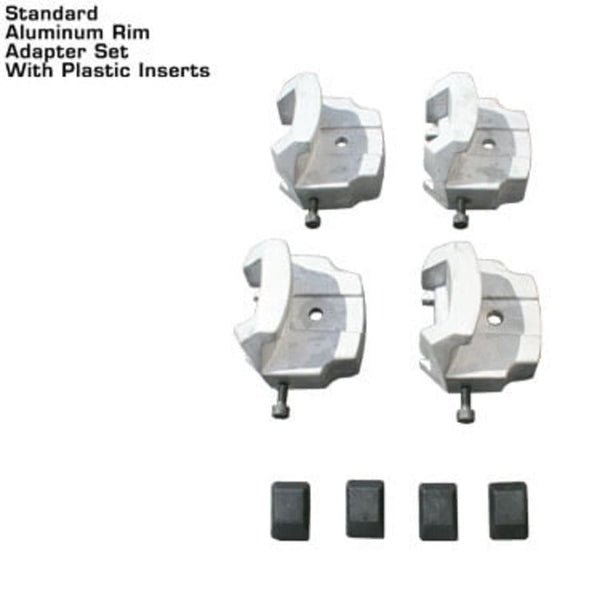

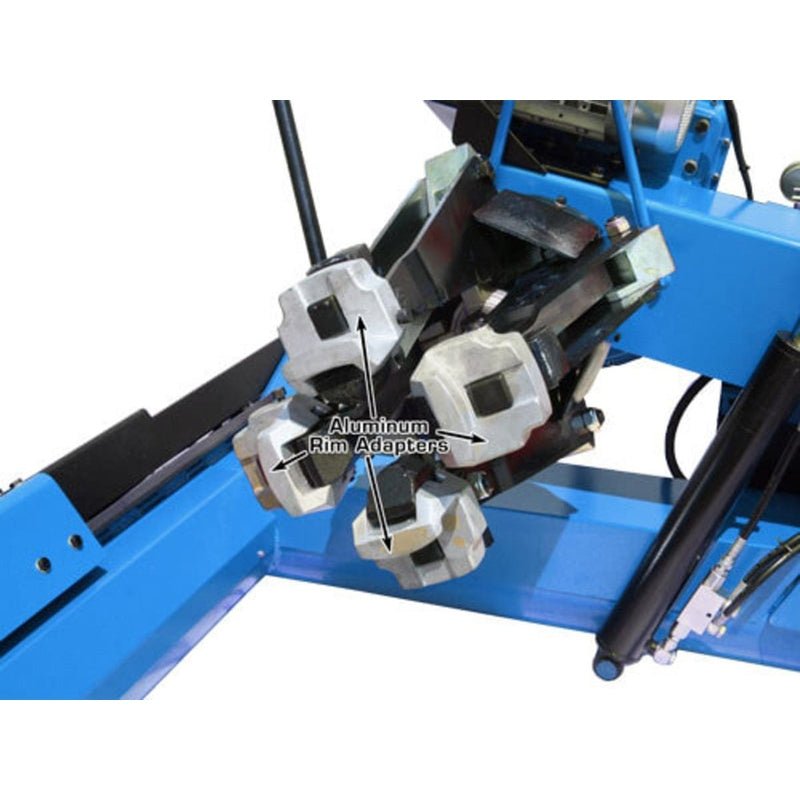

- Alloy Rim Adapter Set w/ Plastic Inserts Included
- 1 Year Parts Only Warranty
Specifications
Atlas® TTC303 Specifications

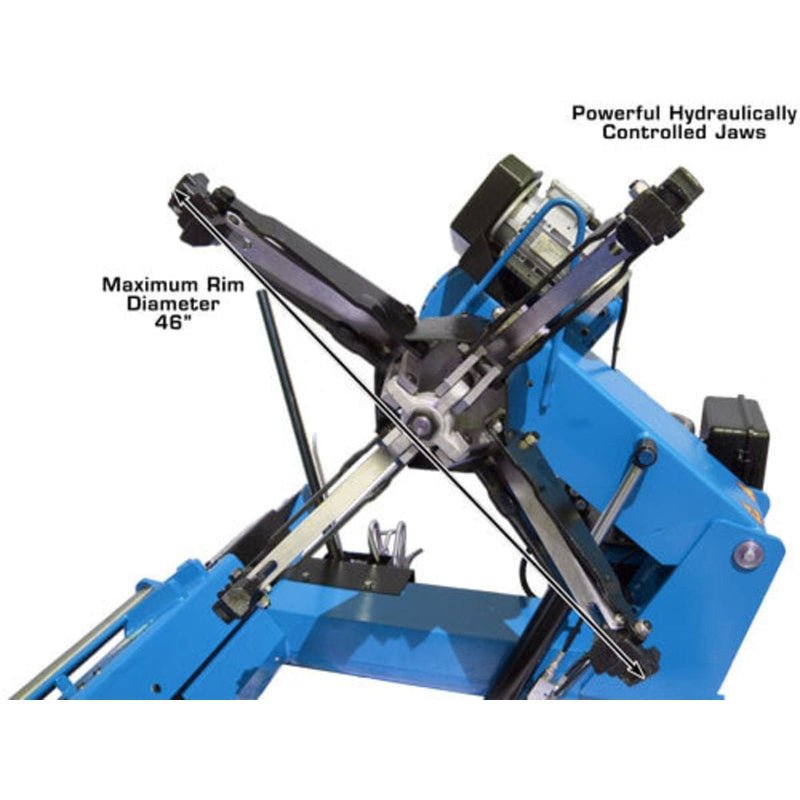

| Rim Clamping Range | 14″ – 46″ |

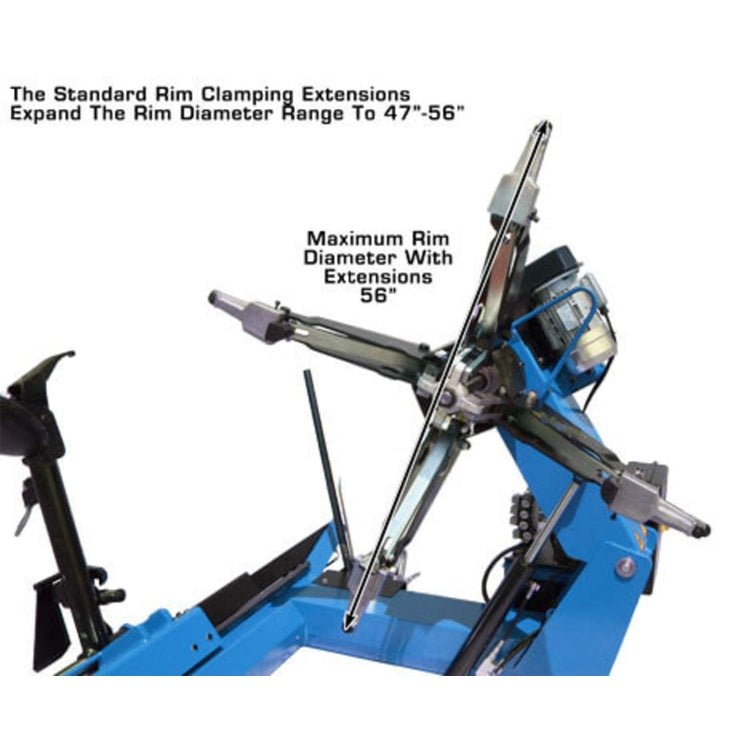

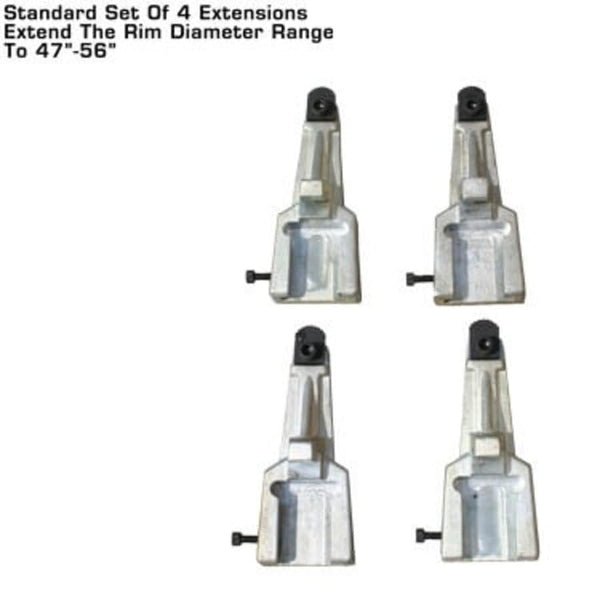

| Max Clamping Size W/ Extensions | 56″” |
| Max Wheel Weight | 3,300 lbs. |

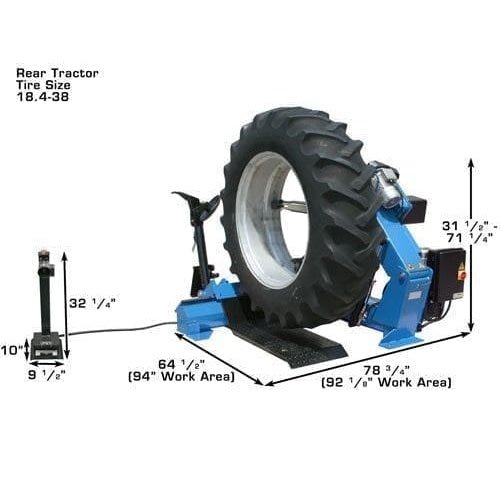

| Max Tire Diameter | 90 1/2″ (7′ 6 1/2″) |
| Max Tire Width | 42″ (3′ 6″) |
| Clamping Power | 13,173 lbs. |
| Operating Pressure | 0-1885 PSI |
| Acoustic Pressure | <70dBA |
| Bead Breaker Force | 5930 lbs. |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single Piece Frame w/ Solid Floor Plate |

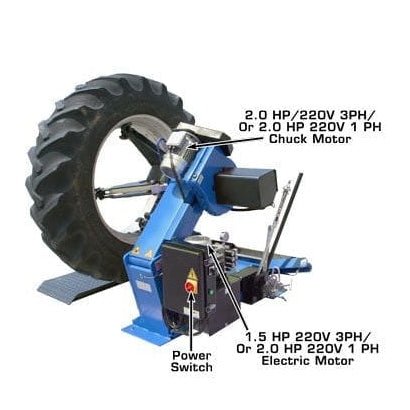

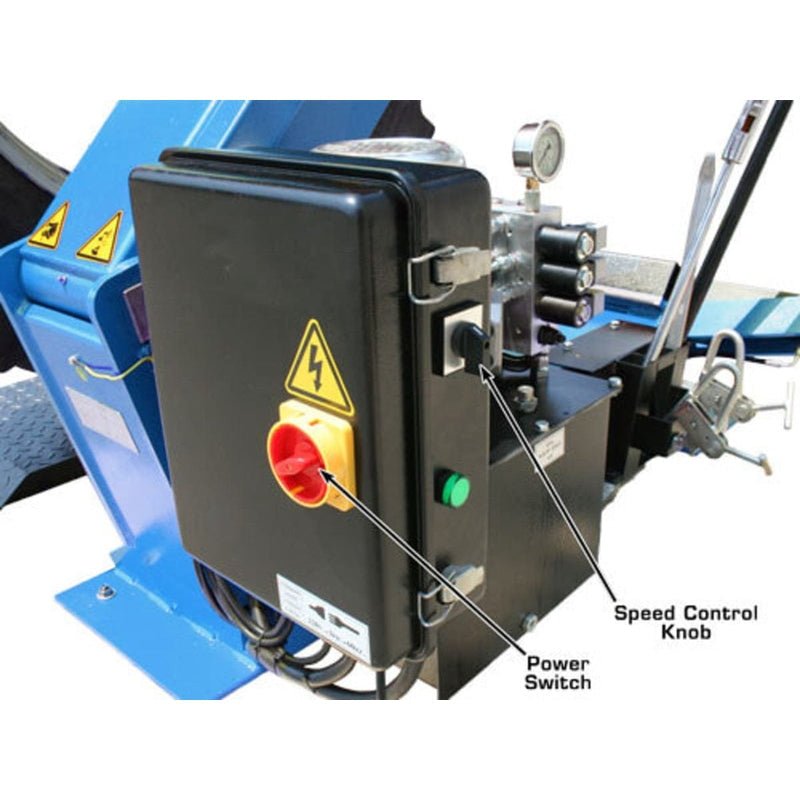

| Hydraulic Motor Power | 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required |
| Chuck Motor Power | 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required |

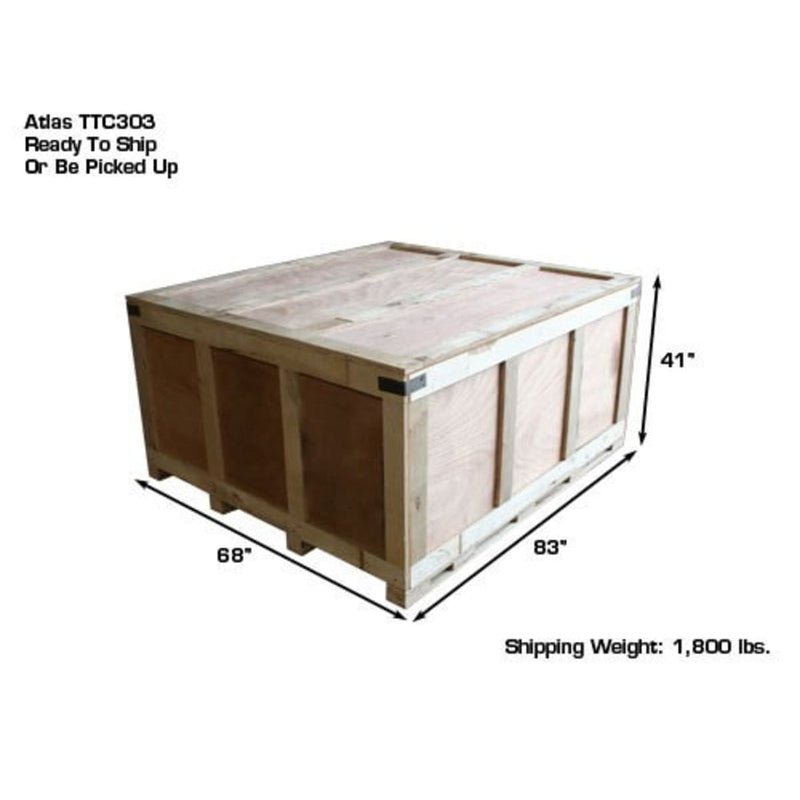

| Shipping Weight | 1,800 lbs. |
