Description
Description

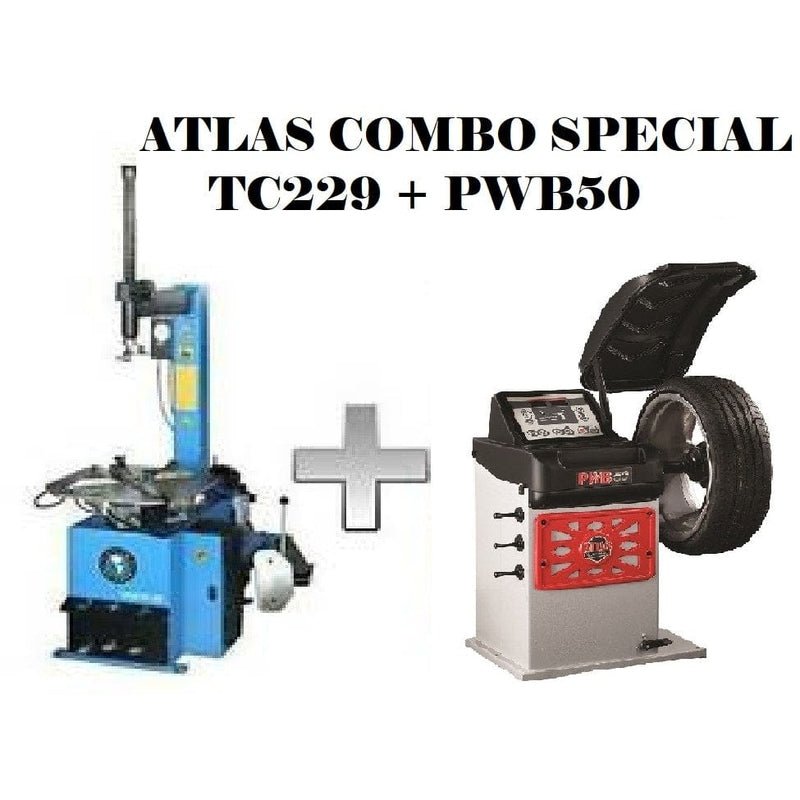

This combination package includes the Atlas® TC229 rim-clamp swing arm tire changer & the Atlas® Platinum PWB50 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and the Atlas® TC229 carries a 1 year parts only warranty and the Atlas® Platinum PWB50 carries an extended 2 year parts only warranty.
Features

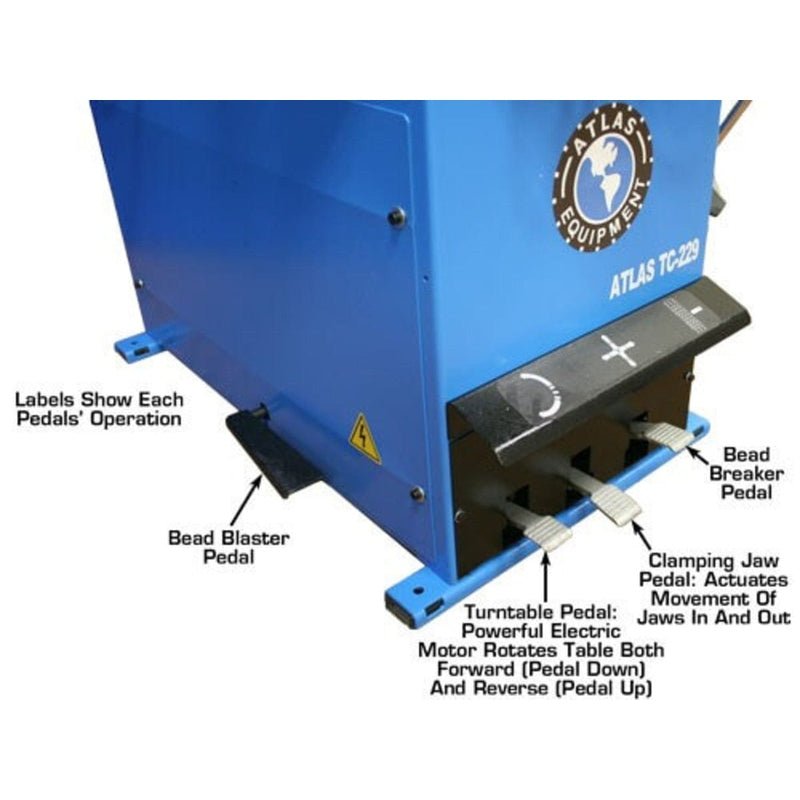

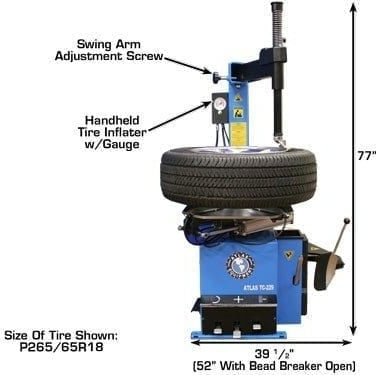

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

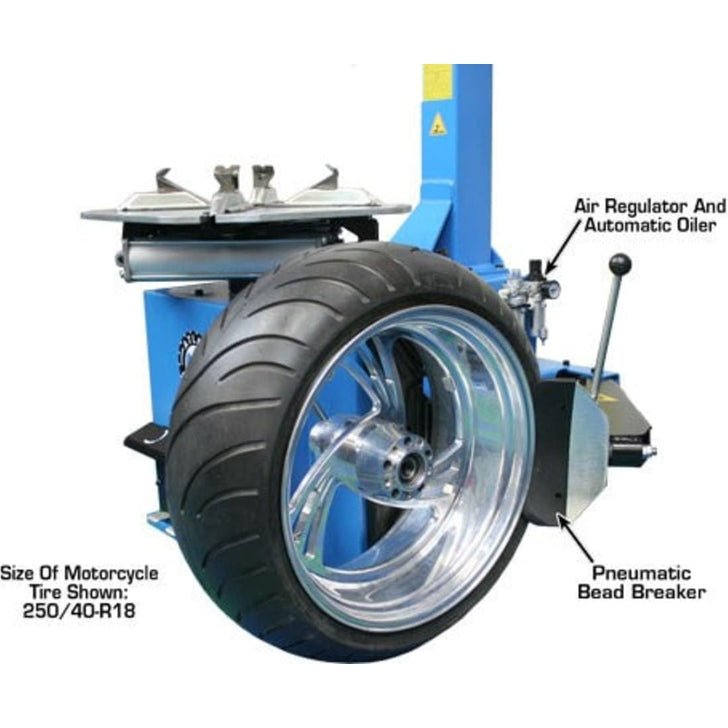

- Air operated jaws & bead breaker (external air supply required)

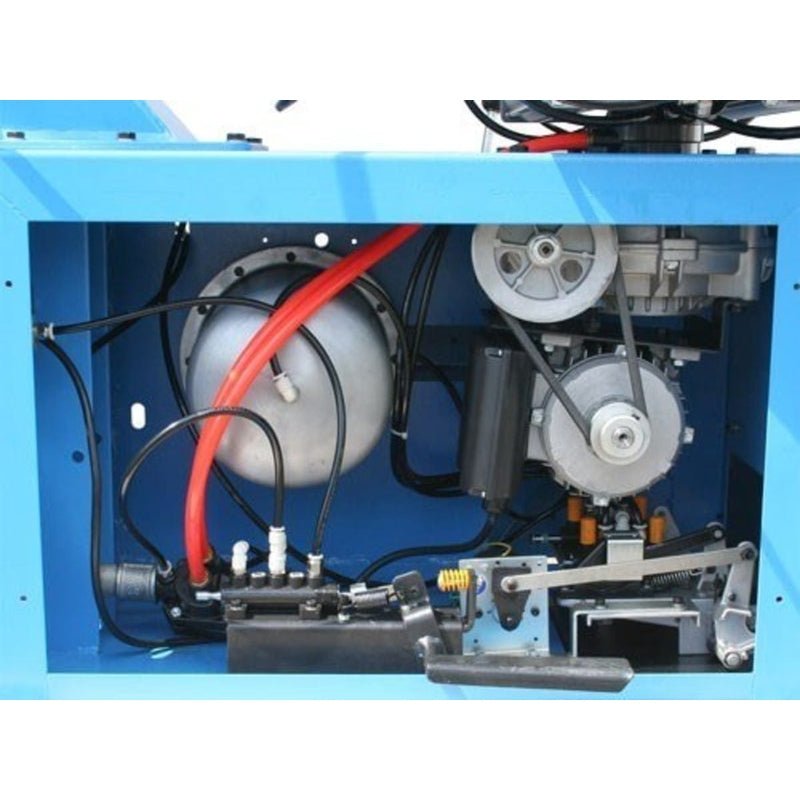

- Electric turntable
- Adjustable jaws, three mounting positions

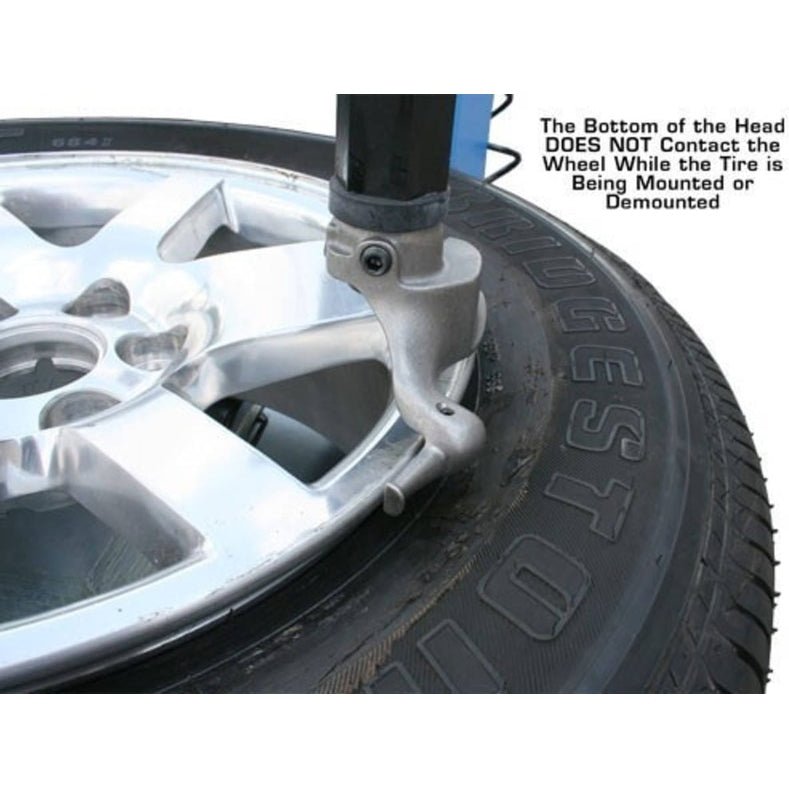

- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included

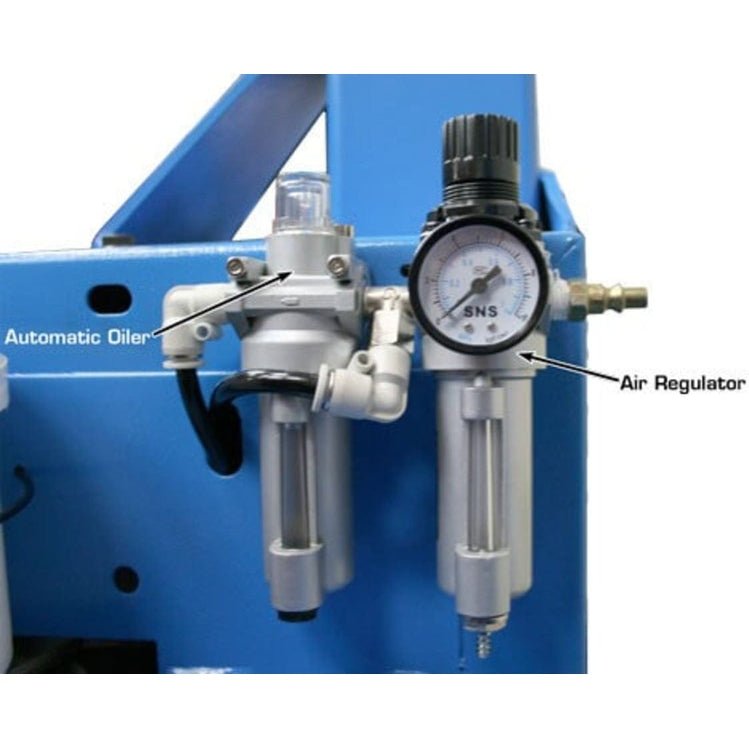

- Filter/Regulator/Lubricator Included

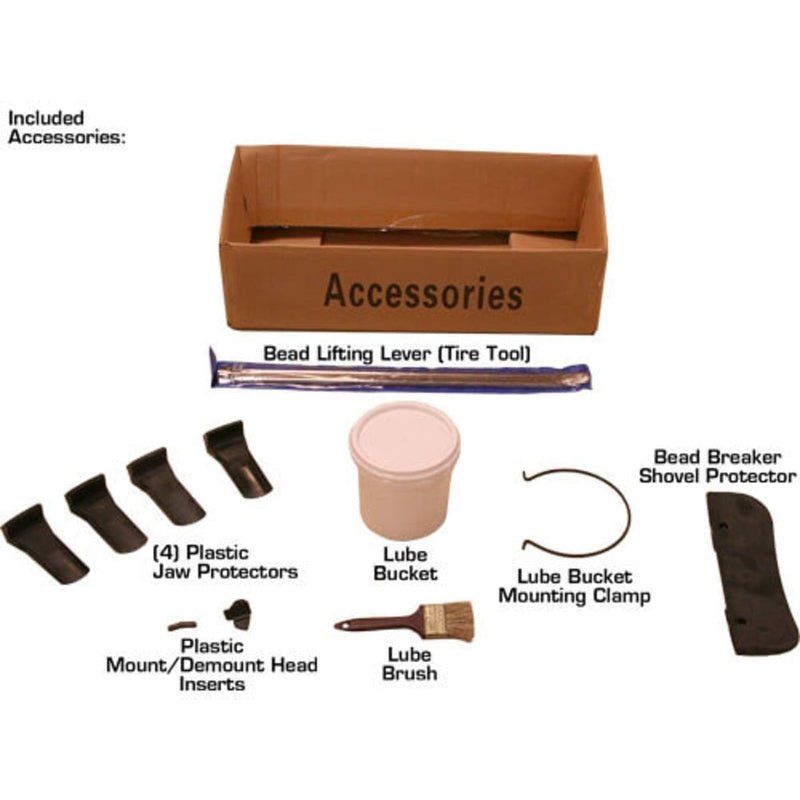

- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included

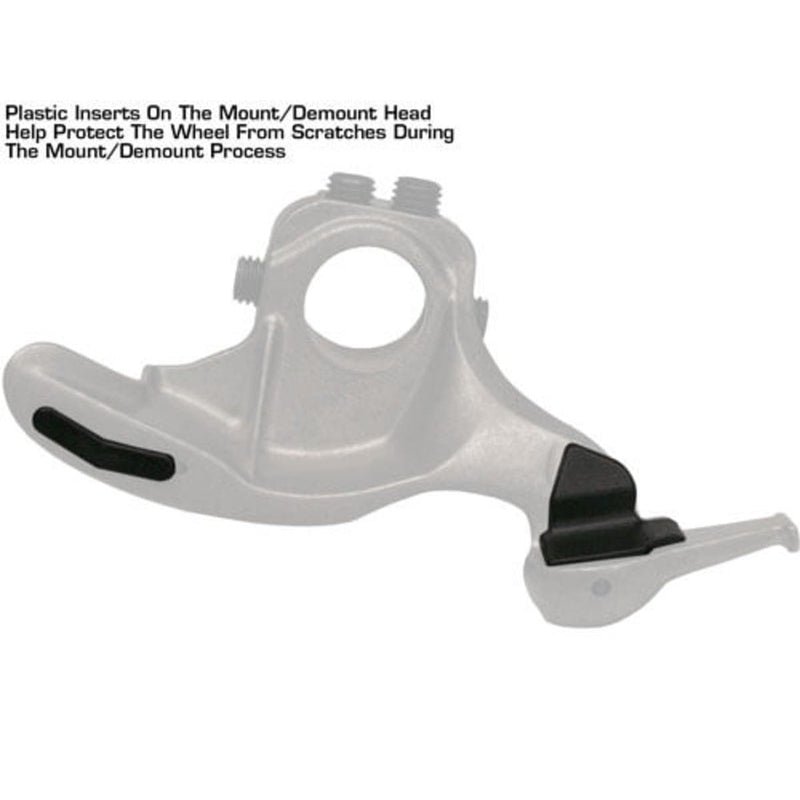

- Multiple Replacement Plastic Inserts for M/D Head Included

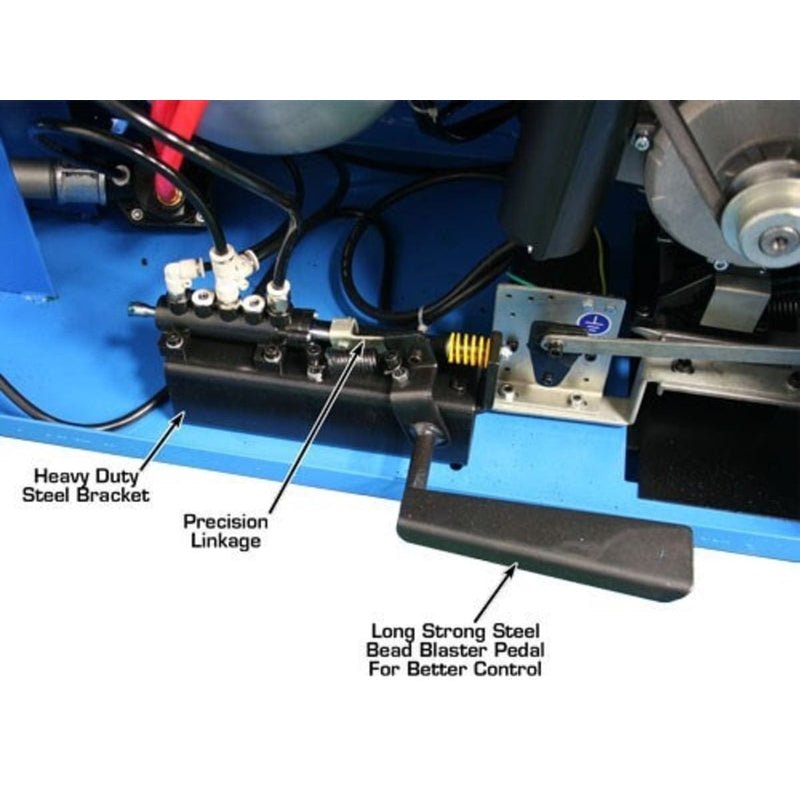

- Built in “Beadblaster”
- Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.

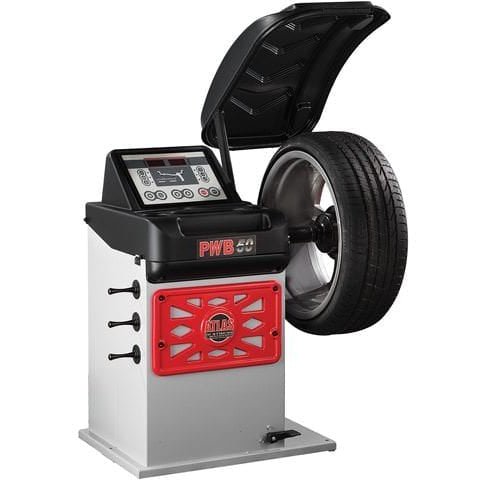

PWB50 Wheel Balancer

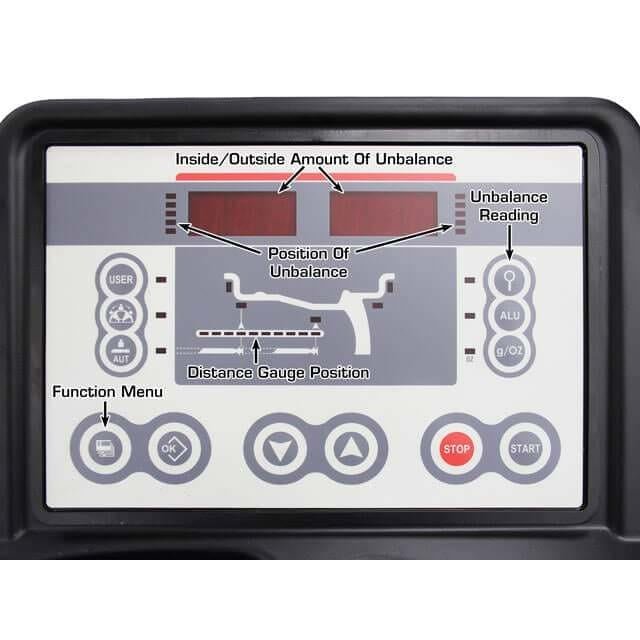

- Platinum Computer Controlled Motorized Spin Balancer
- Italian Engineering and Components

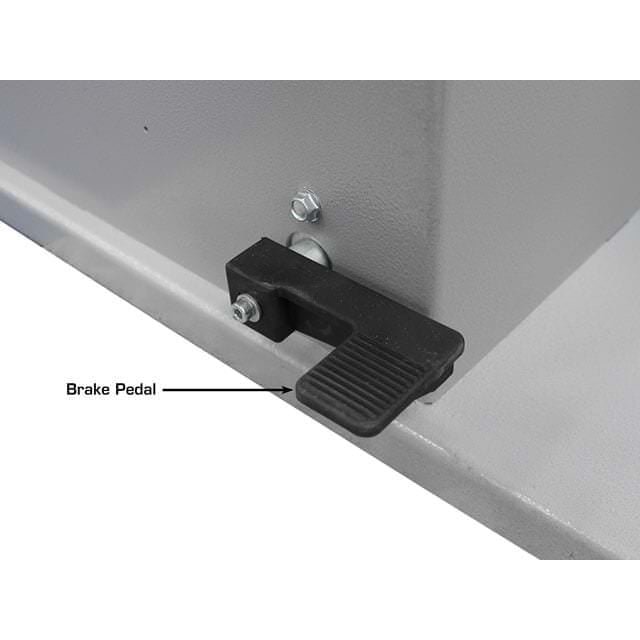

- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and other ALU Programs
- Automatic 2D Data Entry
- NWN (no wheel need) System
- Self-Diagnosing and Self-calibrating
- USB hub for firmware update through PC/Notebook
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed

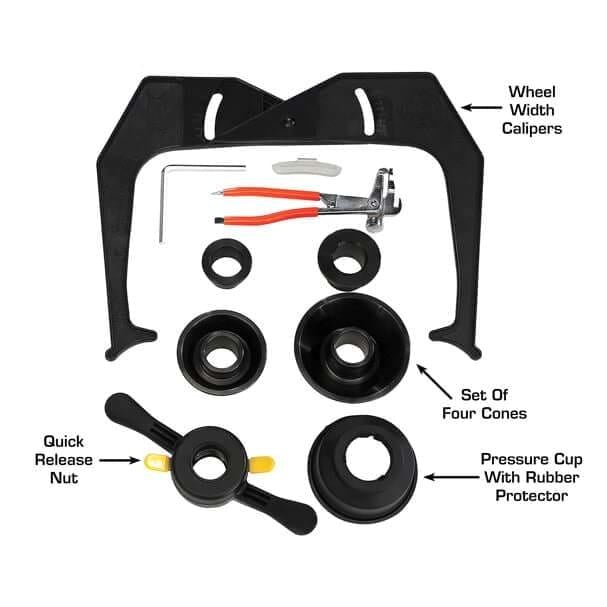

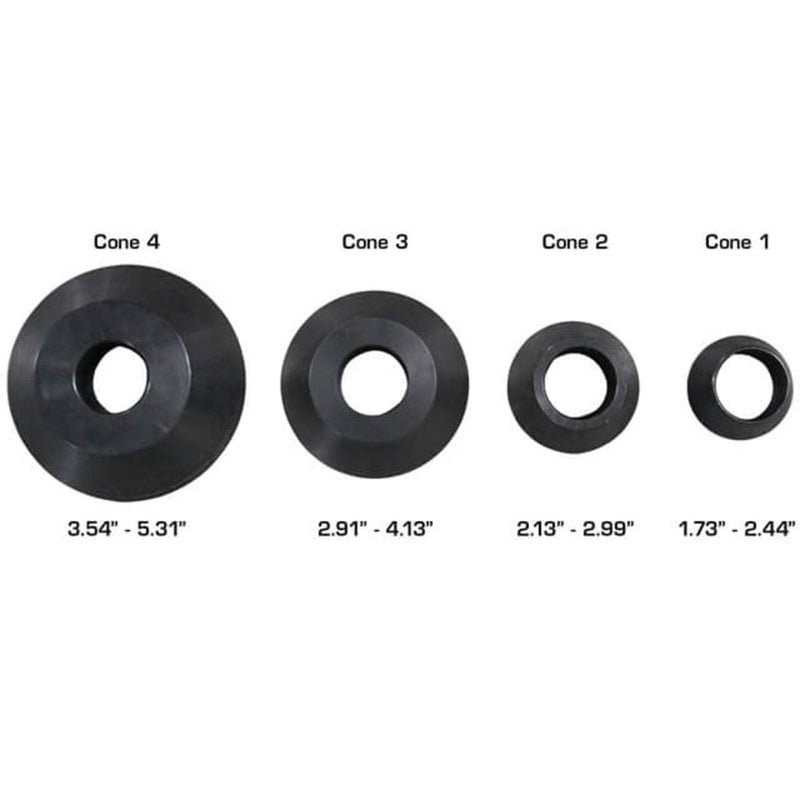

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
Atlas® TC229 Specifications
| Rims | Steel, Aluminum, Alloy |

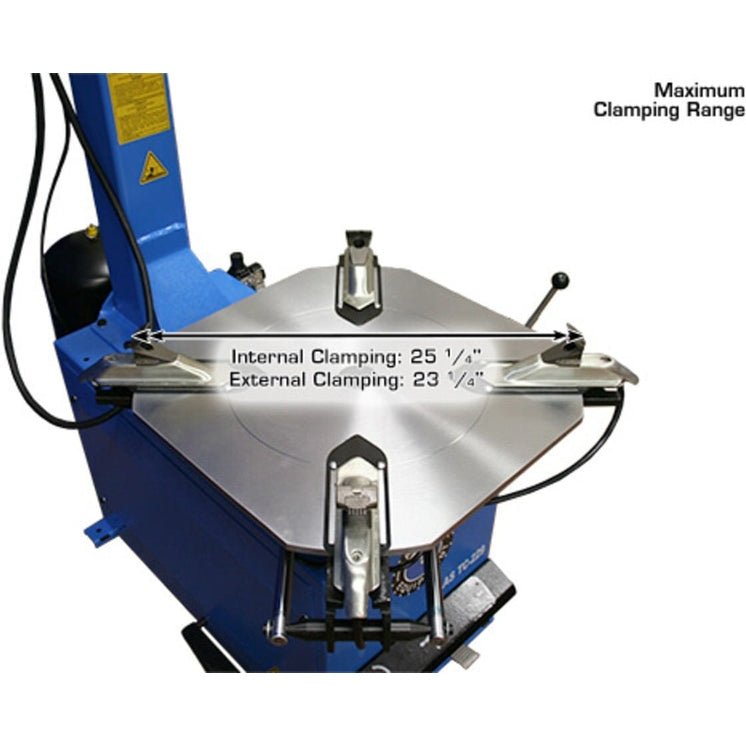

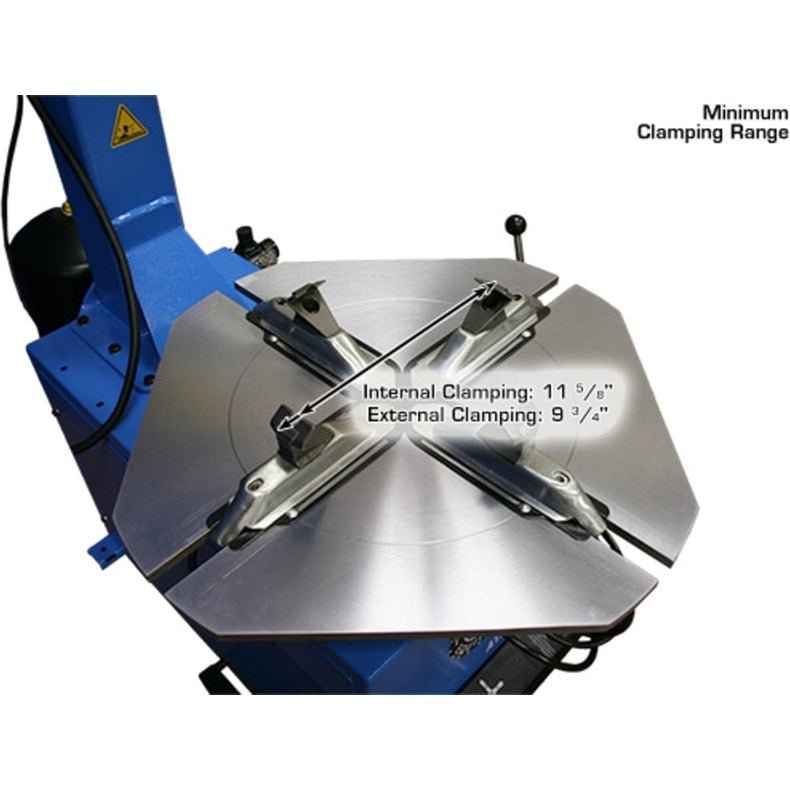

| External Locking Rim Dimension (3 Positions) |
1) 9 3/4″ – 21 5/8″ 2) 10 3/4″ – 22 1/2″ 3) 11 5/8″ – 23 1/4″ |
| Internal Locking Rim Dimension (3 Positions) |
1) 11 5/8″ – 23 1/4″ 2) 12 5/8″ – 24 1/4″ 3) 13 1/2″ – 25 1/4″ |
| Maximum Tire Diameter | 39″ |
| Maximum Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110volt |
| Shipping Weight | 550 lbs. |

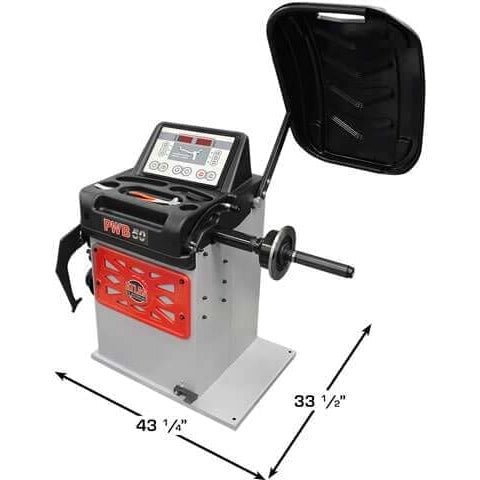

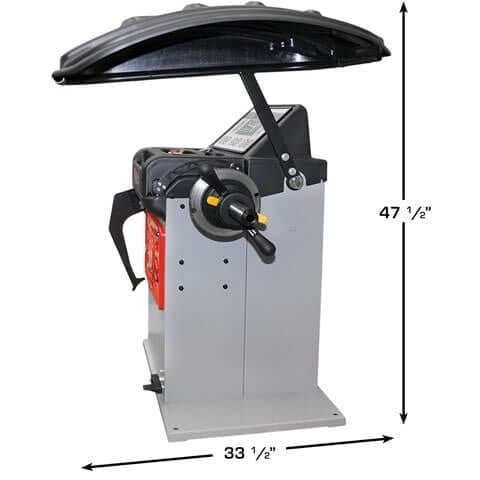

Atlas® Platinum PWB50 Specifications
| Max Tire Diameter | 43″ |
| Rim Sizes (Cars And Light Trucks) | 10″-30″ |
| Rim Width | 1 1/2″-20″ |

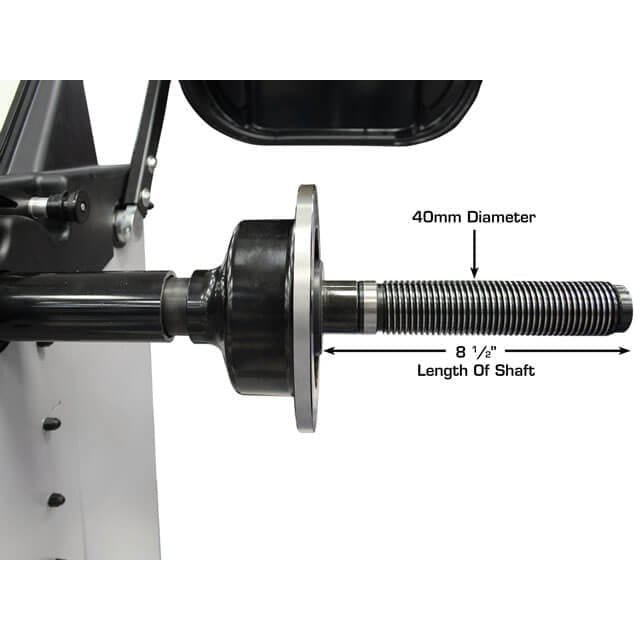

| Shaft Size | 40mm |
| Max. Wheel Weight | 165 lbs. |
| Balancing Speed | 130 rpm |
| Data Entry | Automatic 2D |
| Measurements | Standard Or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110volt |
| Shipping Weight | 230 lbs. |
