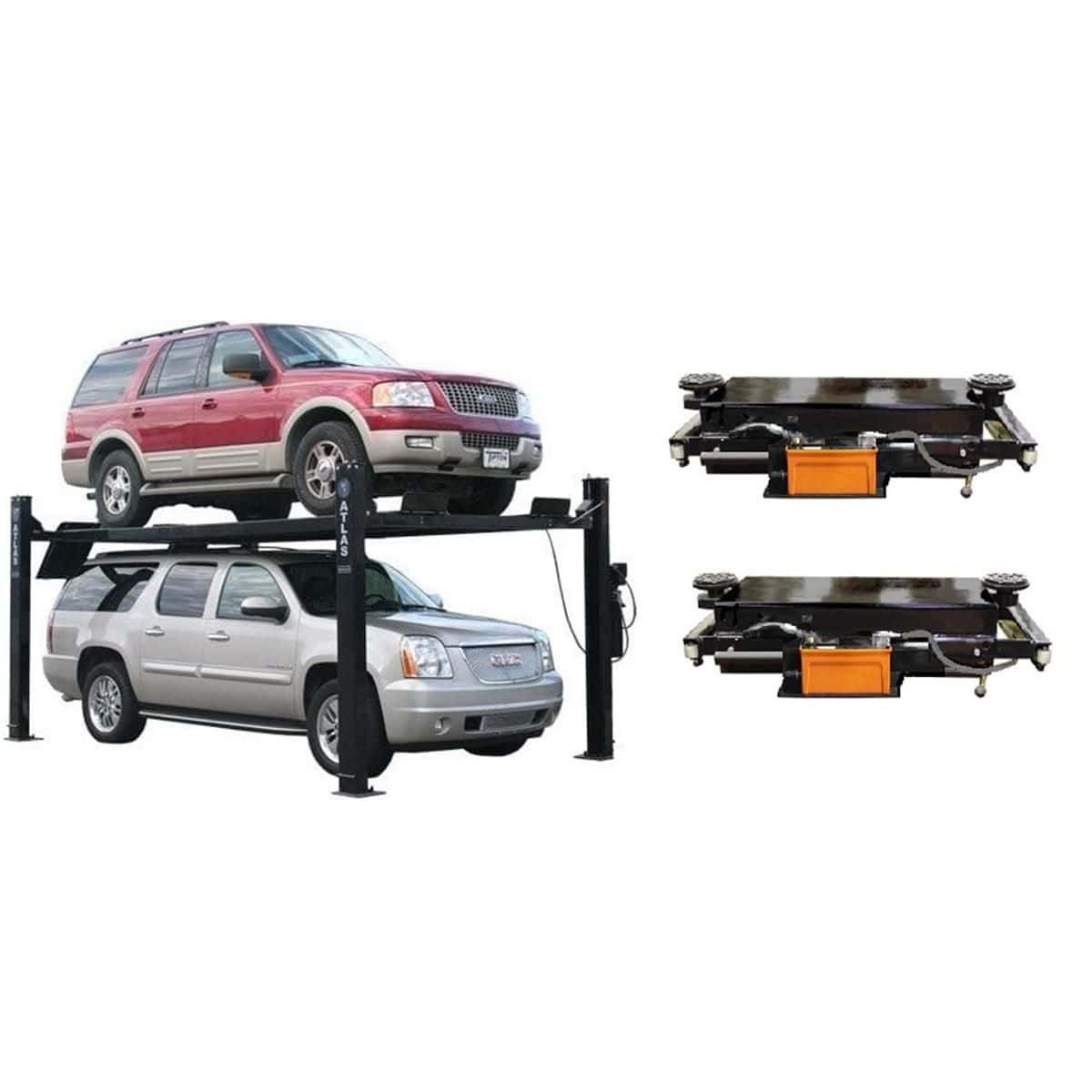

Atlas Garage PRO9000 9,000-lb 4-Post Lift + 2 RJ-45A 4,500-lb Bridge Jacks Combo Package
Atlas Garage PRO9000 9,000-lb 4-Post Lift + 2 RJ-45A 4,500-lb Bridge Jacks Combo Package - Image 2
Atlas Garage PRO9000 9,000-lb 4-Post Lift + 2 RJ-45A 4,500-lb Bridge Jacks Combo Package - Image 3

Atlas Garage PRO9000 9,000-lb 4-Post Lift + 2 RJ-45A 4,500-lb Bridge Jacks Combo Package

SKU: ATEXH-PRO9-COMBO3

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

$7,999.00

Out of stock

Out of stock

Compare
Add to wishlist
15 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

Description

The Atlas Garage PRO9000 combo pairs the highest-capacity lift in the Atlas Garage PRO series with two RJ-45A rolling bridge jacks ā€” turning a portable storage and service four-post into a rolling wheel-and-brake station. The lift is rated 9,000 lbs; each RJ-45A jack is rated 4,500 lbs. Together they handle everything from a Smart Car to a diesel dually.

The PRO9000 runs on standard 110V power (30-amp breaker required), is free-standing ā€” no anchoring required ā€” and rolls on an included caster kit so it can move when the floor plan changes. The runways are extra-long to fit longer-wheelbase vehicles, and extra-wide so full-size duallys can drive on without their tires riding the runway edges. Extra column height makes it possible to park anything from a Smart Car to a dually both below and on the runways.

Atlas Garage PRO9000 four-post lift with extra-long 204-inch runways shown without approach ramps
Extra-long 17-foot runways (18’11Ā½” with approach ramps).

The two RJ-45A bridge jacks ride on the runways and span the gap between them. Air/hydraulic operation lets a tech raise a vehicle’s wheels off the runway for tire and brake service on the same lift the car is already parked on. Adjustable support arms fit lifts with 35″ to 54Ā½” between runways, so the jacks aren’t tied to the PRO9000 ā€” they work across most four-post platforms in that runway range.

Features

Atlas Garage PRO9000 four-post lift

  • 9,000-lb lifting capacity
  • Free-standing, portable design ā€” no anchoring required
  • Extra-tall, extra-wide, and extra-long runways
  • Single-point lock release
  • Lock ladder design with double-lock safety system
  • Caster kit with polyurethane wheels included
  • Steel approach ramps included
  • Steel jack tray included
  • Four plastic drip trays included
  • Two rubber wheel chocks included
  • 110V electric operation (30-amp breaker required)
  • 2-year structural / 1-year hydraulic parts-only warranty
Atlas PRO9000 lock ladder, single-point lock release, power unit, and metal-braided hydraulic hose detail
Lock ladder, single-point lock release, and metal-braided hydraulic hose.
Atlas PRO9000 nylon roller and steel wheel detail showing the runway carriage assembly
Nylon rollers for smooth movement; steel wheel for durability.

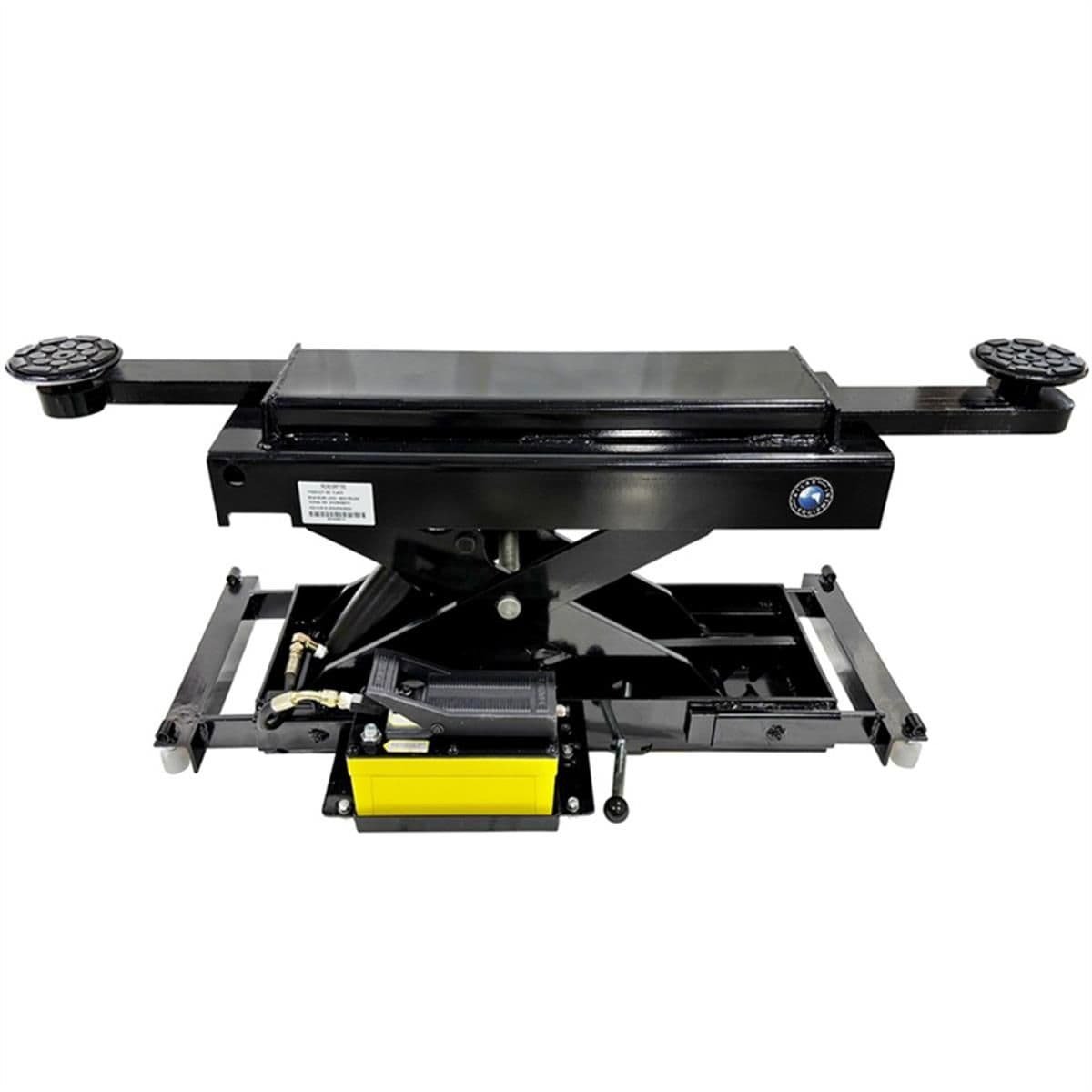

RJ-45A rolling bridge jacks (Ɨ2 included)

  • 4,500-lb lifting capacity per jack
  • Air/hydraulic operation (external air supply not included)
  • Two locking heights: 7ā…œ” and 10Ā½”
  • Max lifting height with adapters: 18Ā½” (may vary by lift)
  • Min height above runway: 3Ā¾” (may vary by lift)
  • Arm adjustment: 39Ā½” to 64Ā¾”
  • Fits lifts with 35″ to 54Ā½” between runways
  • Height adapters and rubber lift pads included
Atlas RJ-45A rolling bridge jack with adapters extended showing 18.5-inch max lifting height and lock release
Max lifting height with adapters: 18Ā½”. Two locking positions.
Atlas RJ-45A bridge jack with included 4-piece truck adapter set and nylon rollers
Includes a 4-piece truck adapter set with on-board holder.
Atlas RJ-45A height adapters: 4.75-inch rubber pad, two 1.375-inch lift pads, two 1.25-inch adapters, two 5-inch adapters
Adapter kit: 4Ā¾” rubber pad, two 1ā…œ” lift pads, two 1Ā¼” adapters, two 5″ adapters.

What’s Included

  • (1) Atlas Garage PRO9000 four-post lift with 110V power unit
  • (2) RJ-45A rolling bridge jacks with adapter kits
  • Caster kit with polyurethane wheels (lift)
  • Steel approach ramps
  • Steel jack tray
  • 4 plastic drip trays
  • 2 rubber wheel chocks
Atlas PRO9000 included caster kit with polyurethane wheels, four casters shown
Included caster kit. Do not move the lift with a vehicle on the runway.
Atlas PRO9000 steel diamond-plate approach ramps included, 31 by 31.5 inches
Diamond-plate steel approach ramps (31″ Ɨ 31Ā½” Ɨ 19ā…ž”).
Atlas PRO9000 four plastic drip trays installed between runways, 39 by 24 inches each
Four plastic drip trays sit between the runways (39″ Ɨ 24″ each).
Atlas PRO9000 included rubber wheel chocks, two pieces, 6 by 5.5 by 3.25 inches
Rubber wheel chocks (6″ Ɨ 5Ā½” Ɨ 3Ā¼”), two included.

Specifications

Atlas Garage PRO9000 Four-Post Lift Specifications
Lifting capacity 9,000 lbs
Power 110V (30-amp breaker required)
Column height 95Ā¾” (7’11Ā¾”), Ā±2″ depending on thread adjustment and floor pitch
Top of runway 85″ (7’1″)
Clearance under runways 80Ā½” (6’8Ā½”)
Overall length with approach ramps 227Ā½” (18’11Ā½”)
Overall length without ramps 204″ (17′)
Length between columns 184Ā½” (15’4Ā½”)
Overall width with motor 131Ā½” (10’11Ā½”)
Overall width without motor 123Ā½” (10’3Ā½”)
Width between columns 110Ā½” (9’2Ā½”)
Drive-through width 79″ (6’7″)
Runway width (inner) 19ā…ž”
Distance between runways (center-to-center) 35Ā½”
Runway thickness 4Ā¾”
Runway gauge 5 gauge (.2″ / 1/5″ / 5mm) steel
Column footprint 11Ā½” Ɨ 11Ā½” base plate; 7Ā½” Ɨ 4Ā½” column
Approach ramp 31″ Ɨ 31Ā½” Ɨ 19ā…ž”
Drip tray 39″ Ɨ 24″, four included
Wheel chock 6″ Ɨ 5Ā½” Ɨ 3Ā¼”, two included
Shipping crate 202Ā¼” Ɨ 28Ā¼” Ɨ 21Ā½”
Shipping weight 2,300 lbs
Warranty 2-year structural / 1-year hydraulic, parts only
Atlas RJ-45A Rolling Bridge Jack Specifications (Ɨ2 included)
Lifting capacity (each) 4,500 lbs
Operation Air/hydraulic (external air supply not included)
Max lifting height with adapters 18Ā½”
Min height above runway 3Ā¾”
Locking heights 7ā…œ” and 10Ā½”
Arm adjustment range 39Ā½” to 64Ā¾”
Compatible runway spacing 35″ to 54Ā½” between runways
Shipping crate (each) 39Ā½” Ɨ 23Ā½” Ɨ 12Ā½”
Shipping weight (each) 380 lbs
Heights may vary by lift.

Footprint & Dimensions

Atlas PRO9000 top view dimensions: 110.5 inches between columns, 97.25 inch drive-through, 19.875 inch runway width
Top view: 110Ā½” between columns, 97Ā¼” drive-through, 19ā…ž” inner runway width.
Atlas PRO9000 side profile holding a Chevy Silverado dually, 95.75 inch column height, 227.5 inch overall length
Side profile with a Silverado dually loaded: 95Ā¾” tall, 227Ā½” long.
Atlas PRO9000 rear view showing 80.5 inch clearance under runways, 95.75 inch column height, 110V power unit location
80Ā½” of clearance under the runways with the 110V power unit on the column.
Atlas PRO9000 front view with single-point lock release handle and 110V power unit, two SUVs stacked
Single-point lock release handle and 110V power unit, viewed from the front.
Atlas PRO9000 rear view stacked vehicles, 80.25 inch below runway clearance, 85 inch top-of-runway height
80Ā¼” below runway, 85″ to top of runway.
Atlas PRO9000 steel jack tray dimensions, 39 inches long, 4.5 inches deep, 11.875 inches outer drop
Steel jack tray sits between the runways: 39″ Ɨ 4Ā½”.
Atlas PRO9000 column base plate detail, 11.5 by 11.5 inch base, 7.5 by 4.5 inch column
Column base plate: 11Ā½” Ɨ 11Ā½”.
Atlas RJ-45A bridge jack arm width extension from 30 to 60.5 inches, fits 36 to 54 inch runway opening
RJ-45A arm width extension: 30″ to 60Ā½”.

Logistics & Delivery

This combo ships freight in three crates: one for the lift and one for each RJ-45A bridge jack.

Atlas PRO9000 four-post lift shipping crate, 202.25 by 28.25 by 21.5 inches, 2300 pounds
PRO9000 lift crate: 202Ā¼” Ɨ 28Ā¼” Ɨ 21Ā½”, 2,300 lbs.
Atlas RJ-45A rolling bridge jack shipping crate, 39.5 by 23.5 by 12.5 inches, 380 pounds each
Each RJ-45A crate: 39Ā½” Ɨ 23Ā½” Ɨ 12Ā½”, 380 lbs.
