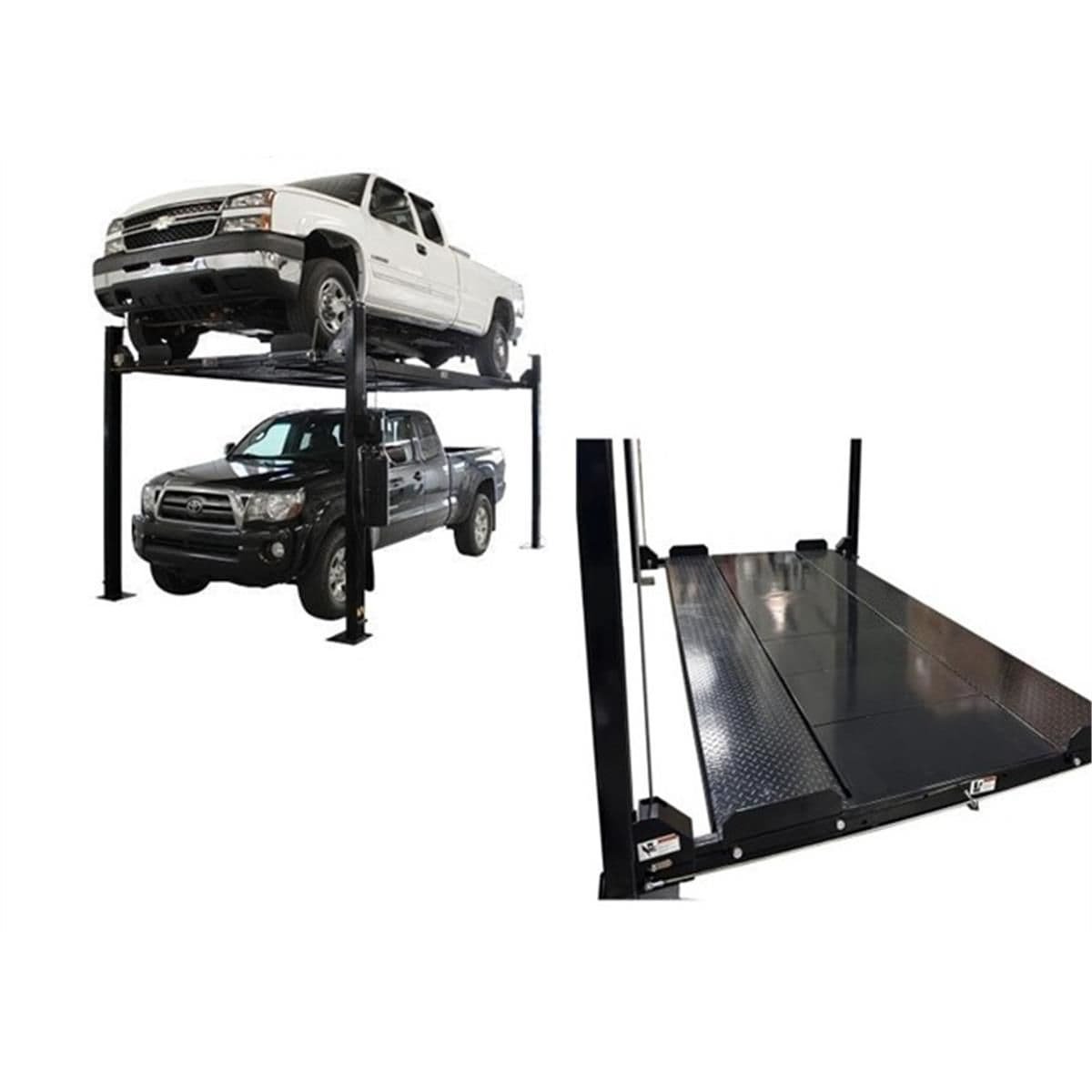

Atlas Garage PRO8000EXT-L 8,000 lb 4-Post Lift with Pro-Floor 8-Panel Combo

Description

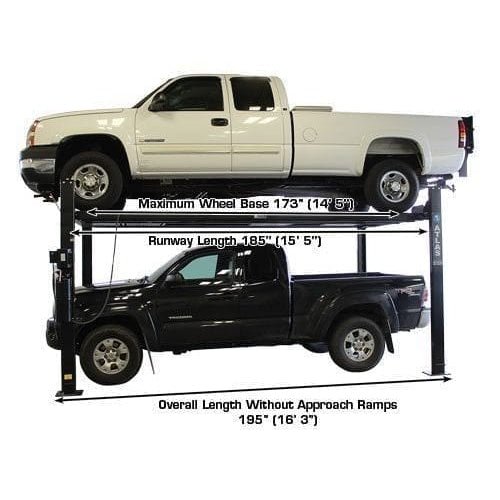

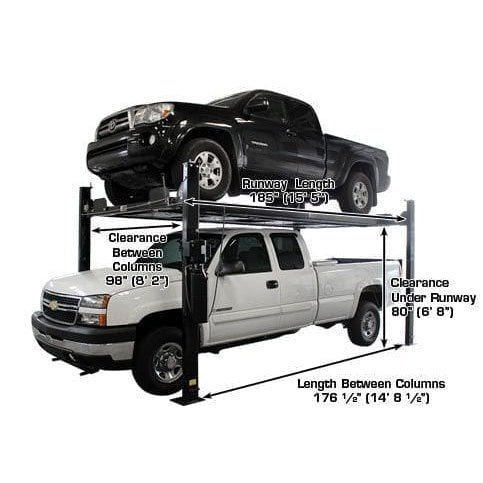

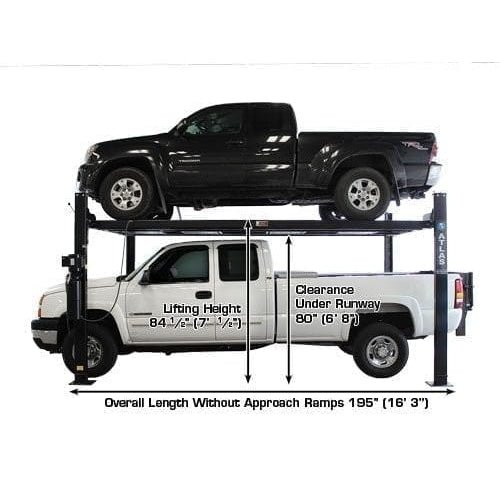

The Atlas Garage PRO8000EXT-L is the extra-tall, extra-long version of the Atlas 4-post storage and service lift, bundled with the 8-piece Atlas Pro-Floor panel set. Compared to the standard Garage PRO8000, the EXT-L runs 20 inches longer, 3 inches wider, and 14 inches taller at the columns, with the extra lifting height of the PRO8000EXT carried over. The longer runways accommodate most extended-cab and long-bed pickup trucks, with one exception: dually rear axles are too wide to clear the column lock assemblies. For dually-width vehicles, the Atlas Garage PRO9000 is the right lift.

The 8,000 lb capacity free-standing 4-post platform is designed for homeowners and restoration shops — applications where the lift cycles a few times per day for storage, detailing, or extended service. It is not engineered for the duty cycle of a commercial repair bay raising and lowering vehicles all day. If a higher-cycle commercial 4-post is the better fit, contact MGS at 307-381-1810 for an alternative.

The Pro-Floor 8-panel set closes the gap between the runways once the lift is raised, turning the platform into a continuous work and storage surface above the parked vehicle. Six middle panels and two end pieces, each rated 400 lb per section, dimensioned 37 1/4″ wide × 19 1/2″ deep × 4″ tall.

Features

4-Post Lift (Garage PRO8000EXT-L)

• 8,000 lb lifting capacity
• Free-standing, portable design

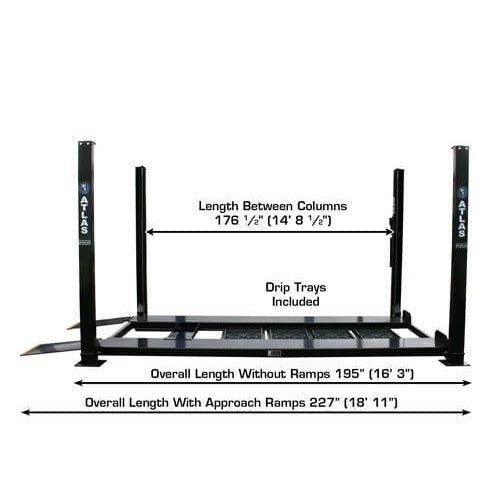

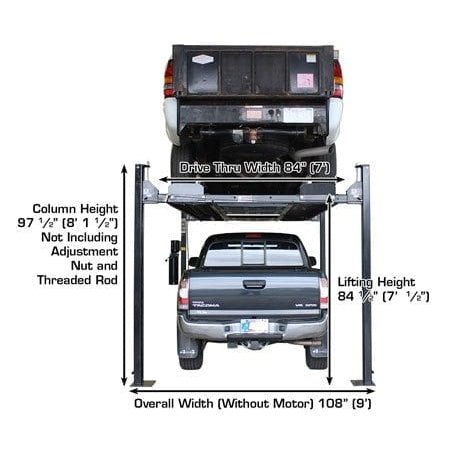

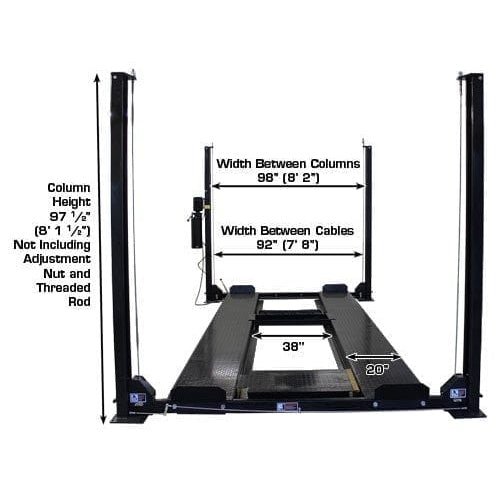

• Extra-tall columns and extra-long runways

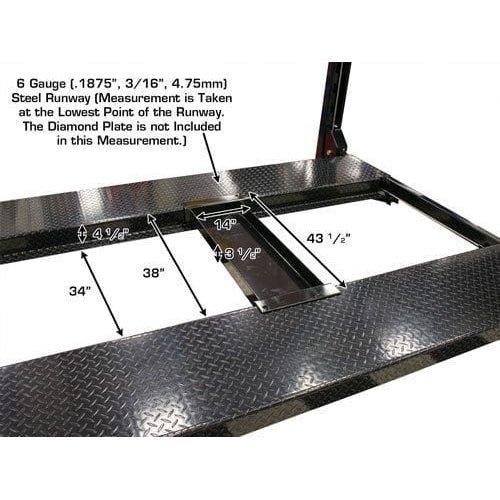

• Diamond-plated runways

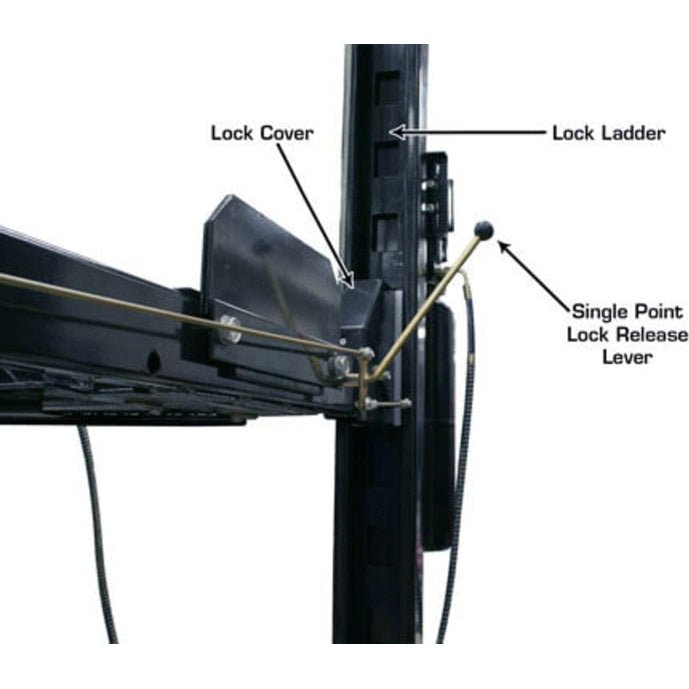

• Single-point lock release

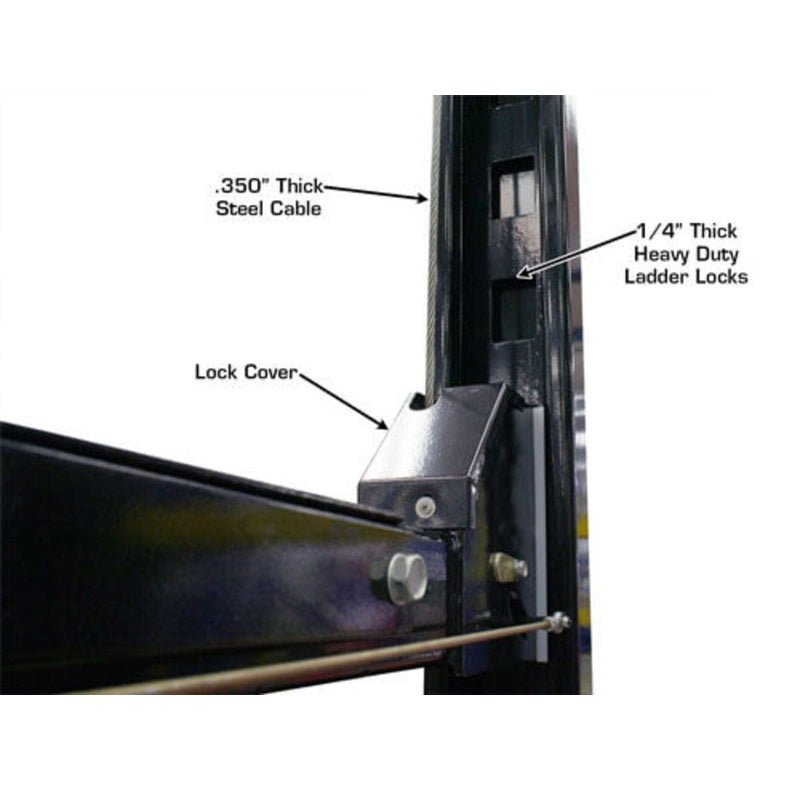

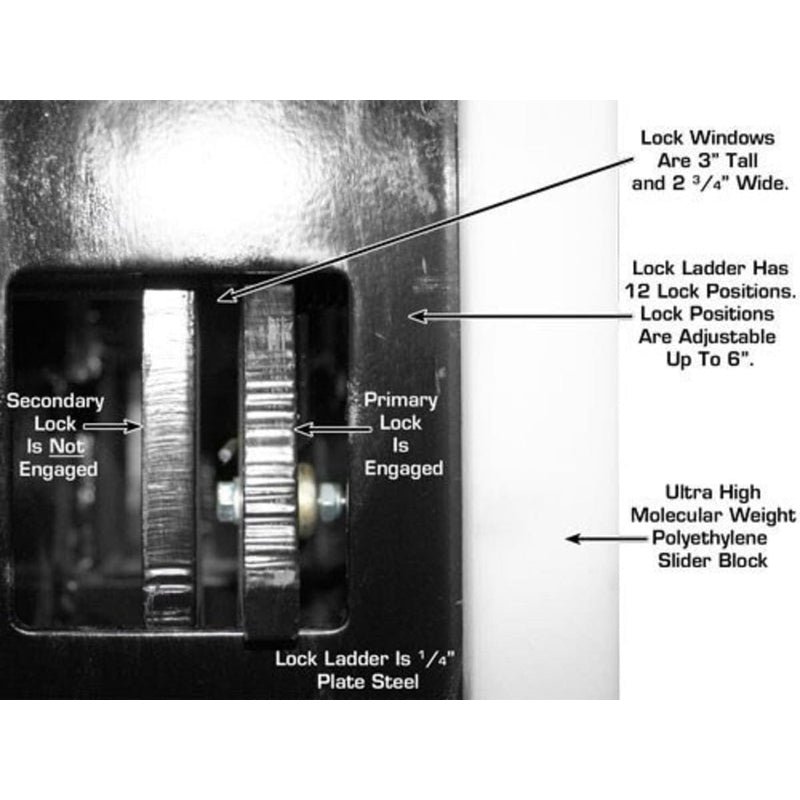

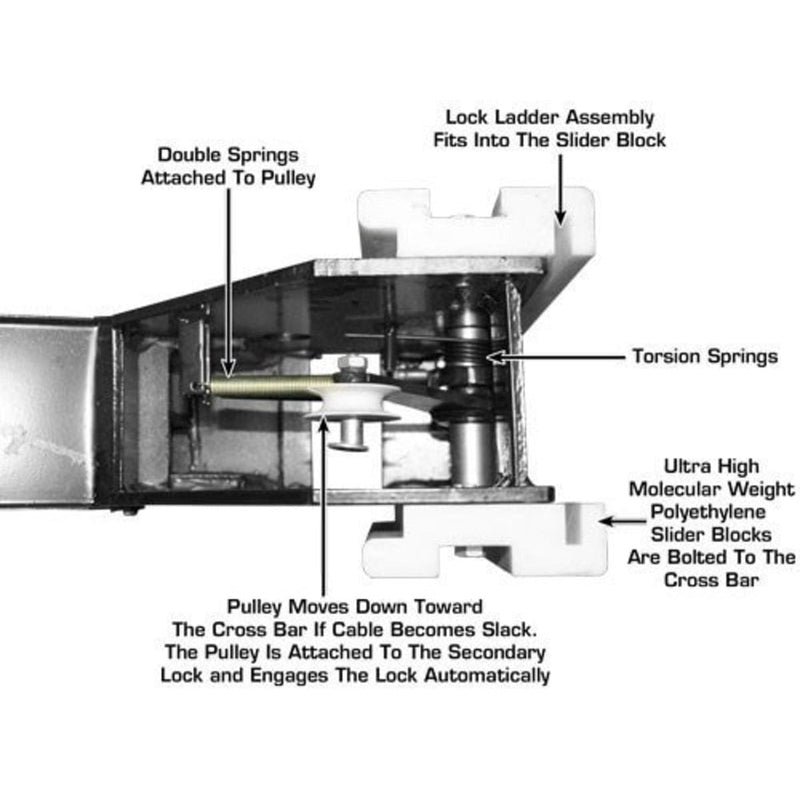

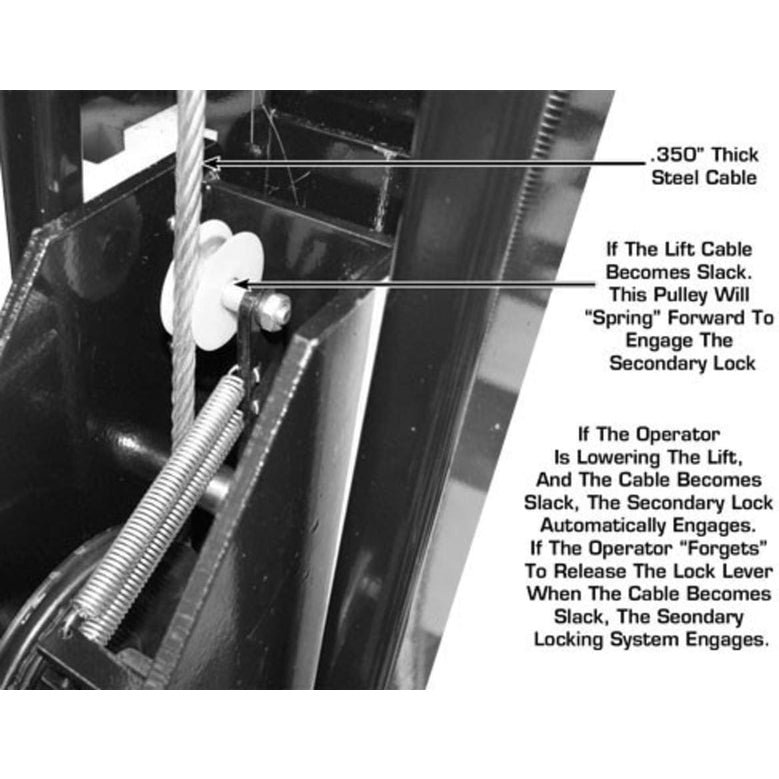

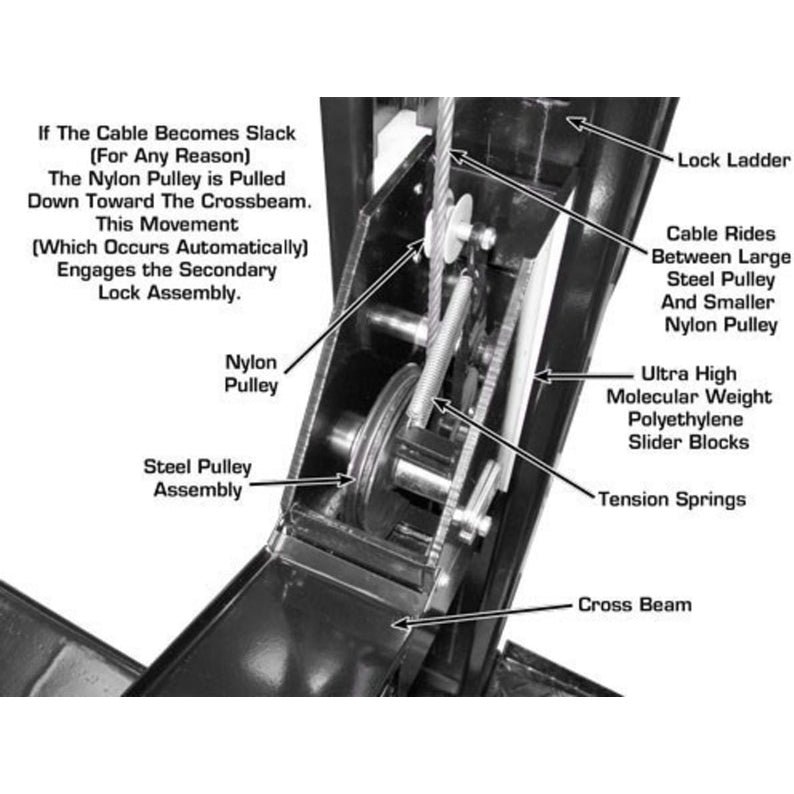

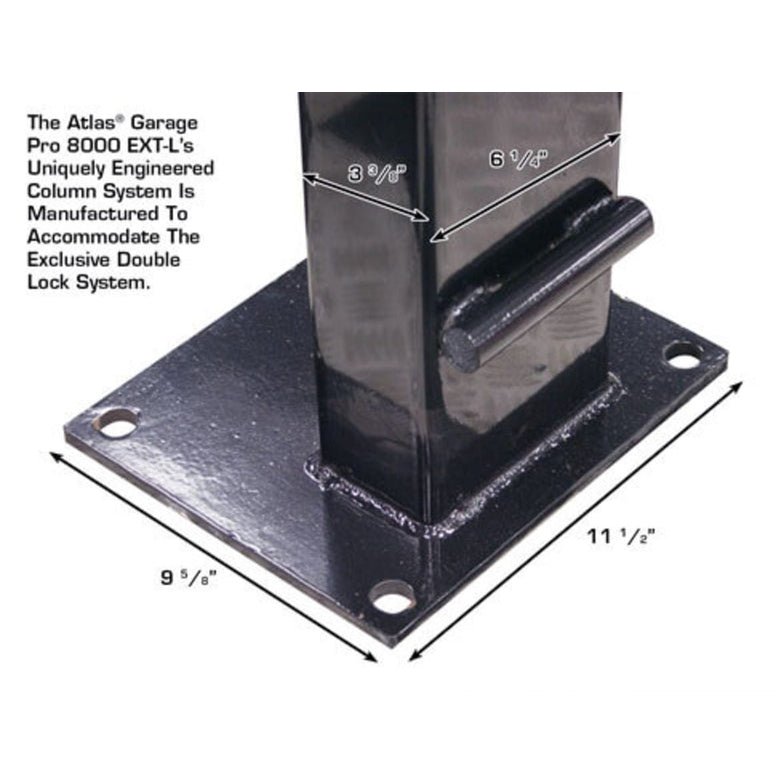

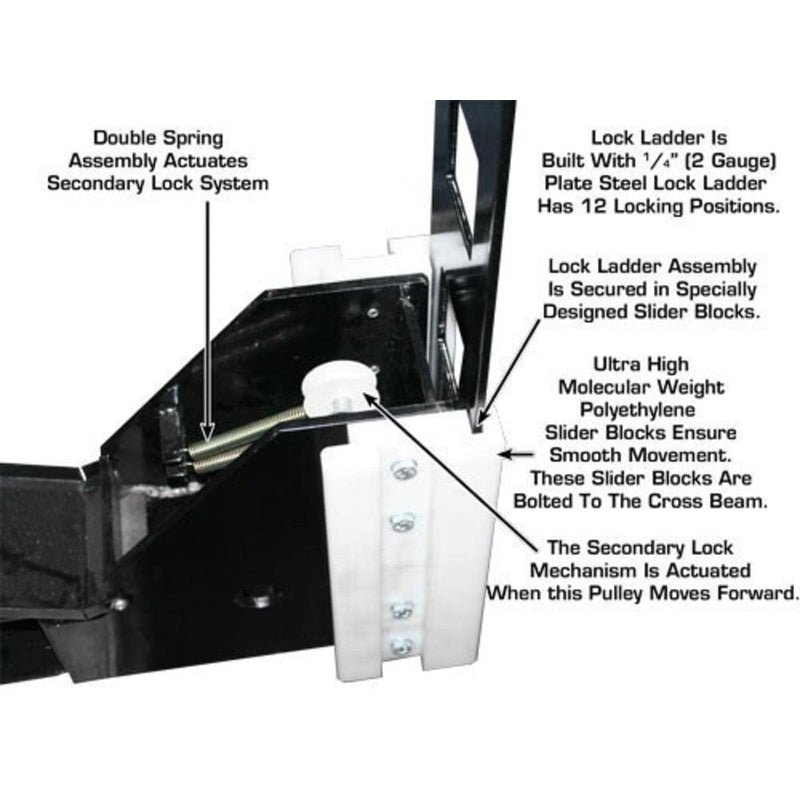

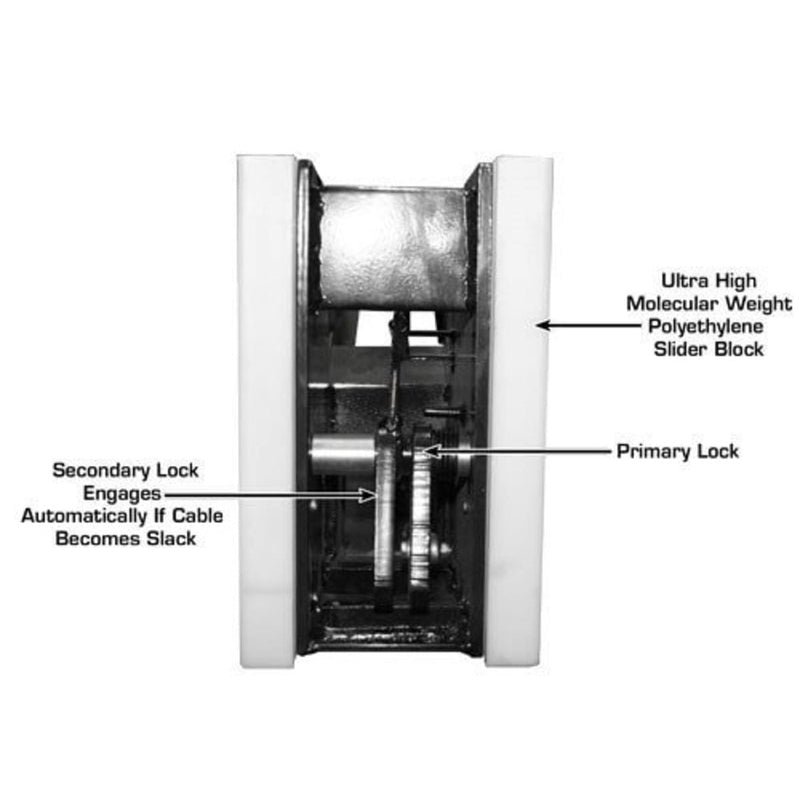

• Lock-ladder design with double-lock safety system

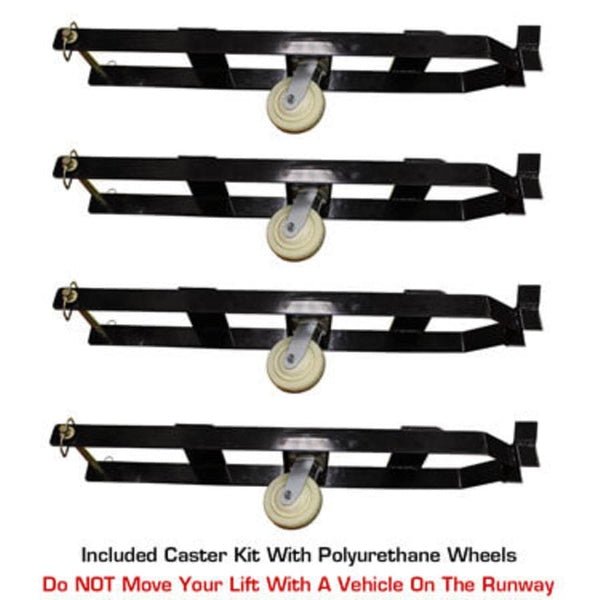

• Caster kit with polyurethane wheels included — installs or removes in minutes for moving the lift between bays or outside

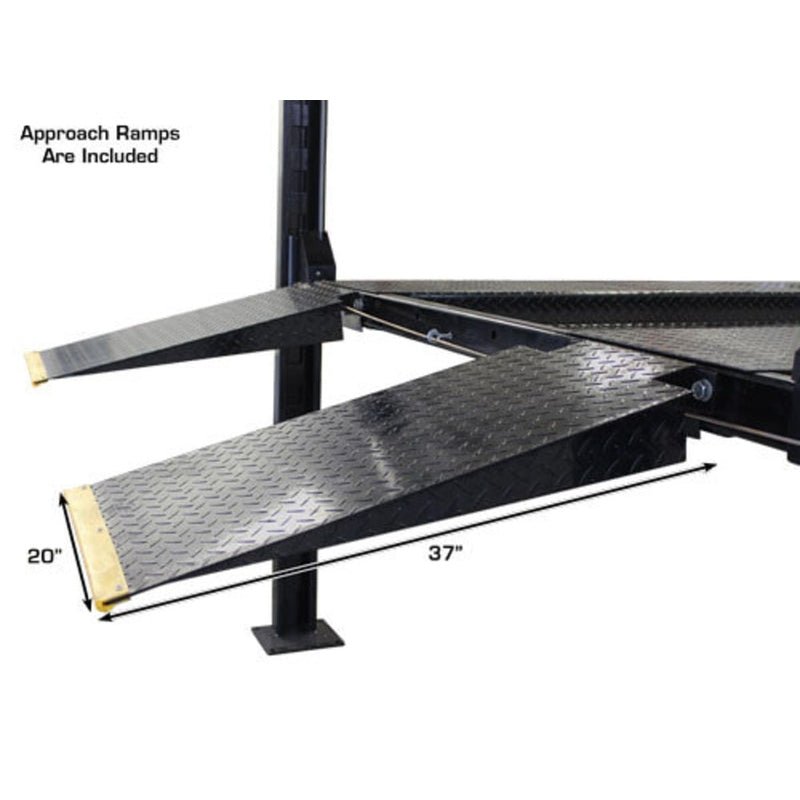

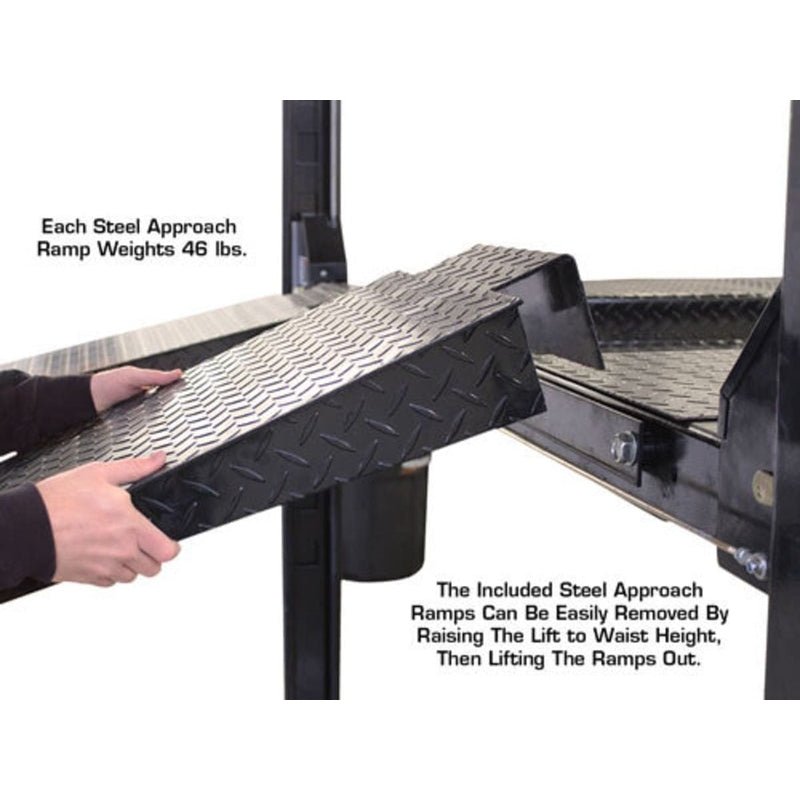

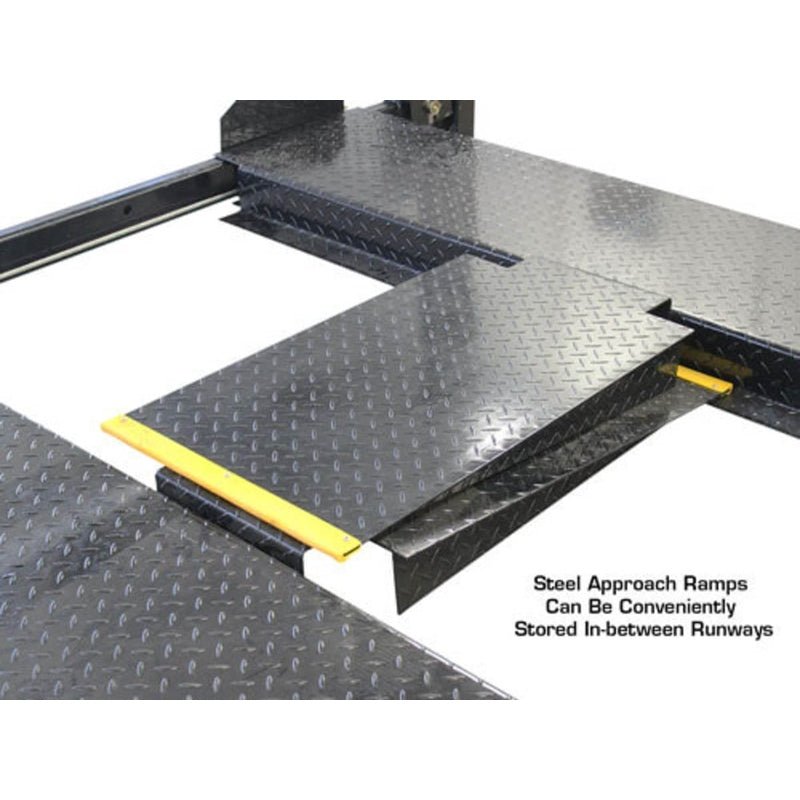

• Steel approach ramps included

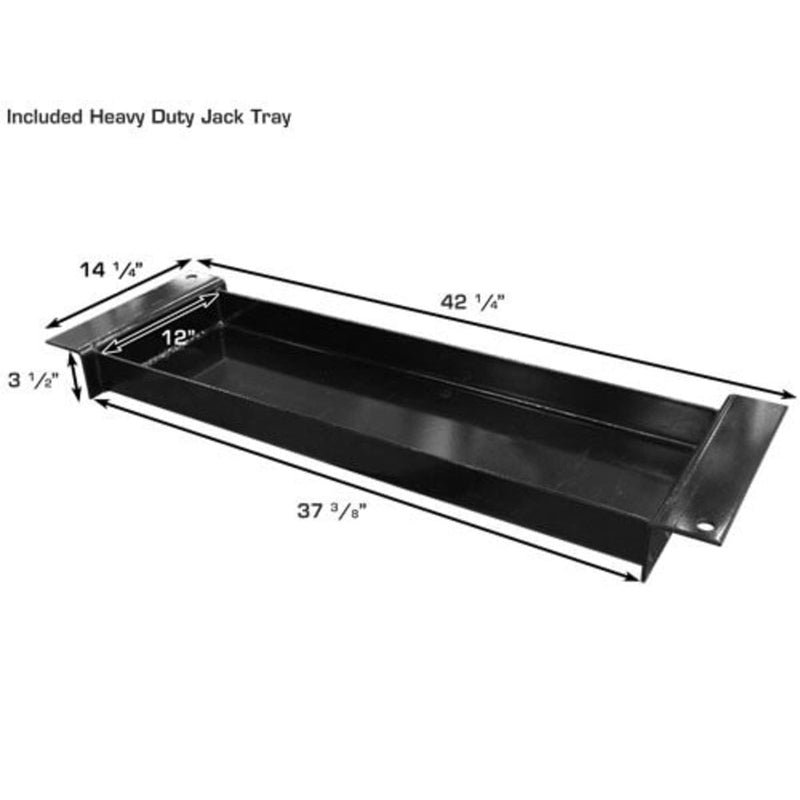

• Steel jack tray included

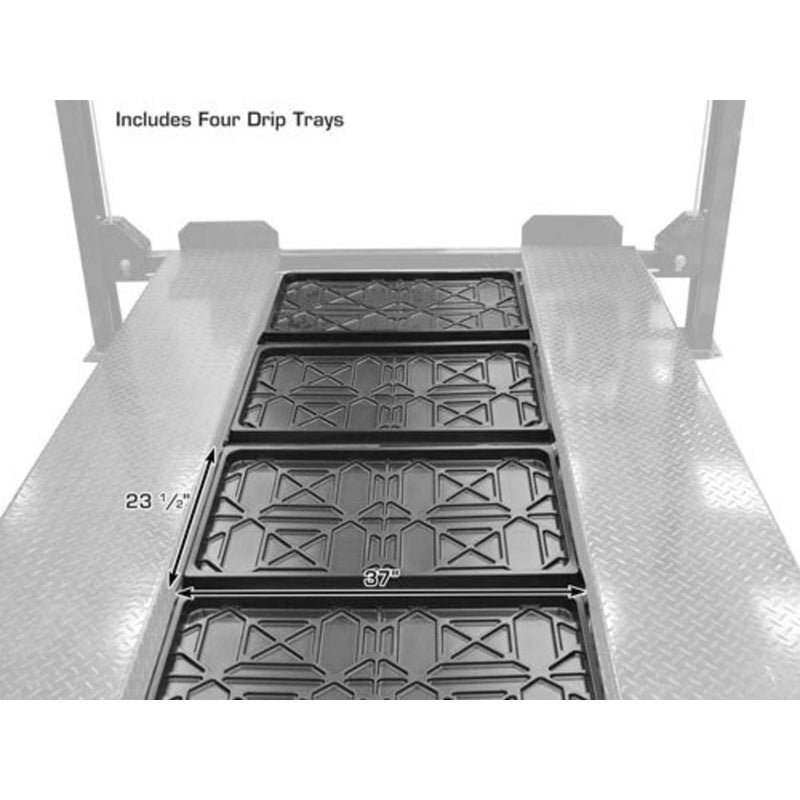

• 4 plastic drip trays included
• 4 wheel stops included

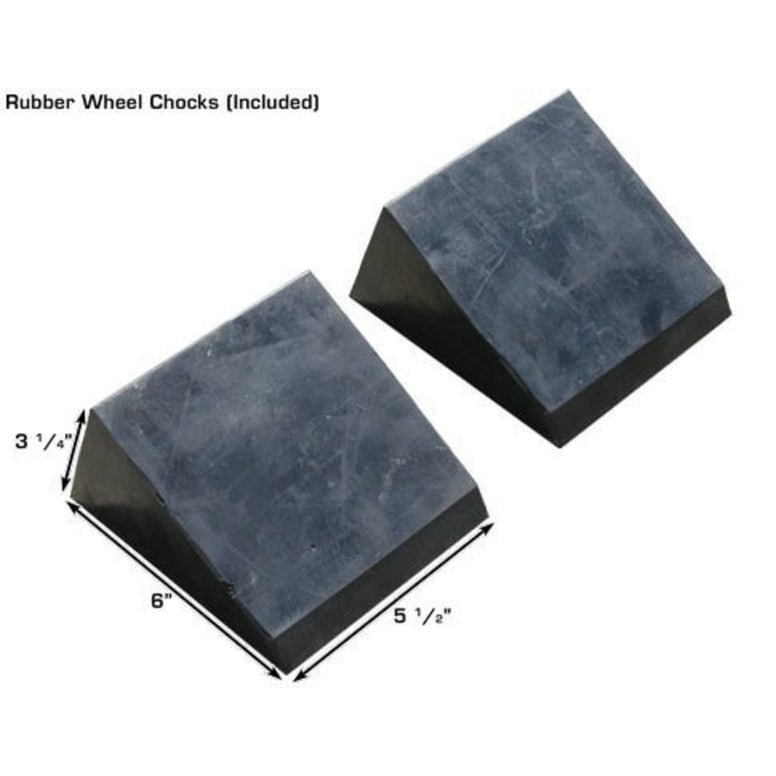

• 2 rubber wheel chocks included

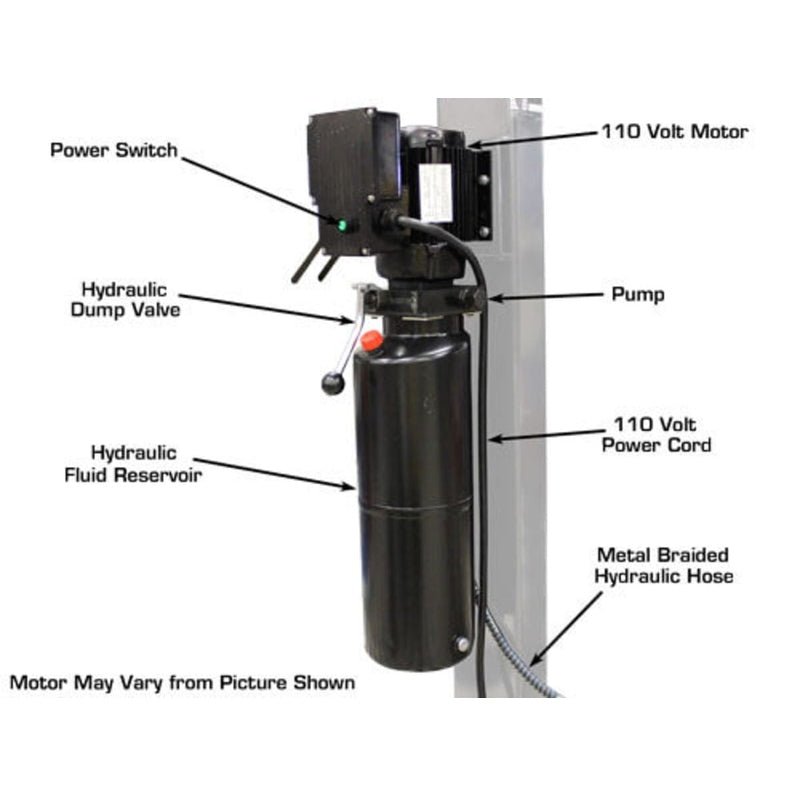

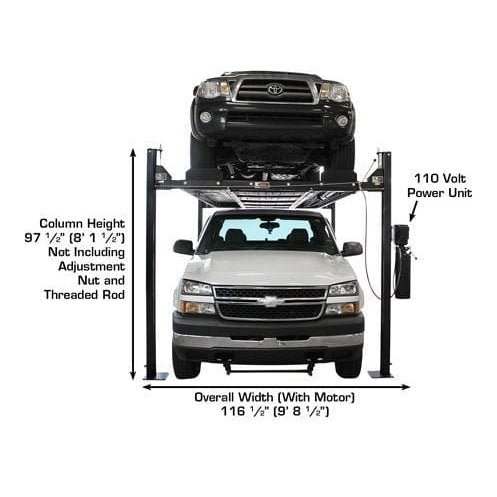

• 110V electric operation (30-amp breaker required)

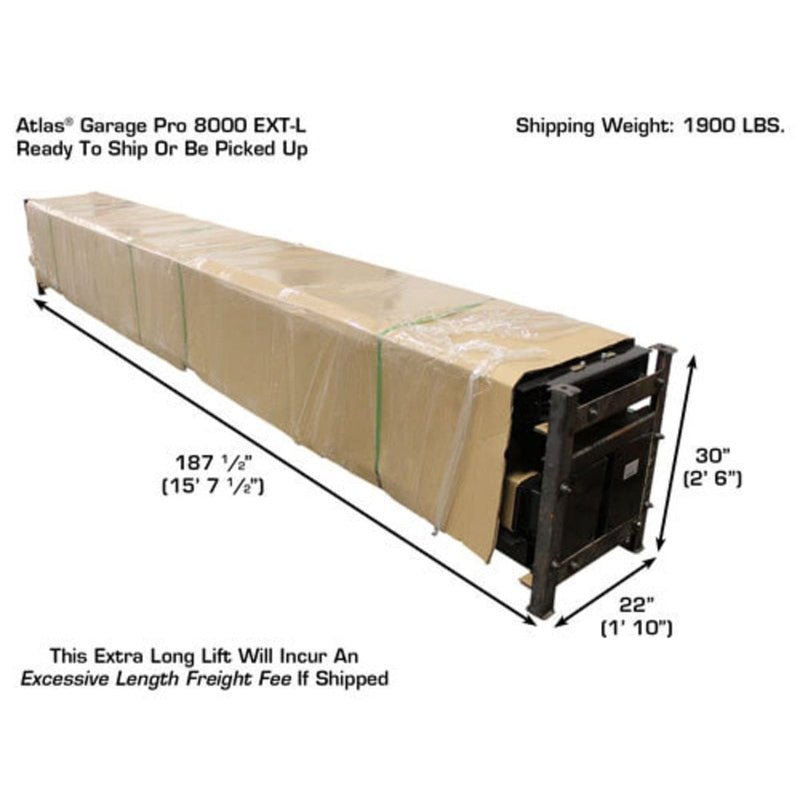

• Shipping weight 1,900 lbs
• 2-year structural / 1-year hydraulic warranty, parts only

Pro-Floor 8-Panel Set

• Complete 8-piece floor panel set: 6 middle panels and 2 end pieces
• 400 lb capacity per section
• Lightweight design
• Per-panel dimensions: 37 1/4″ wide × 19 1/2″ deep × 4″ tall
• Closes the runway gap to add a continuous storage and work surface above the parked vehicle

Specifications

What’s Included

• Atlas Garage PRO8000EXT-L 4-post lift
• Caster kit with polyurethane wheels
• Steel approach ramps
• Steel jack tray
• 4 plastic drip trays
• 4 wheel stops
• 2 rubber wheel chocks
• Pro-Floor 8-piece panel set (6 middle pieces + 2 end pieces)

Shipping & Logistics

This product ships via freight.

Documents

• Atlas Garage PRO8000EXT-L Manual
• Cylinder Bleeding Procedure (perform immediately after installation)
