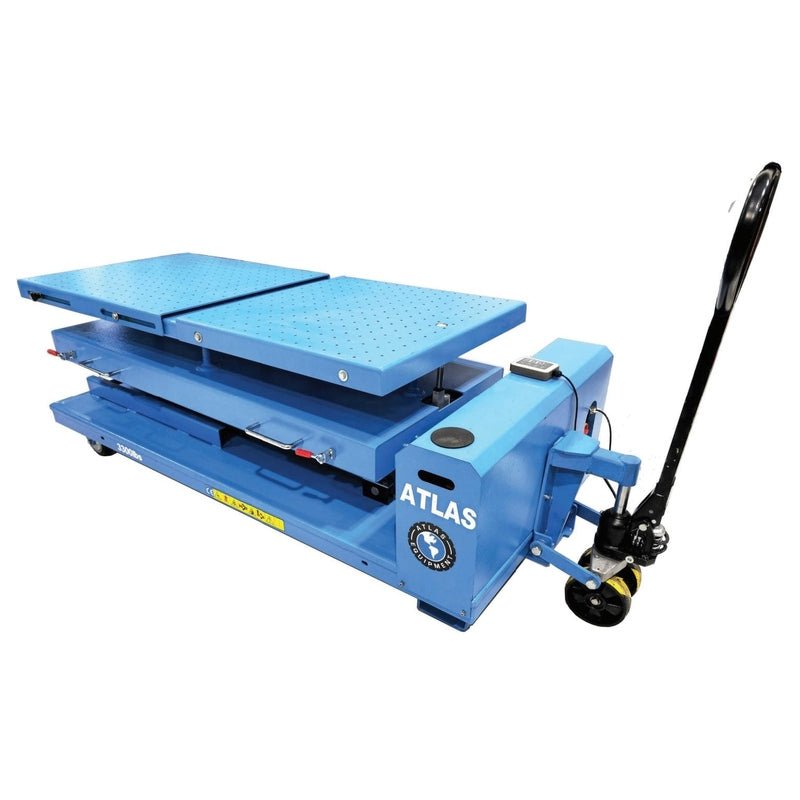

Atlas Electric Vehicle Battery Lifting Table

Atlas 3,300 lb. Electric Vehicle Battery Lift

As Electric Vehicles become more popular the need for specialty tools to handle that market is only growing. The Atlas® Electric Battery Lift Table combines a robust lifting capacity, versatile platform adjustments, and thoughtful design features, making it an adaptable solution for all lifting tasks. Perfect for automotive shops (both big and small) looking to more easily handle batteries and battery assemblies from a wide variety of Electric vehicles on the market.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.

Features

• 3300 lb. Capacity
• 110v Electric/Hydrualic Operated (external 110v power supply required)
• Easy to move, highly portable
• Versatile Tilting Platform Adjustments
• Extendable Platform Length

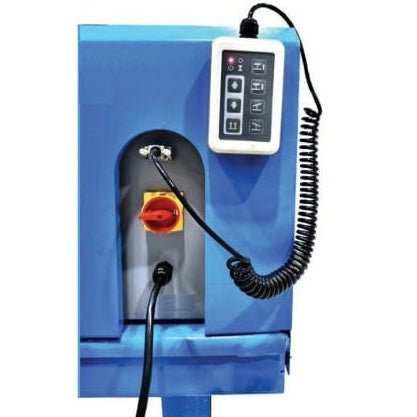

• Wired Remote control for lifting and tilting
• Tabletop features multiple threaded holes for accessory attachment (accessory kit sold separately)

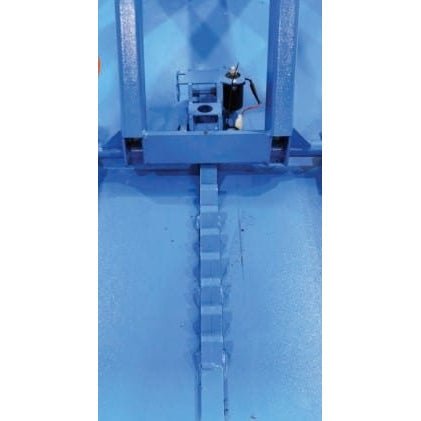

• Built in safety lock ladder, with manual release
• Reinforced legs for extra stability when in use
• 2 Year Structural/Hydraulic Warranty

Atlas® EVBL3310 Specifications

• Capacity 3,300 LB.
• Threaded holes on tabletop: 50mm center to center
• Maximum Lift Height 71 1/4″
• Minimum Lift Height 29 1/4″
• Expandable Lifting Platform Length: 68 1/4″ – 79 3/4″
• Platform Width: 31 3/4″
• Tilting Angles of +/- 5.1 degree (left/right) – +/-2.2 degrees (front/rear)
• Motor/Electrical Requirement 110 volt single (1) phase (A 30 amp breaker is recommended)
• Shipping Weight 1,500 LBS.

Documents

Atlas® EVBL3310 Manual

Atlas® EVBL3310 Parts Breakdown
