Atlas Edge TD2.0 Deluxe WiFi Wheel Alignment System with 8-Camera Optical Sensors, Turntables and 4-Point Wheel Clamps

Description

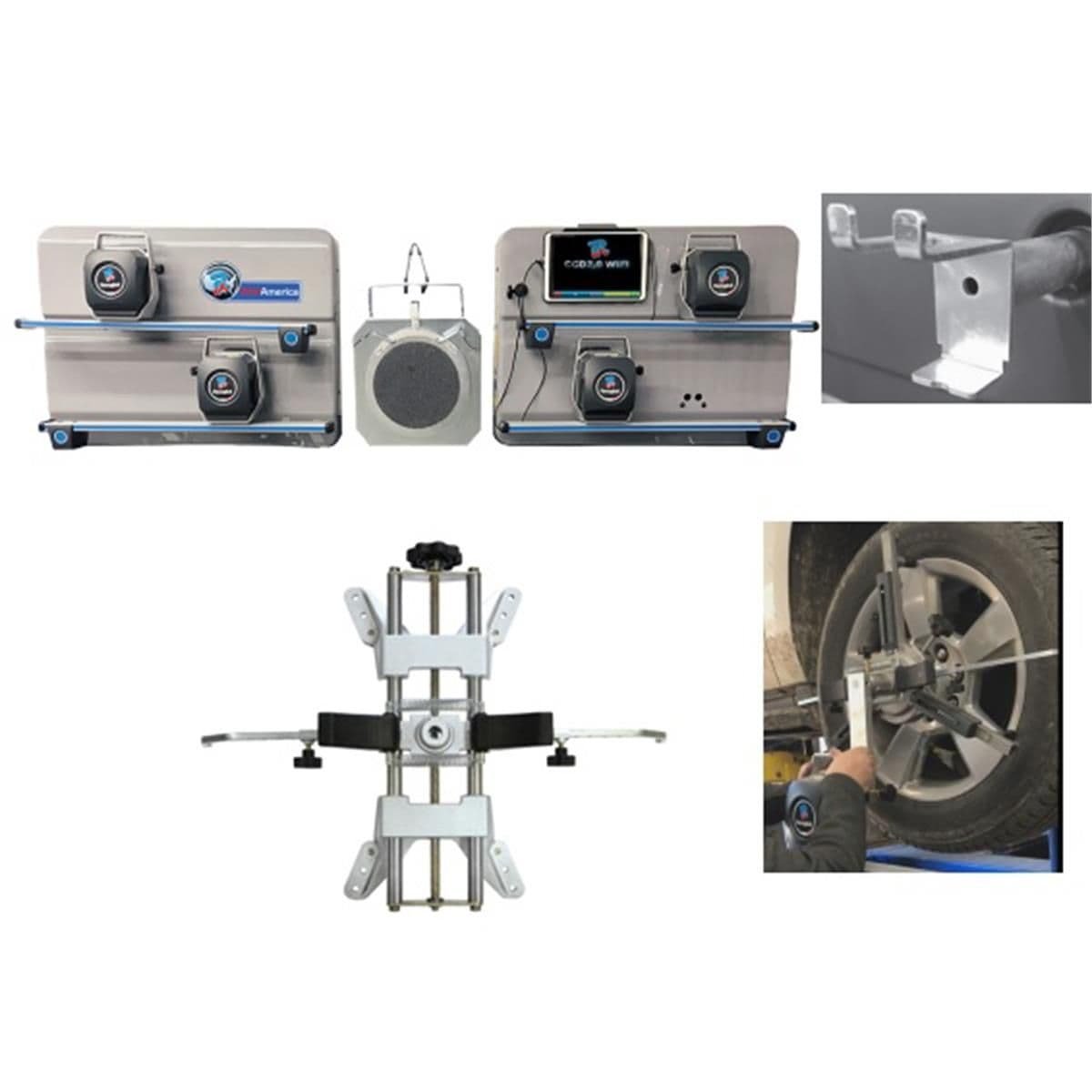

The Atlas Edge TD2.0 Deluxe is a Ravaglioli-built WiFi wheel alignment system built around an 8-camera optical sensor array with Bluetooth data transmission. The Deluxe package adds the upgraded STDA46EU 4-point non-runout wheel clamps, a pair of heavy-duty turntables, two-post lift adapters, a brake pedal depressor, and a steering wheel lock — the full kit for aligning passenger cars and light trucks without buying accessories separately.

Operation runs through the TEQ-LINK app on the included tablet, so the operator can move freely around the vehicle instead of being tied to a fixed console. Wireless WiFi and Bluetooth links between the sensors, clamps, and tablet eliminate the cable-management routine that comes with older alignment rigs.

The system is portable and works with most lift configurations, so a shop running multiple bays or rotating between drive-on and two-post lifts can move one alignment system across the floor instead of dedicating one to a fixed bay. Storage is handled by two instrument boards and four wall pegs for the wheel clamps, keeping the kit organized between jobs.

Specifications come from a vast vehicle database with free software updates for the operating software. Vehicle specification updates are sold separately. The unit ships with remote technical support and a 2-year limited parts warranty.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.

Features

• Ravaglioli TD2.0 WiFi alignment system, made in Europe
• 8-camera optical sensor array with Bluetooth wireless transmission
• WiFi operation between sensors, clamps, and tablet
• TEQ-LINK app and tablet included

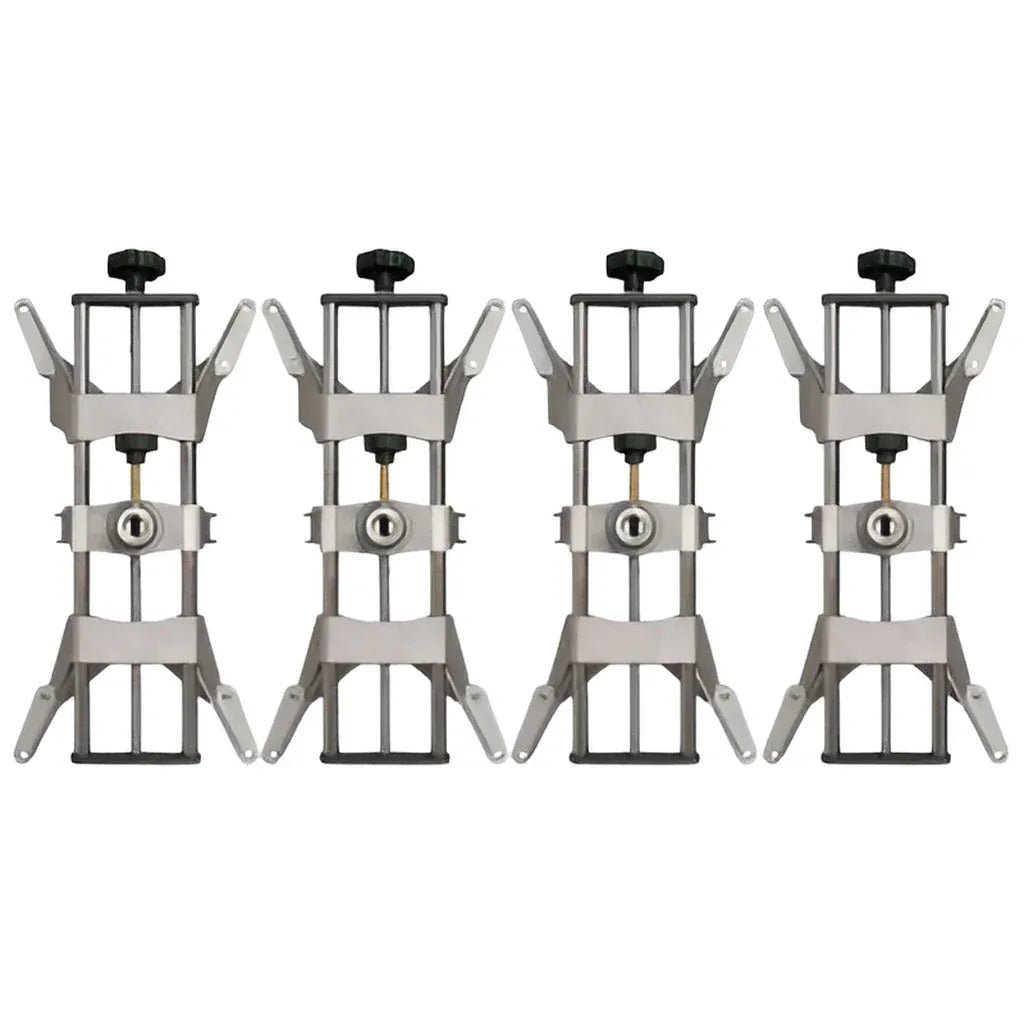

• Upgraded STDA46EU 4-point non-runout technology wheel clamps (set of 4)
• Pair of heavy-duty alignment turntables included
• Two-post lift adapters included

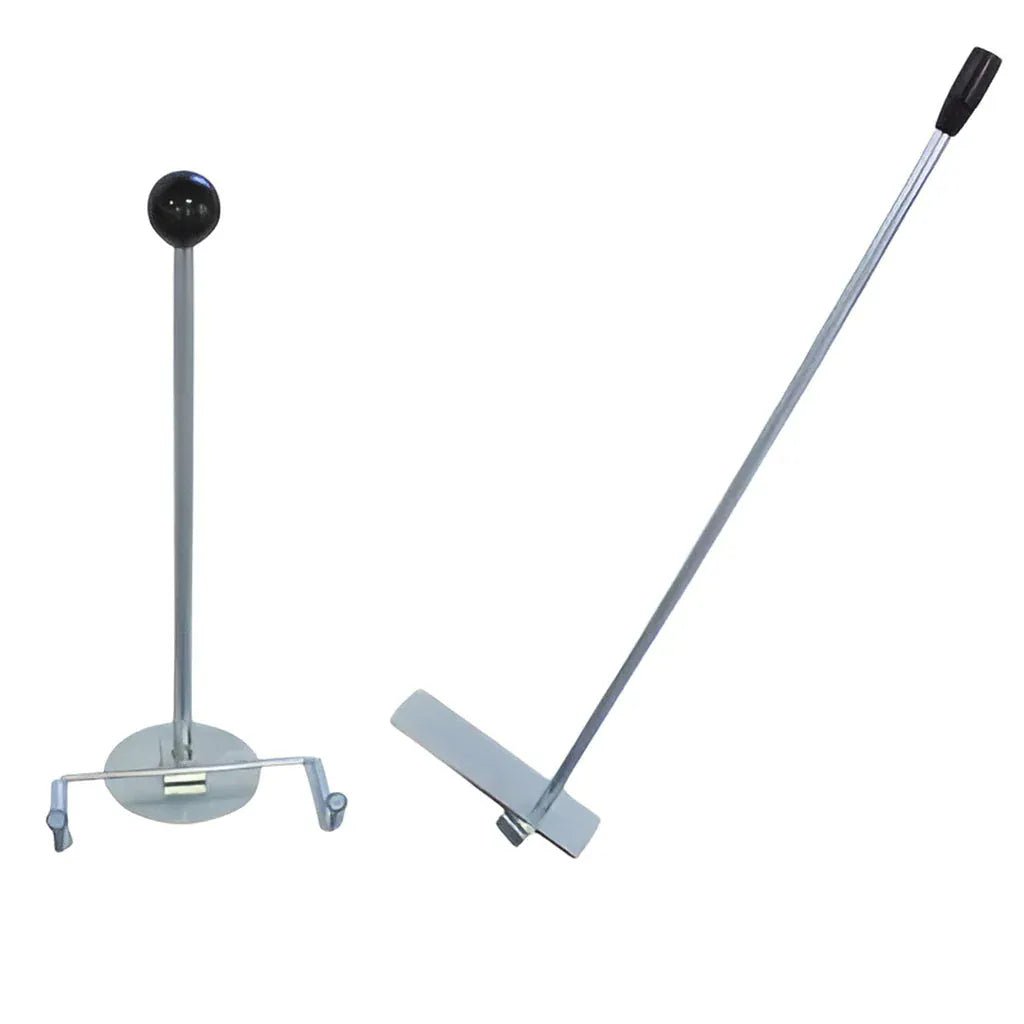

• Brake pedal depressor and steering wheel lock included
• Two storage boards for instruments plus four wall pegs for wheel clamps
• Vast vehicle database with free operating-software updates¹
• Versatile — works with all common lift configurations
• Portable, lightweight design
• Remote technical support included

Specifications

What’s Included

• Ravaglioli TD2.0 WiFi alignment system with 8-camera optical sensors
• Tablet with TEQ-LINK app preloaded
• 4 STDA46EU 4-point non-runout wheel clamps
• 2 alignment turntables (14 5/8″ x 14 5/8″ each)
• 2 two-post lift adapters
• 1 brake pedal depressor
• 1 steering wheel lock
• 2 instrument storage boards
• 4 wall pegs for wheel clamp storage

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
