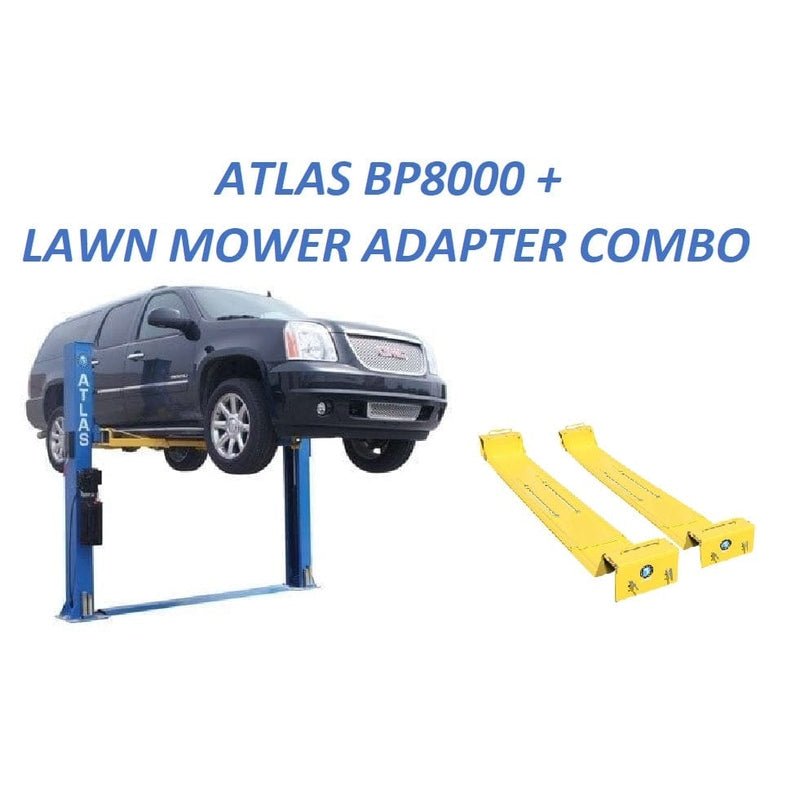

Atlas BP8000 2-Post Lift w/ LMA Combo

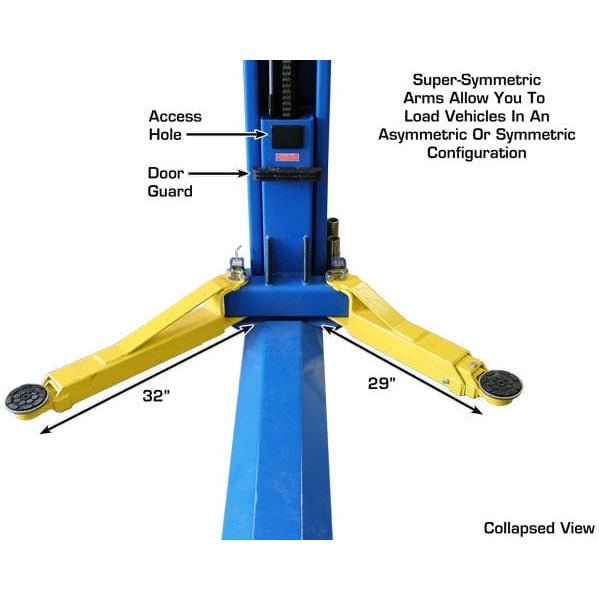

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.

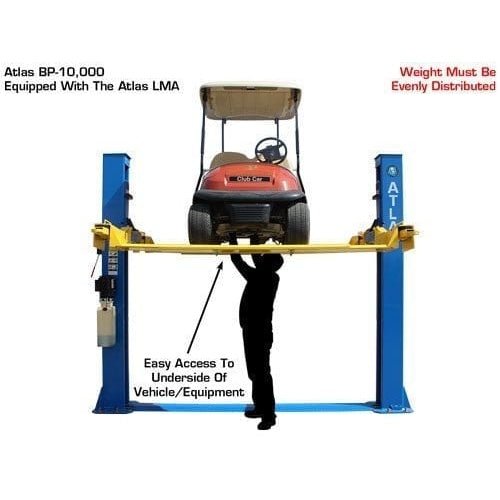

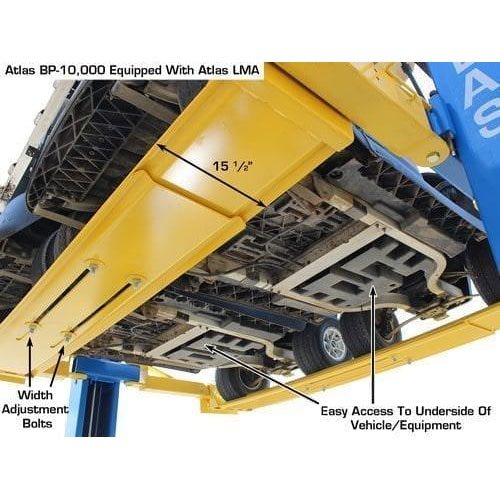

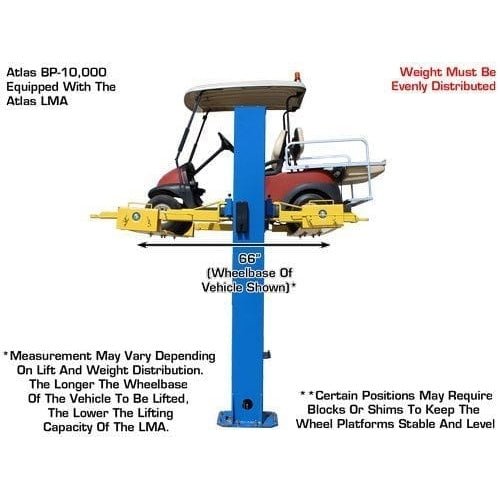

This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the 2-Post lift to better raise ATV’s, UTV’s, and lawn mowers. The LMA is adjustable along the length of the lifts arms to handle different wheelbase vehicles. The weight capacity of the LMA is dependent on the positioning of the adapter (higher when the plates are closer to the columns) and the balance of the weight of the vehicle being lifted.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.
Features
BP8000 2 Post Lift
- 8,000 lb. Capacity
- Hobbyist Grade Lift – Not intended for heavy commercial use
- Baseplate, Open-Top Style Lift

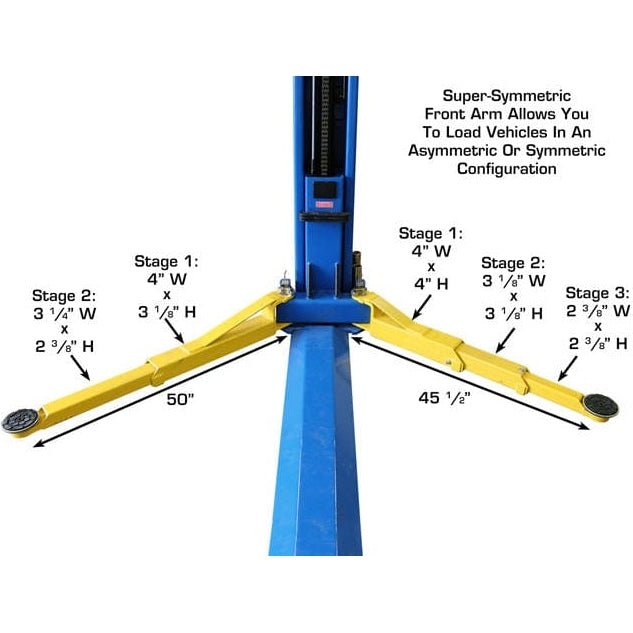

- 3-Stage front arms/2-Stage rear arms

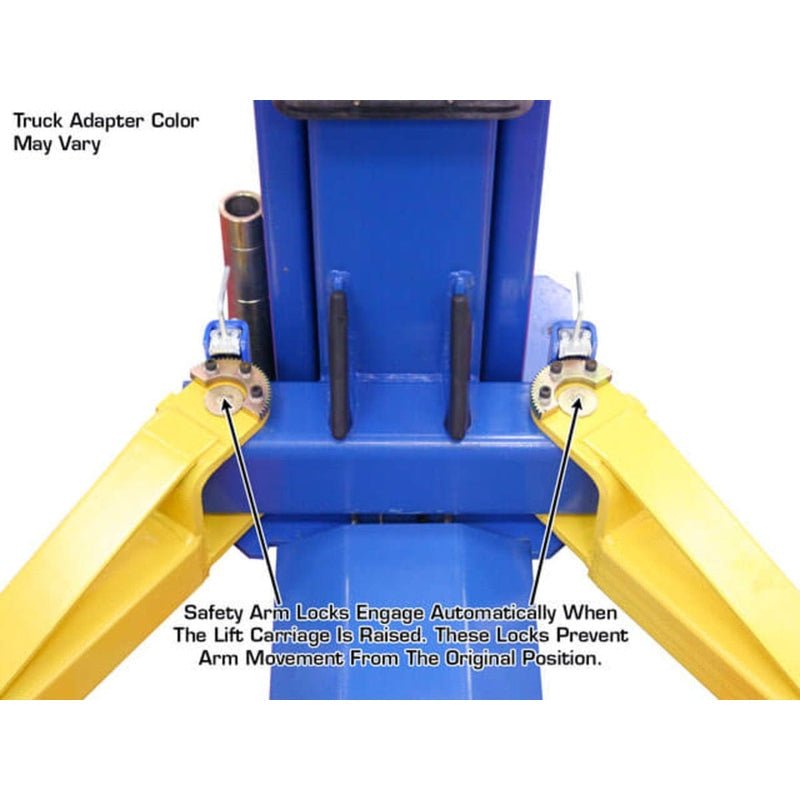

- Automatic Arm Restraints

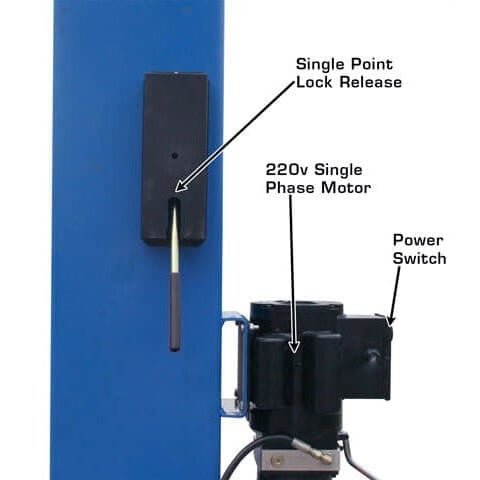

- Single-Point Lock Release
- Double Safety Lock System

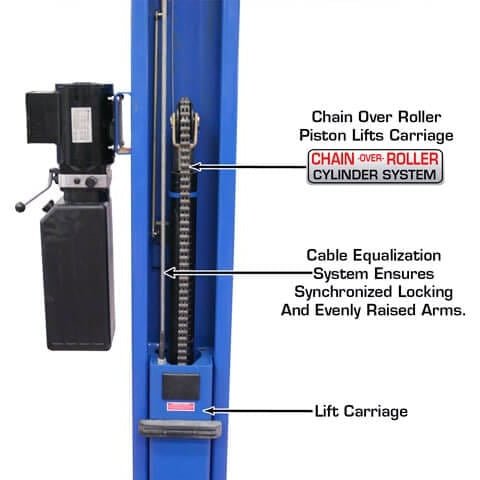

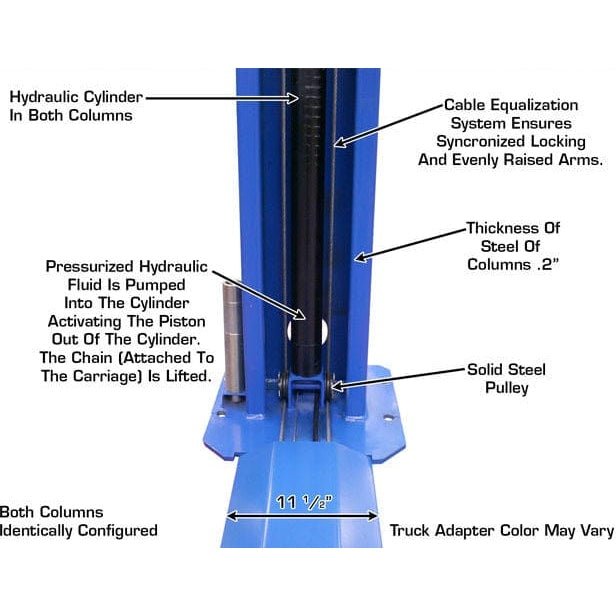

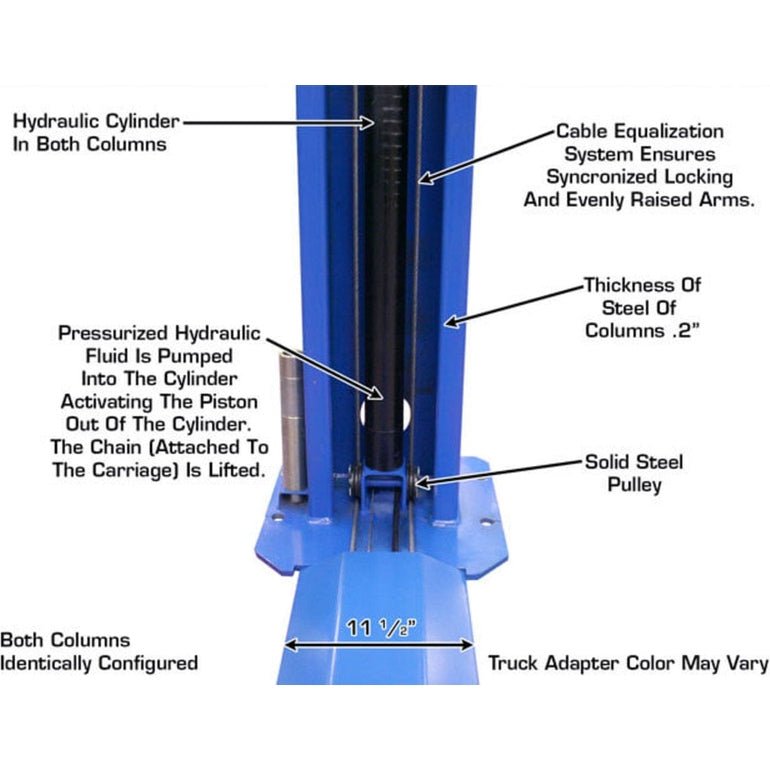

- Dual Hydraulic Chain-Drive Cylinders

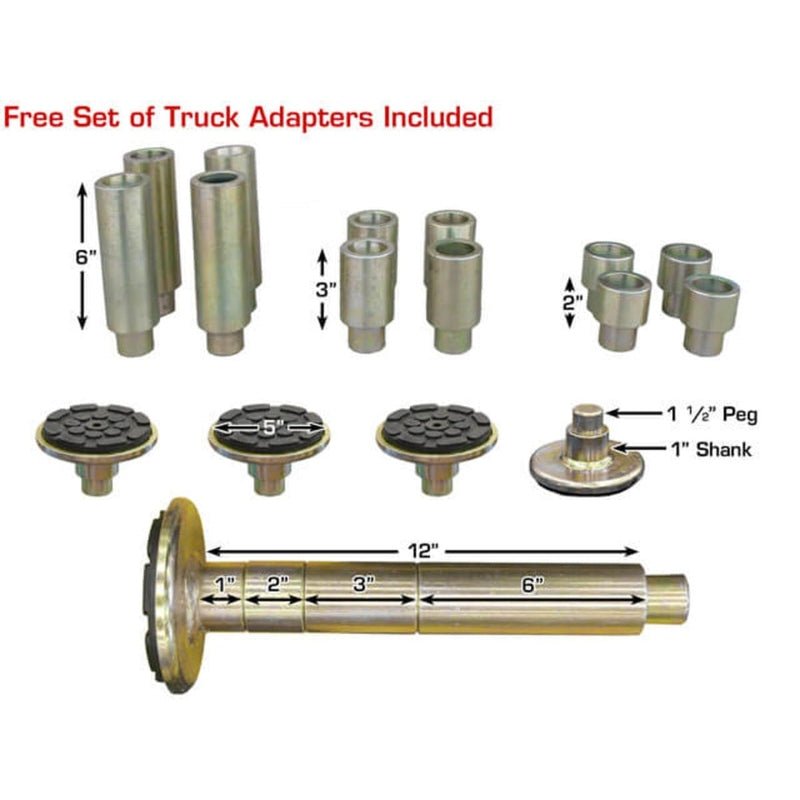

- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included

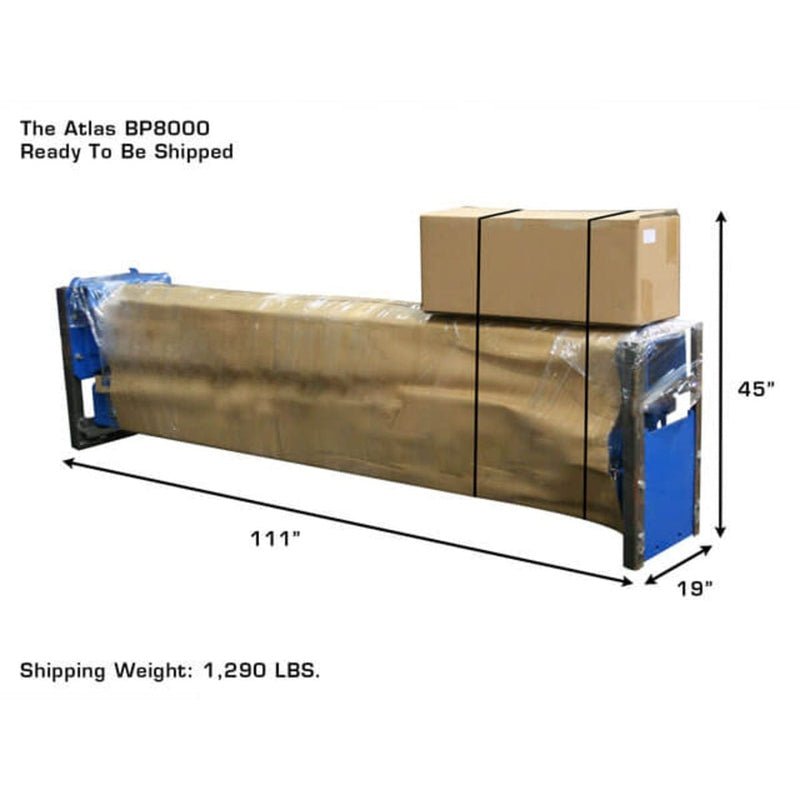

- Shipping Weight: 1,300 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

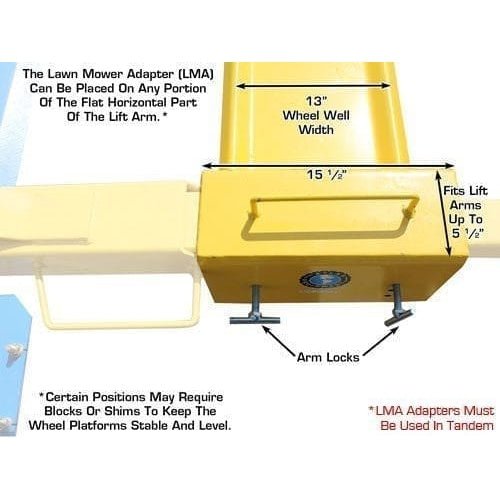

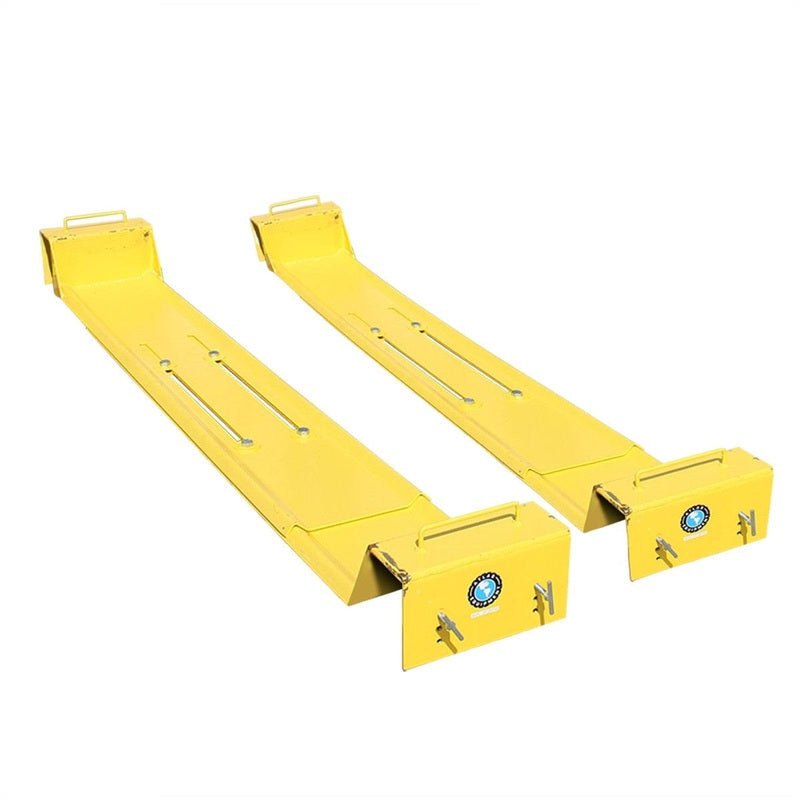

Lawn Mower Adapter
- “Lawnmower” Adapter for 2-Post Lifts
- Includes 4 plates and all hardware
- Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)
- Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)
- Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)
Specifications
Atlas® ATTD-BP8000 2 Post Lift

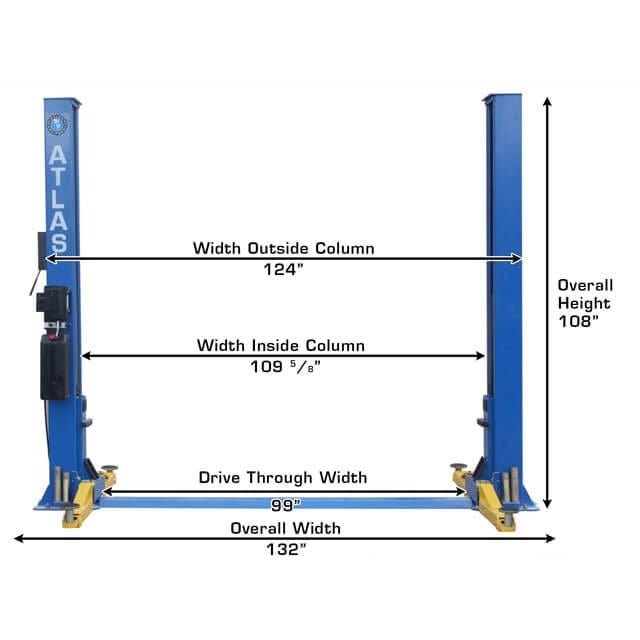

| Capacity | 8,000 LB. | |

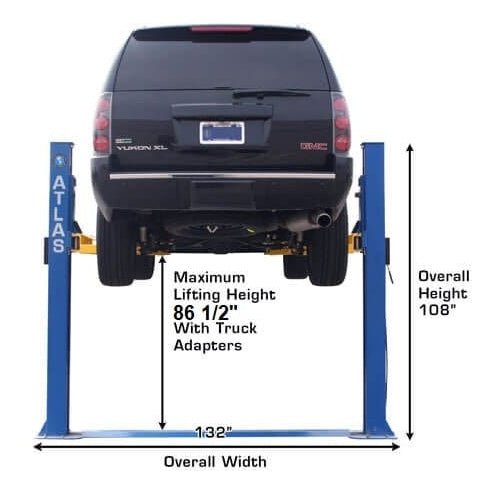

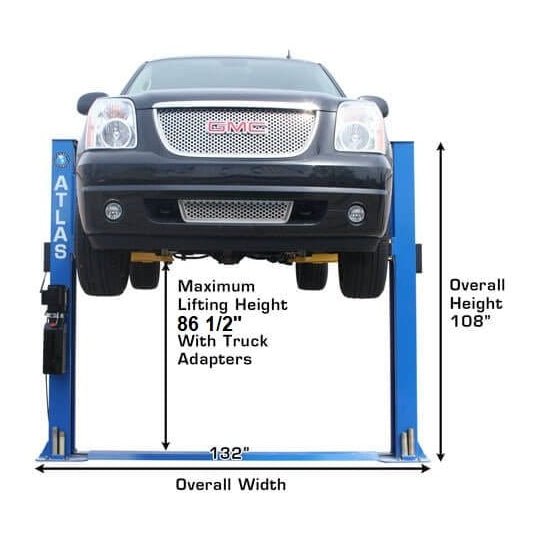

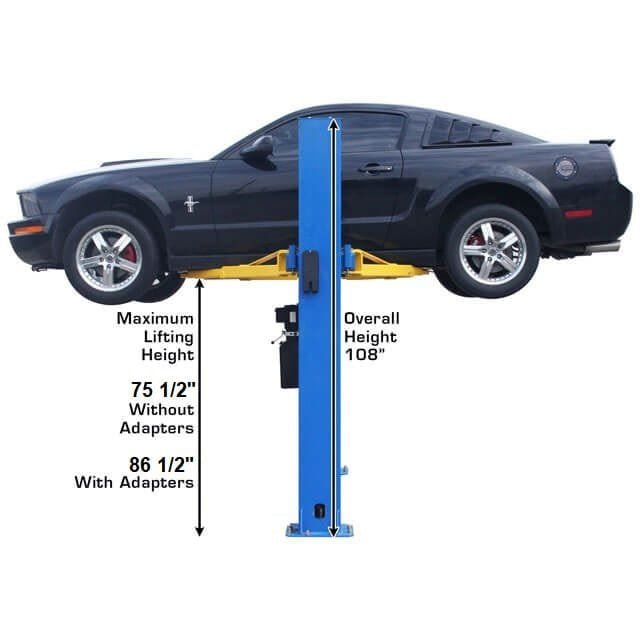

| Overall Height | 108″ (9’) | |
| Overall Floor Width | 132″ (11’) | |

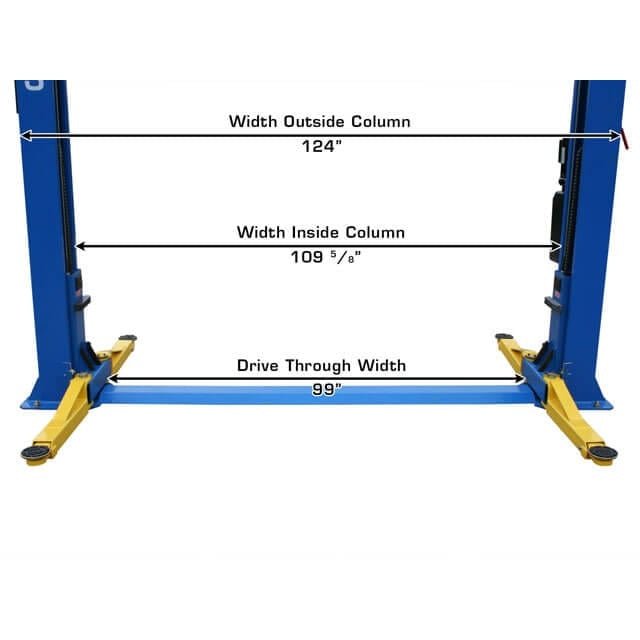

| Outside Column to Outside Column | 124″ (10’ 4″) | |

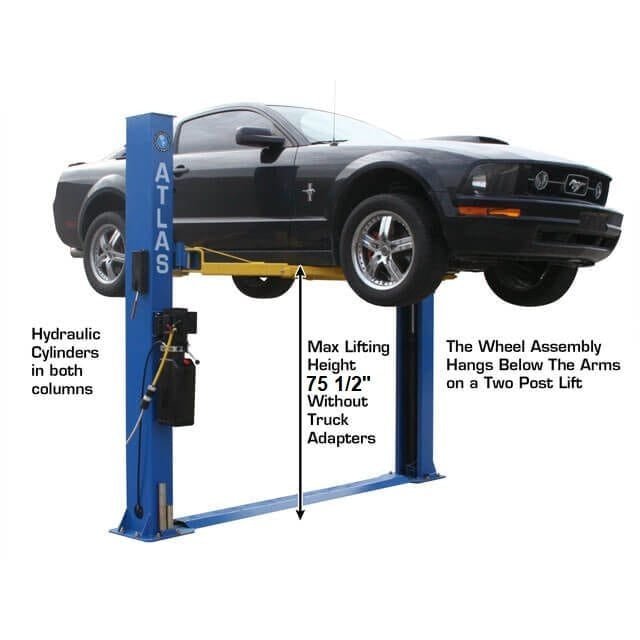

| Maximum Lift Height (Without Adapters) | 75 1/2″ | |
| Maximum Lift Height (With Adapters) | 86 1/2″ | |
| Minimum Arm Height | 4″ | |
| Inside Column | 109 1/8” (9’ 1 1/8”) | |

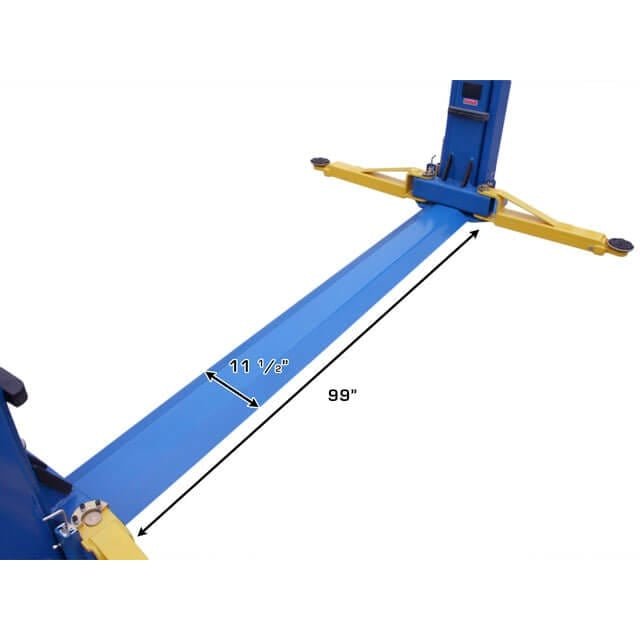

| Drive Thru | 99” (8’ 3”) | |

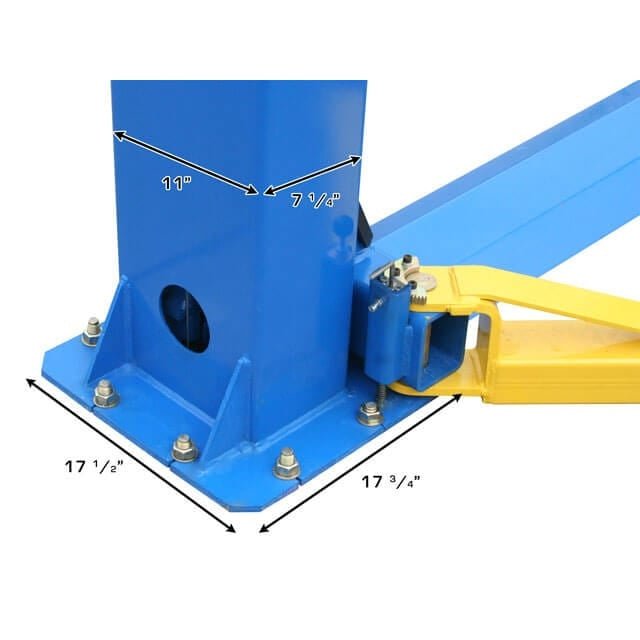

| Column Size | 7 1/4″ x 11″ | |
| Column Thickness of Steel | 6mm | |

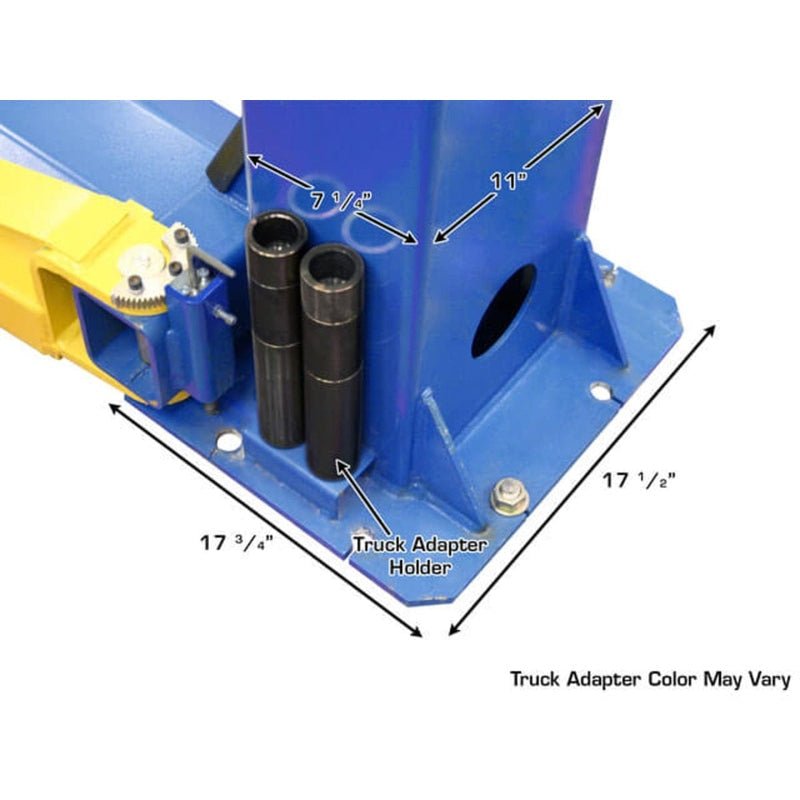

| Base Of Lift | 17 1/2″ x 17 3/4″ | |

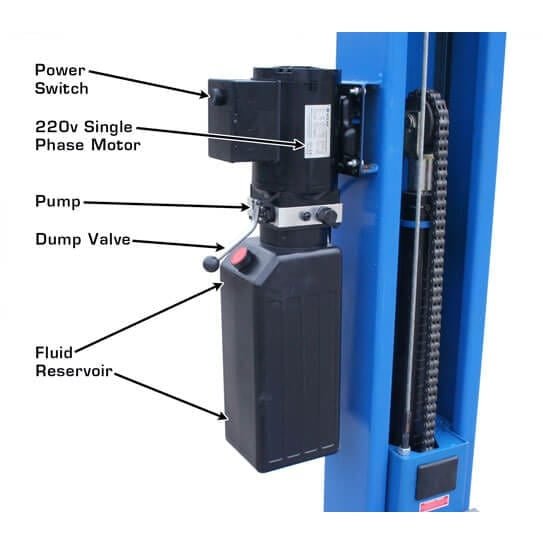

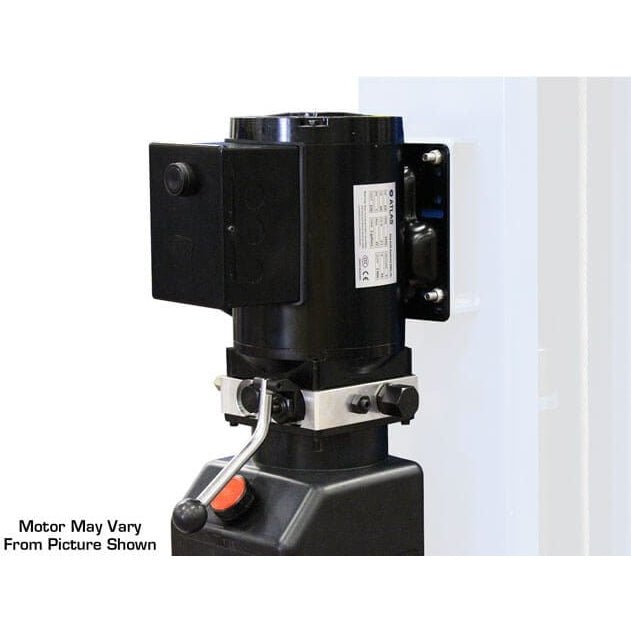

| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,300 LBS. | |

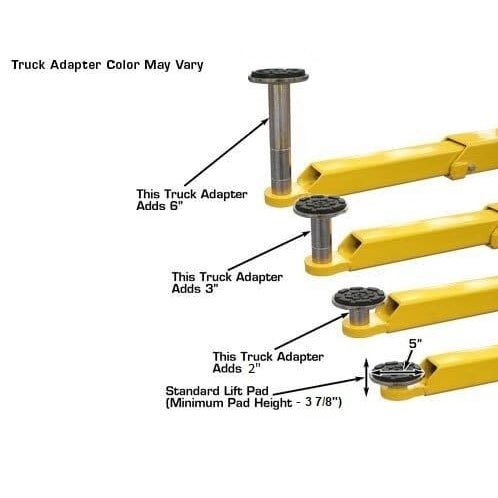

| Adapter Heights | 4 Each 2”, 3”, 6” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
| Requires a minimum of 4″ of concrete with a 3000 psi. rating | ||

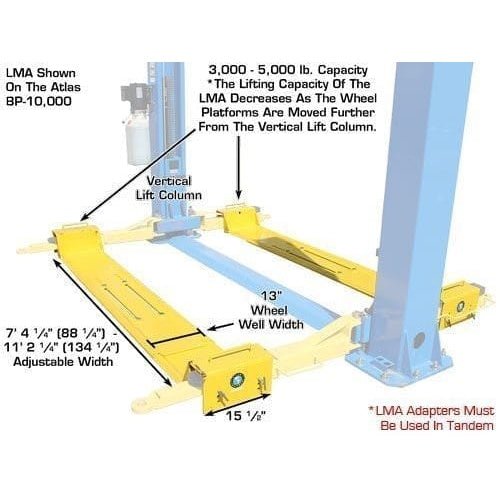

Atlas® Lawn Mower Adapter (LMA) Specifications
| Capacity | Up To 5,000 lbs. * |

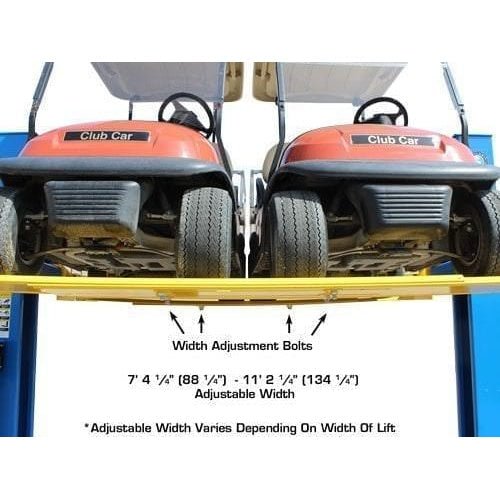

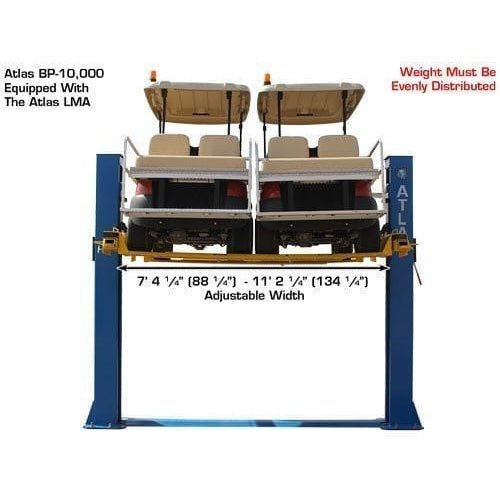

| Adjusts In Width | 8′ 11″ |
| Wheel Base | 32″ to 90″ ** |
| Wheel Well Width | 12″ |
| Thickness Of Steel | 1/4″ (2 Gauge) |

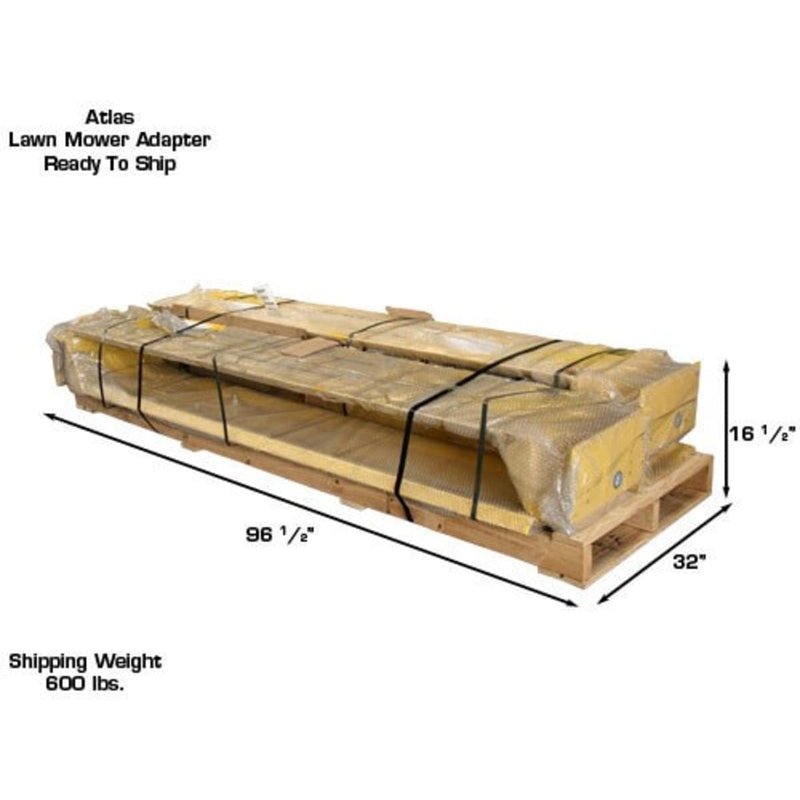

| Shipping Weight | 600 lbs. |
| LMA Consists Of Two Wheel Platforms. Lift not included. | |
| * May vary depending on lift and weight distribution. Longer wheel bases on vehicle to be lifted will lower the overall lifting capacity of LMA. | |
| ** May require blocks and/or shims at different positions on lift arms to keep wheel platforms stable and level. | |
Documents
Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
