Atlas Apex 9 9,000 lb 4-Post Lift with Two RJ45A Rolling Bridge Jacks Combo

Description

The Atlas Apex 9 4-post lift is a 9,000-lb capacity storage and service lift sized for full-size trucks, SUVs, and crew cabs. Bundled with two RJ45A 4,500-lb air/hydraulic rolling bridge jacks, this combo equips a home garage or commercial bay for both vehicle storage and full-service work — wheels-off, suspension, brakes, and tire rotations on the same lift.

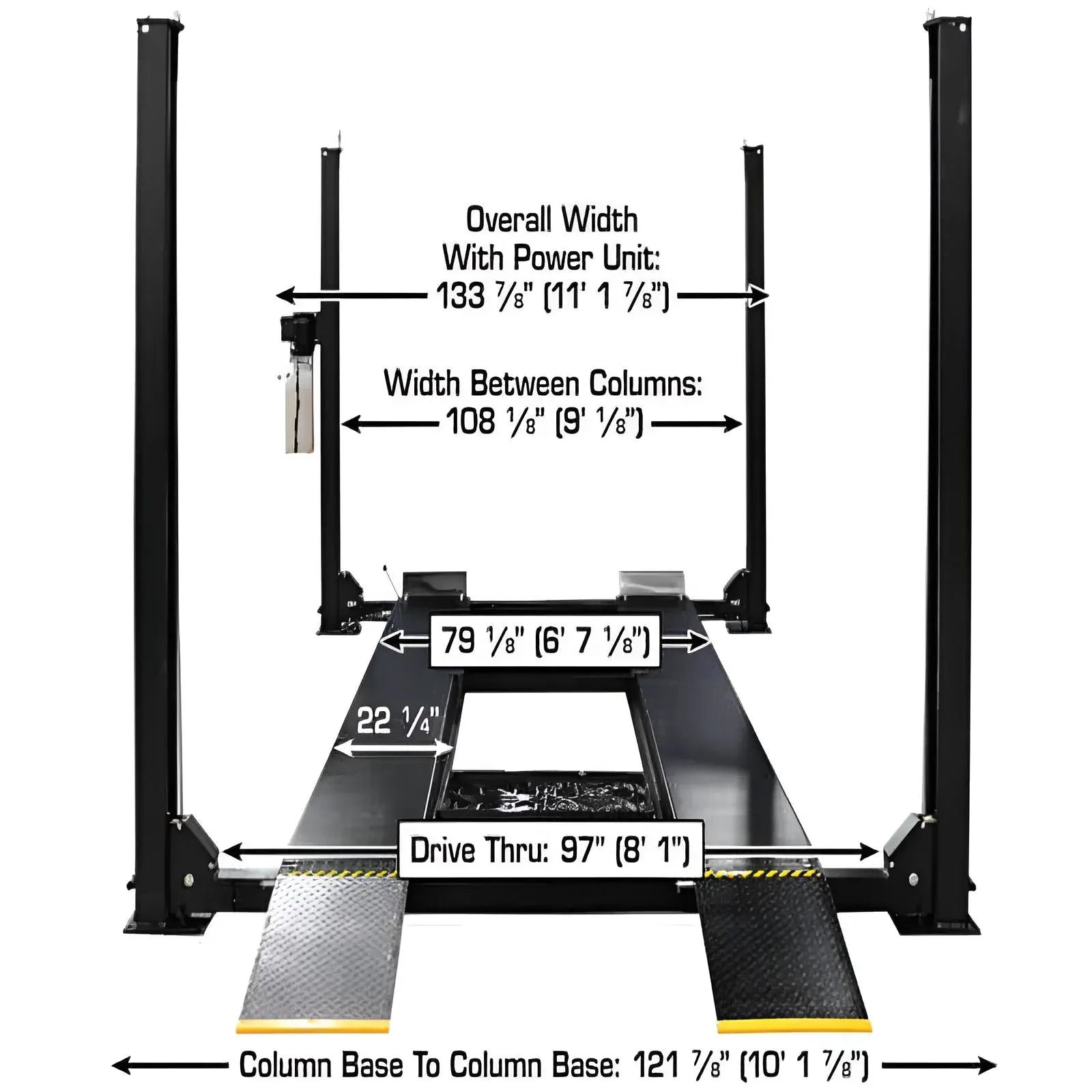

The Apex 9 is ALI Certified, with diamond-plated steel runways, a single-point lock release, and a 16-position lock ladder backed by a double-lock safety system. The lift reaches 86″ at the top of the runway with 81 1/4″ of clearance underneath, leaving room to park a vehicle below while another is raised overhead.

Power runs from a 110V motor on a 30-amp dedicated circuit, so the lift operates on standard residential service without a panel upgrade. Hydraulic oil is filled separately — 3 to 5 gallons of AW32 or AW46 is required and is not included.

Construction

Underneath the runways, the Apex 9 uses a 7/16″ cable system running over 6″ steel pulleys, with a 3 1/2″-diameter hydraulic cylinder and an in-line cylinder overflow restrictor valve. The runways are diamond-plated for grip and finished in powder coat.

RJ45A Rolling Bridge Jacks

Each RJ45A is a 4,500-lb air/hydraulic rolling bridge jack that rides along the runways of the Apex 9 to lift wheels off the deck for service. Operation is air/hydraulic on 70–115 PSI shop air (external air supply not included), and the scissor mechanism delivers level lift with multiple safety lock positions.

Lift arms extend from 30″ to 60 1/2″ pad-to-pad and fit runway openings between 36″ and 54″. With the supplied chrome adapters, the jack reaches 18 1/2″ of lifting height; without adapters, 11 3/4″. Nylon rollers and a steel wheel underneath keep the jack moving smoothly down the runway. A 4-piece truck adapter set is included with each jack for raising larger vehicles that need additional pad height.

Features

Atlas Apex 9 4-Post Lift

• 9,000-lb lifting capacity
• ALI Certified — independently tested and validated
• 86″ max lifting height at top of runway (7′ 2″)
• 81 1/4″ clearance under runways (6′ 9 1/4″)
• Diamond-plated steel runways
• Single-point lock release
• Lock ladder with 16 locking positions and double lock safety system
• Powder-coat finish
• 110V operation on 30-amp breaker
• Free-standing portable design
• 5-year structural warranty / 2-year hydraulic warranty (parts only)

Two RJ45A Rolling Bridge Jacks (Included)

• 4,500-lb capacity per jack
• Air/hydraulic operation on 70–115 PSI shop air
• Scissor mechanism for level lift
• Multiple safety lock positions
• Compact low-profile body for runway clearance
• Adjustable lift arms (30″ to 60 1/2″ pad-to-pad)
• Fits runway openings 36″ to 54″
• Nylon rollers and steel wheel for smooth movement
• 4-piece truck adapter set included with each jack
• 1-year parts warranty

What’s Included

• Atlas Apex 9 4-post lift
• Two RJ45A 4,500-lb rolling bridge jacks
• Steel approach ramps
• Steel jack tray
• Four plastic drip trays
• Two rubber wheel chocks
• Two 4-piece truck adapter sets (one per rolling jack)
• Two 1 1/4″ and two 5″ chrome adapters per jack, with 1 3/8″ lift pads

Specifications

Shipping & Logistics

This combo ships via freight on multiple pallets — the Apex 9 lift in a 17-foot crate at 2,975 lbs, and each RJ45A in a 39 1/2″ x 23 1/2″ x 12 1/2″ crate at 380 lbs. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.

Documents

Atlas Apex 9 Product Manual (PDF)

Additional technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
