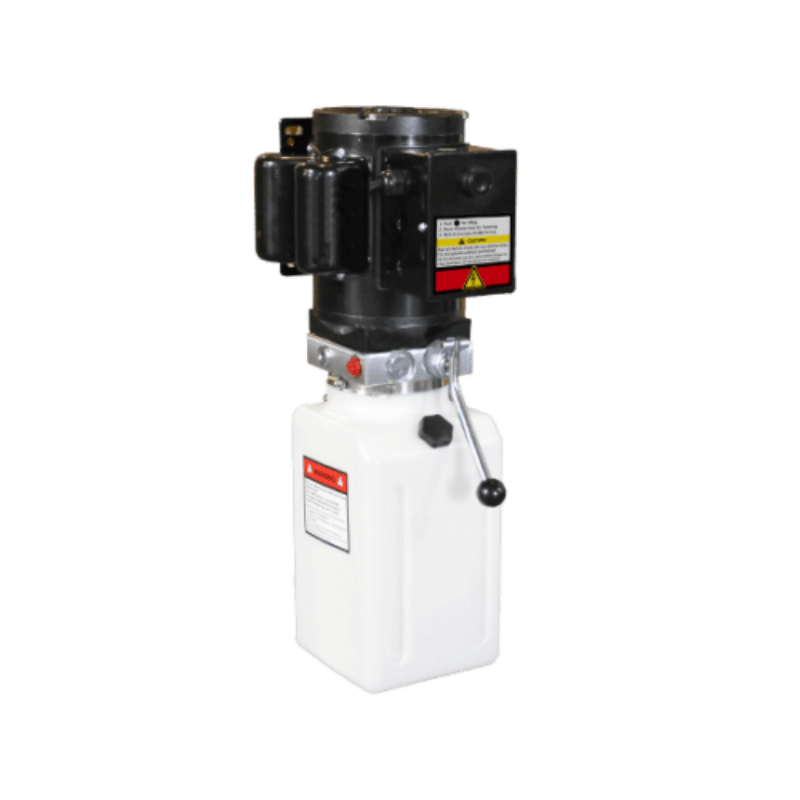

AMGO 071104 220V/60HZ Single Phase Manual Power Unit

AMGO 071104 220V/60HZ Single Phase Manual Power Unit

Small footprint. Serious push. The AMGO 071104 is a compact 220V single-phase power unit engineered to deliver dependable hydraulic power where space is tight and performance still matters. It’s an ideal match for single-post lifts, parking/storage systems, and a wide range of car lifts that need clean, consistent pressure—without oversized hardware hanging off the column.

Inside, you’ll find the same shop-ready fundamentals that keep lifts working day after day: a manual Detrol release valve for straightforward lowering control, a high-pressure gear pump (2.1cc/r) capable of reaching up to 25MPa, and a plug-in relief valve set to 21MPa to keep operation steady and predictable. Add an ETL-certified 220V/60Hz setup, a durable 6L HDPE oil tank, and oil outlets on both sides, and you’ve got a power unit that installs easily, runs confidently, and stays service-friendly for the long haul.

Compatible AMGO Lift Models

407-P | 407-HP | 408-P | 408-HP | 408-HPX | SL-7 | SML-7 | SPL-6 | MR06 | MRP06 | LR06 | LR10 | MRL07

Key Highlights

• ETL Certified Power: 220V single-phase, 60Hz AC—built for professional environments.
• Compact, Lift-Ready Design: Purpose-built for single-post lifts, parking lifts, storage lifts, and more.
• High-Pressure Gear Pump: 2.1cc/r displacement with peak pressure capability up to 25MPa.
• Relief Valve Set to 21MPa: Plug-in high-pressure relief valve for controlled, consistent performance.

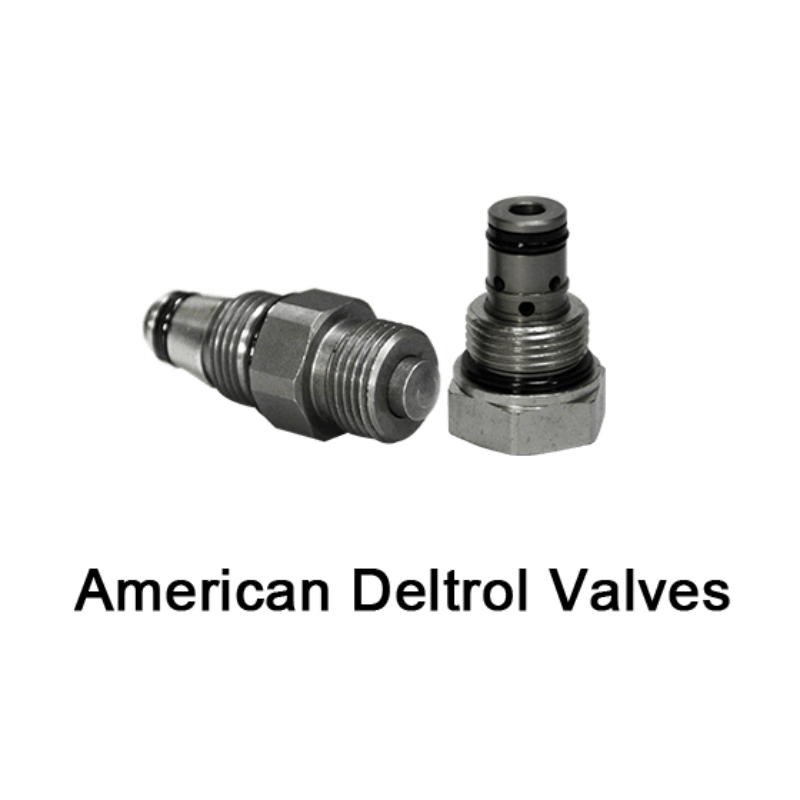

• Manual Detrol Release Valve: Straightforward lowering control you can feel and trust.
• Adjustable Reflux Speed: Fine-tune return speed via throttle valve for smoother operation.
• 6L HDPE Oil Tank: High-density polyethylene reservoir designed for durability and long service life.

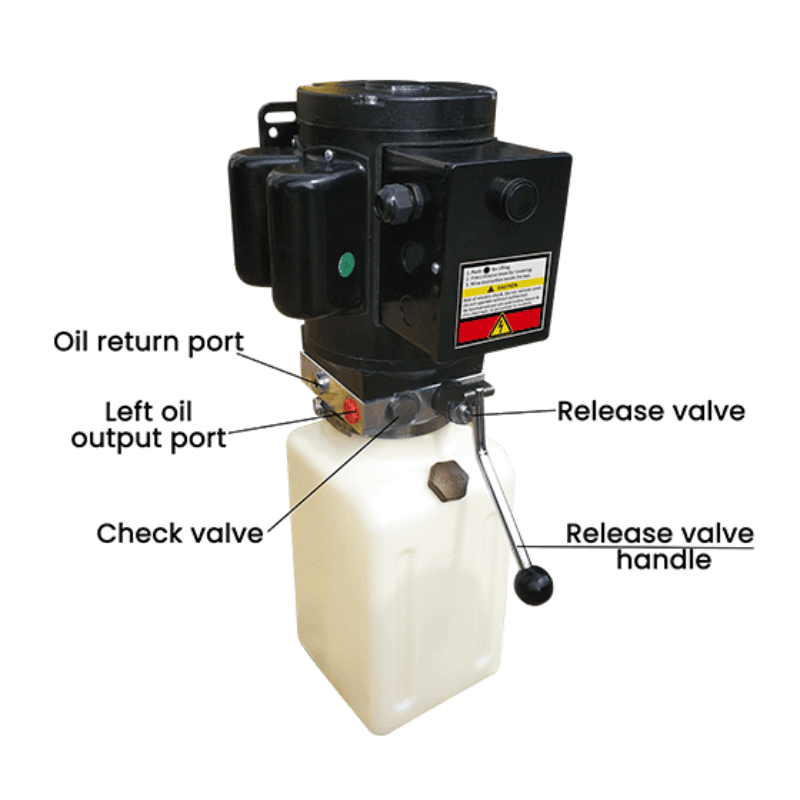

• Flexible Installation: Oil outlet provided on both sides for cleaner routing and easier retrofits.
• Built for Longevity: Designed to stay maintainable and dependable over years of daily cycles.

Where This Power Unit Fits Best

• Single-post lifts where compact size and reliable pressure are non-negotiable
• Parking and storage lifts that need consistent lifting and controlled lowering
• Installations that benefit from left/right port flexibility for hose routing and cleaner layouts

Specifications

Bottom Line

The AMGO 071104 is the smart choice when you need compact packaging without giving up real hydraulic muscle. It’s powerful, controlled, ETL-certified, and install-friendly—built to keep your single-post, parking, or storage lift operating smoothly, cycle after cycle, with minimal fuss.
